Inspection Procedure
- INSPECT FUSE (ECU-IG)

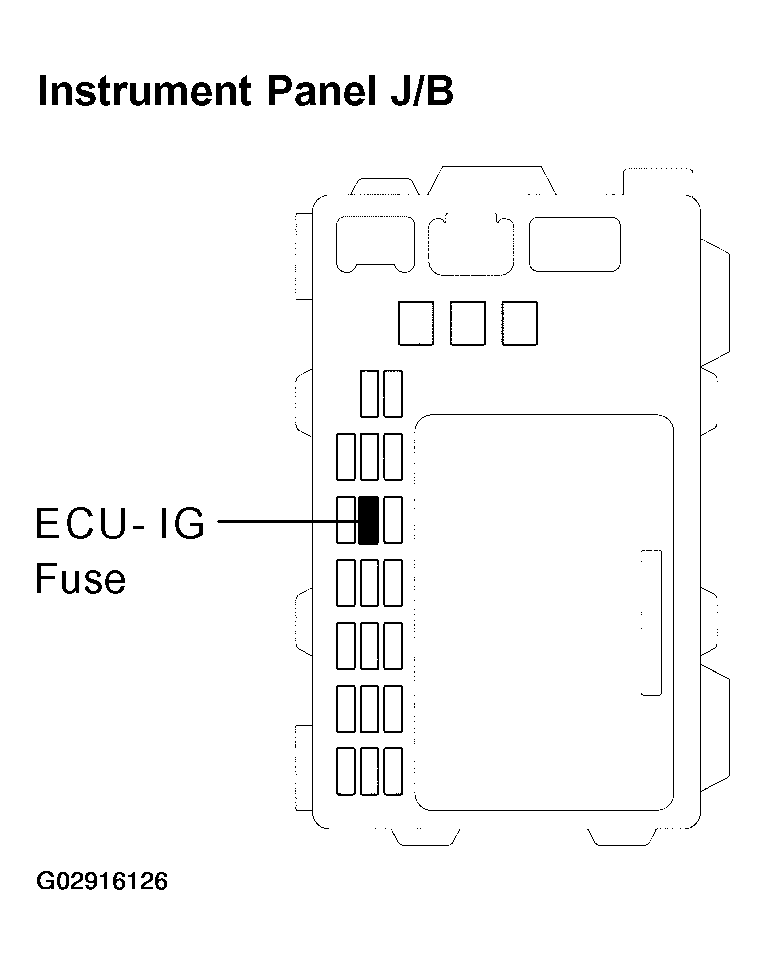

- Remove the ECU-IG fuse from the instrument panel J/B.
- Check the continuity of the ECU-IG fuse.
OK: Continuity
- NG: REPLACE FUSE
- OK: GO TO NEXT STEP.
- INSPECT TERMINAL VOLTAGE (B)
- Remove the cruise control ECU assy with connector still connected.
- Turn the ignition switch to ON.

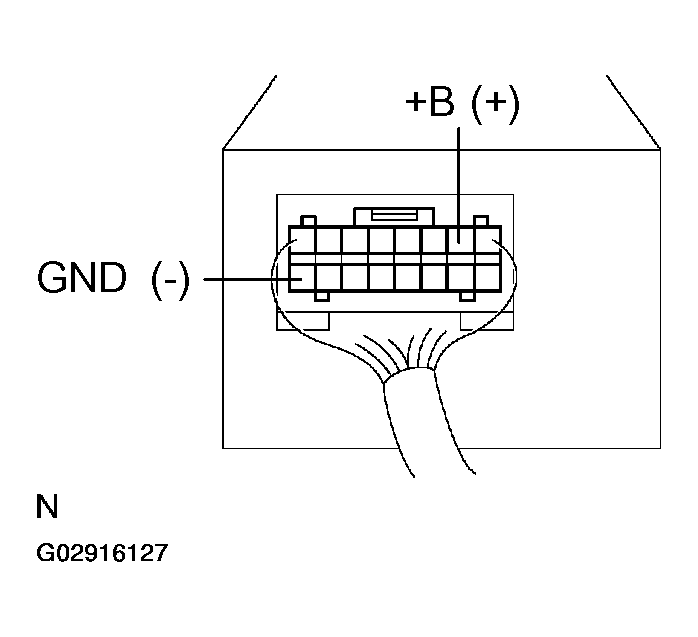

- Measure voltage between terminals 2 (B) and 16 (GND) of the cruise control ECU assy connector.
OK:
Voltage: 10 - 16 V
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
- NG: GO TO NEXT STEP.
- CHECK HARNESS AND CONNECTOR (BETWEEN CRUISE CONTROL ECU ASSY AND BODY GROUND)

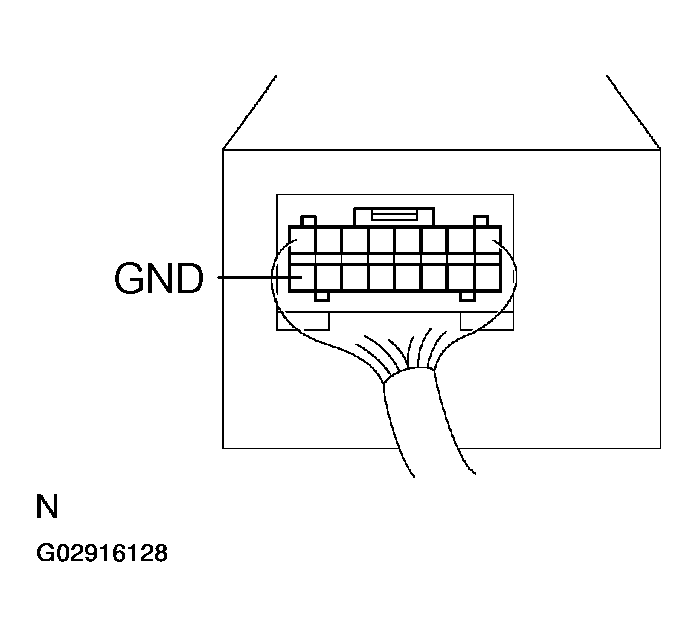

- Measure resistance between terminal 16 (GND) of the cruise control ECU assy connector and body ground.
OK:
Resistance: Below 1 Ω
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: CHECK AND REPAIR HARNESS AND CONNECTOR BETWEEN CRUISE CONTROL ECU ASSY AND BATTERY
- Measure resistance between terminal 16 (GND) of the cruise control ECU assy connector and body ground.
