Disc Player Changer: Replacement

NOTE:

COMPONENTS

  1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  OVERHAUL  )
  2. REMOVE FRONT SEAT (PASSENGER SEAT POSITION) (See  OVERHAUL  )
  3. REMOVE DISC PLAYER CHANGER
    1. Disconnect the connector.
    2. Remove the 3 bolts and disc player changer.

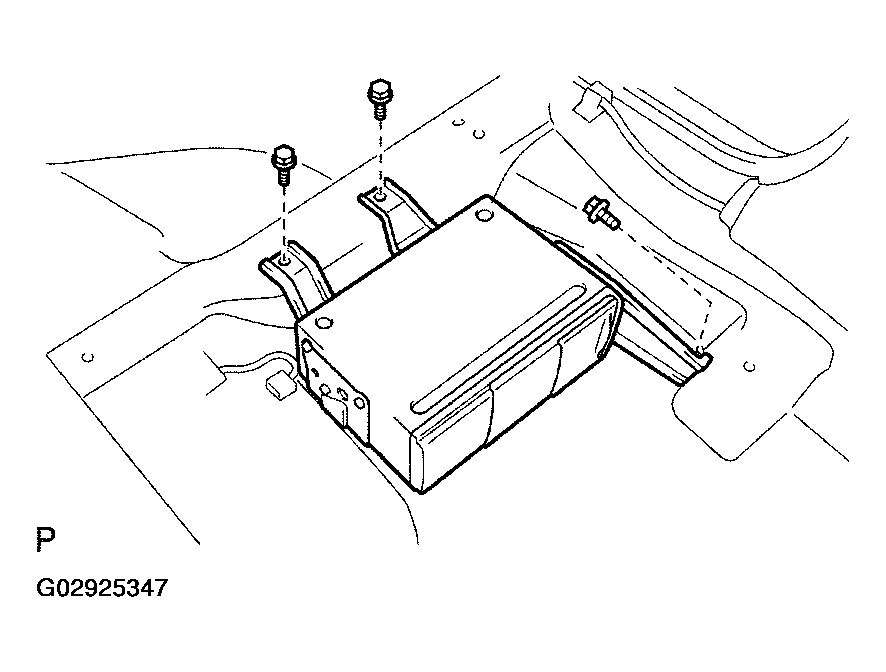

      Fig 1: Removing Disc Player Changer Bolts
      G02925347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT SEAT (PASSENGER SEAT POSITION) (See  OVERHAUL  )
