Inspection Procedure

  1. TAKE APPROPRIATE MEASURES ACCORDING TO CAUTION SCREEN
    1. Take appropriate measures according to caution screen.

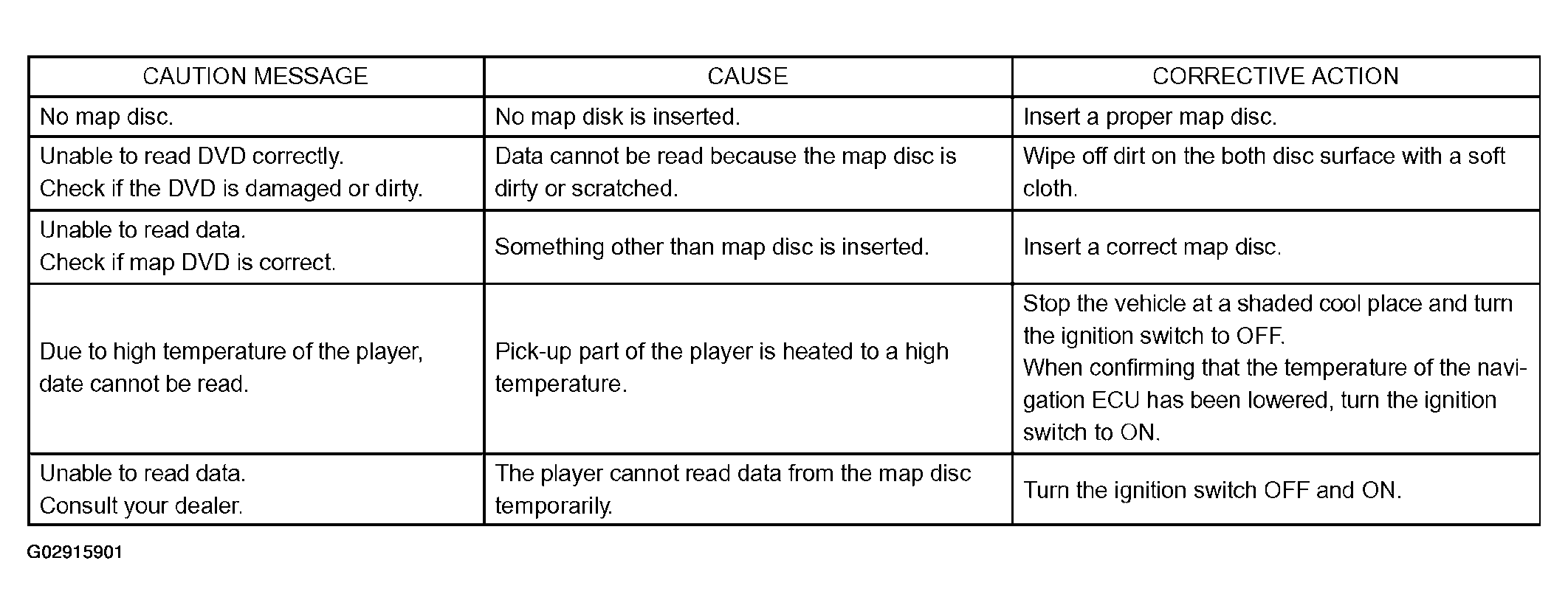

      Fig 1: Identifying Caution Messages, Causes & Corrective Actions
      G02915901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      STANDARD: Correctly functions.

    1. OK: NORMAL
    2. NG: Go to next step.
  2. REPLACE CD-ROM DISC KIT
    1. NG: CHECK AND REPLACE NAVIGATION RECEIVER ASSY
