Installation (SC300)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2000 Lexus SC 400, 2000 Lexus SC 300, 2000 Lexus RX 300, 2000 Lexus LX 470, and 2000 Lexus LS 400. However, it is still accessible from the selected car via links, so may be relevant.

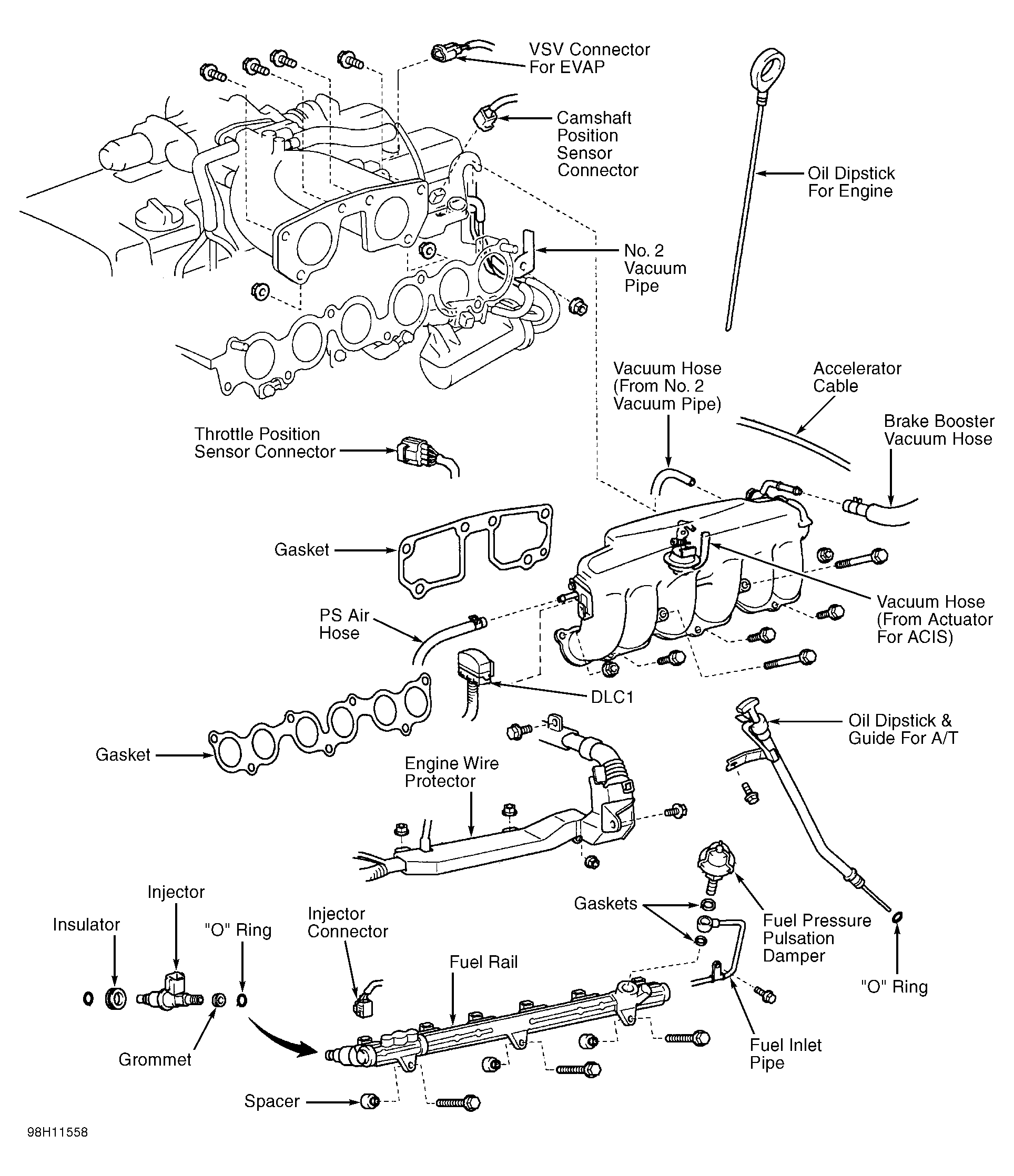

- Install NEW brake booster union and air intake chamber gaskets. Install NEW intake manifold gasket. Route water by-pass hose between No. 2 and 3 intake ports of manifold and fuel rail. Install NEW engine oil dipstick guide "O" ring.
- Apply soapy water to "O" ring, before installation. Install NEW A/T oil dipstick guide "O" ring. To complete installation, reverse removal procedure. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS .
