On-Vehicle Inspection: Notes

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT REFRIGERANT VOLUME
1. Check the sight glass of the cooler unit refrigerant liquid pipe E.
  1. Set the vehicle according to the conditions below.

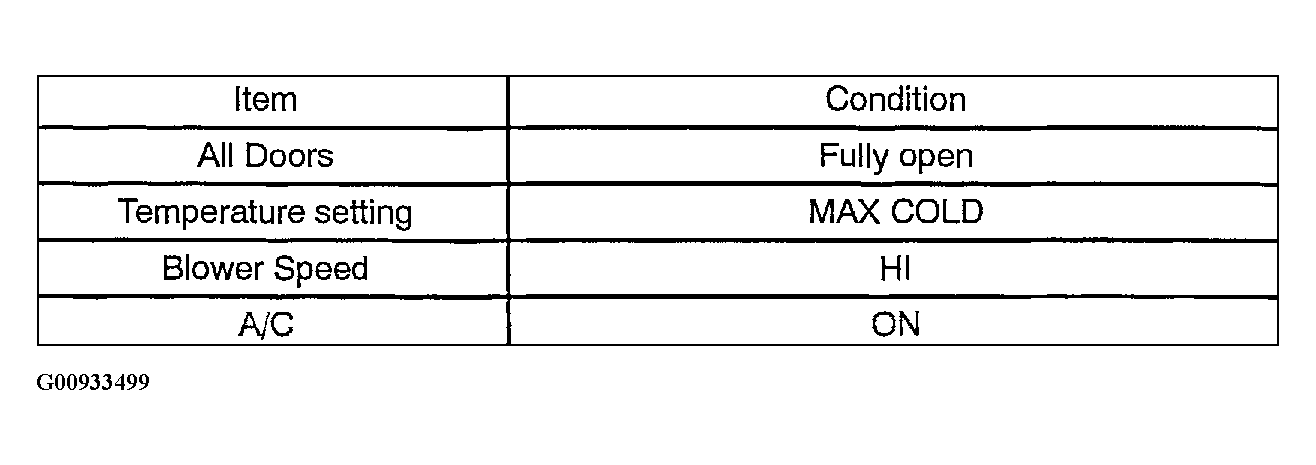

    Fig 1: Conditions Reference Chart For Testing Sight Glass
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Check the sight glass under these conditions.

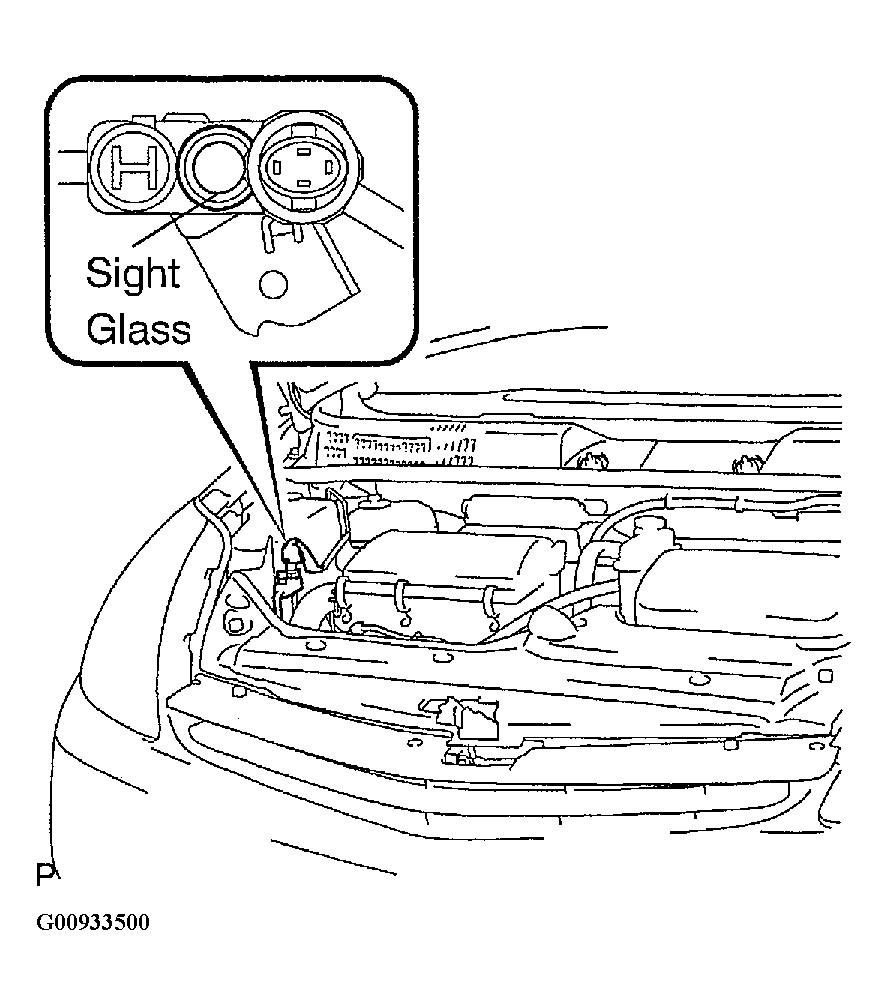

Fig 2: Checking Sight Glass Of Cooler Unit Refrigerant Liquid Pipe E
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

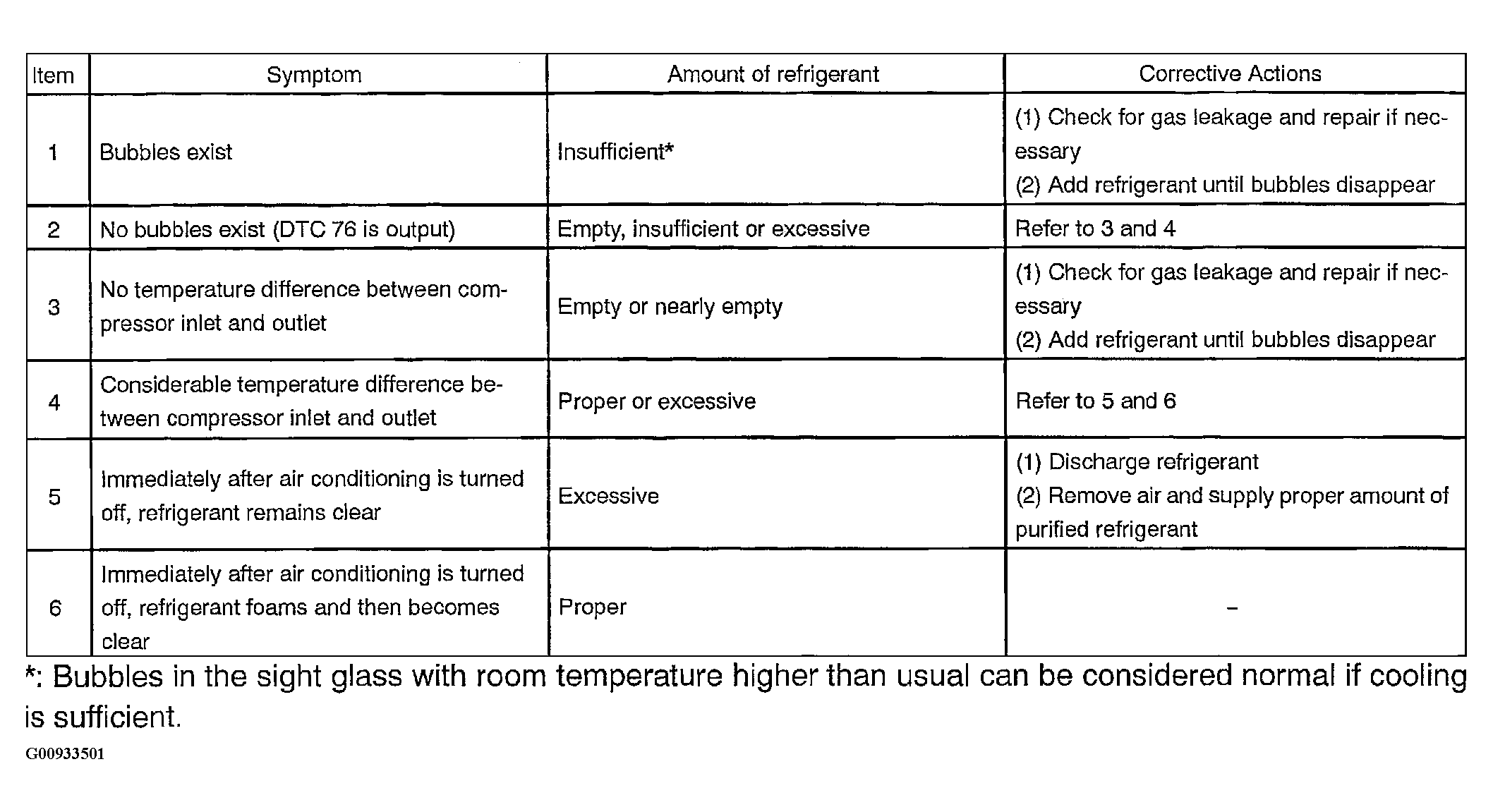

Fig 3: Sight Glass Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET
1. This is a method in which the trouble is located by using a manifold gauge set. Read the manifold gauge pressure when these conditions are established.
  Test conditions:
  - Temperature at the air inlet with the switch set at RECIRC is 30 to 35°C (86 to 95°F)
  - Blower speed control switch at "HI" position
  - Temperature control switch at "MAX COLD" position
  - A/C switch ON
  - Fully open doors
  1. The refrigeration system functions normally
    Gauge reading:
    1. Low pressure side: 0.15 to 0.25 MPa (1.5 to 2.5 kgf/cm ² )
    2. High pressure side: 1.37 to 1.57 MPa (14 to 16 kgf/cm ² )

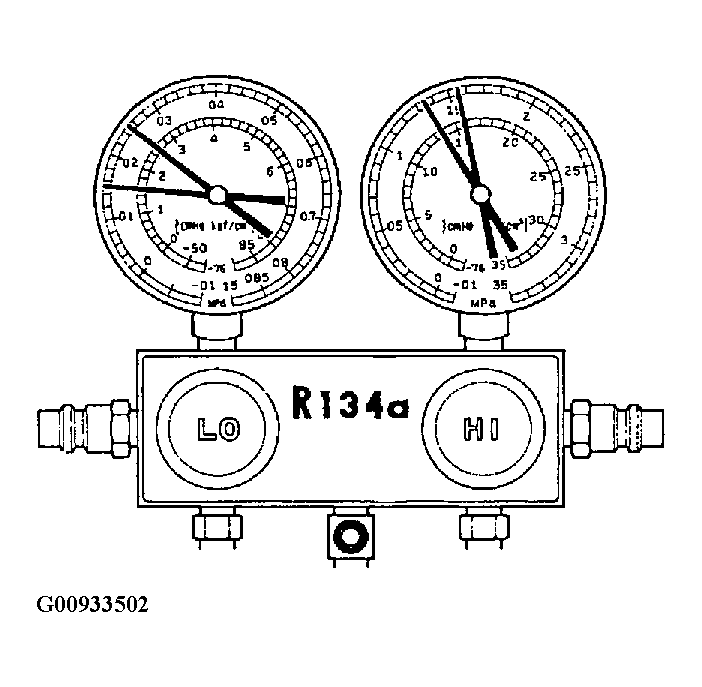

    Fig 5: Correct Pressure Display
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

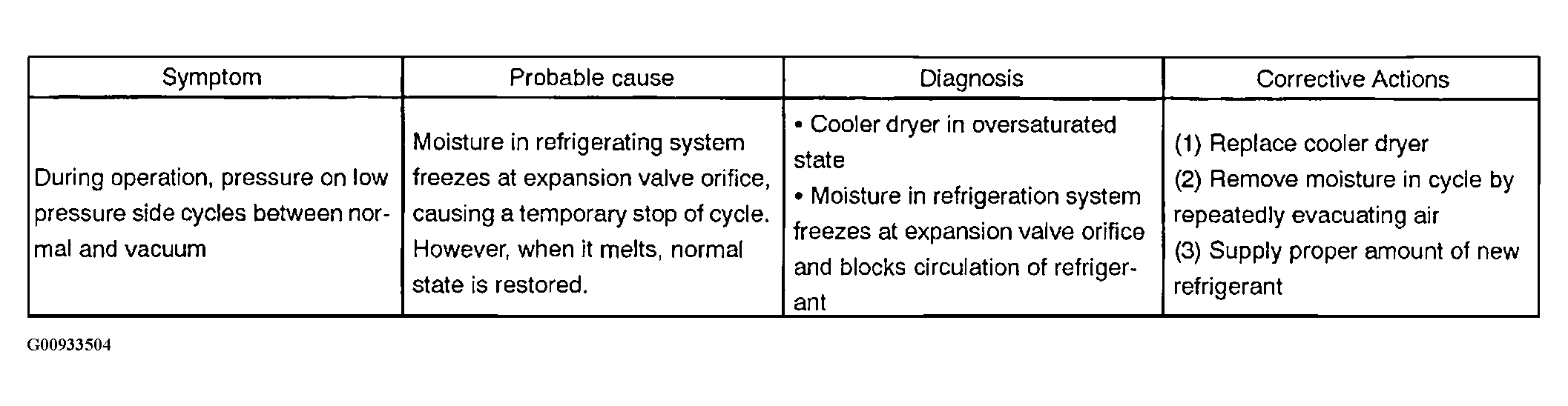

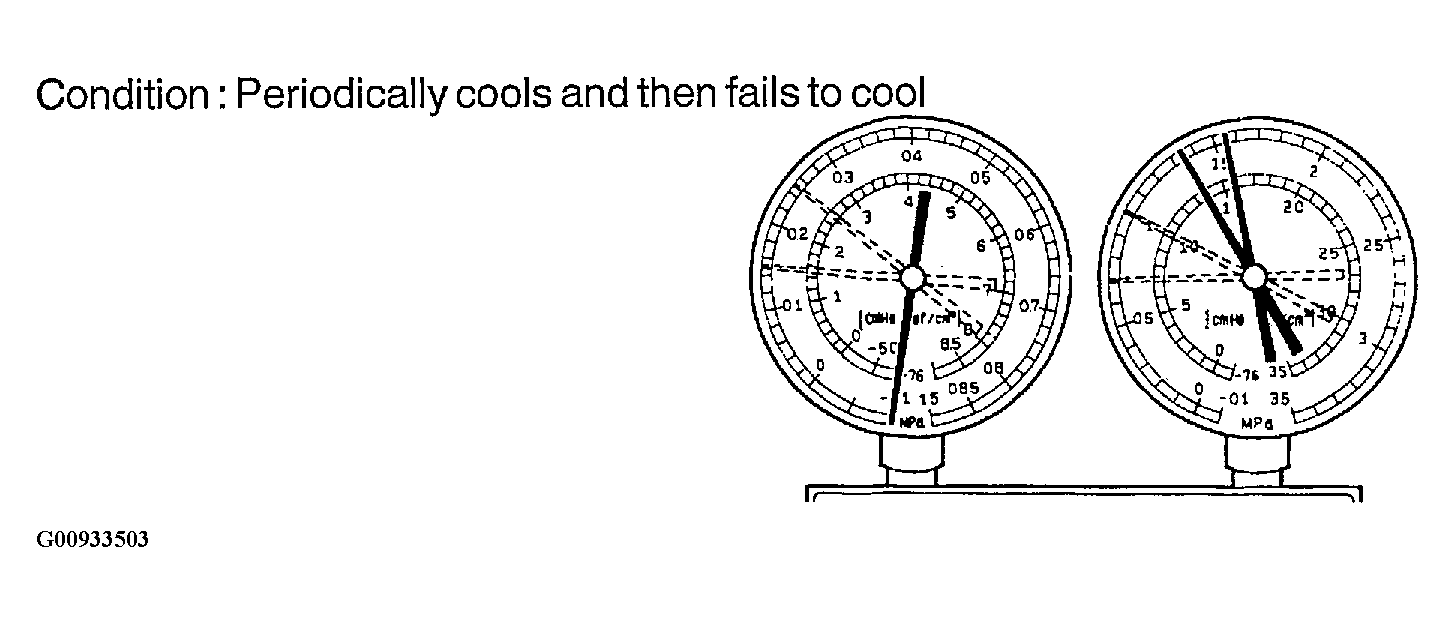

  2. Moisture present in refrigeration system

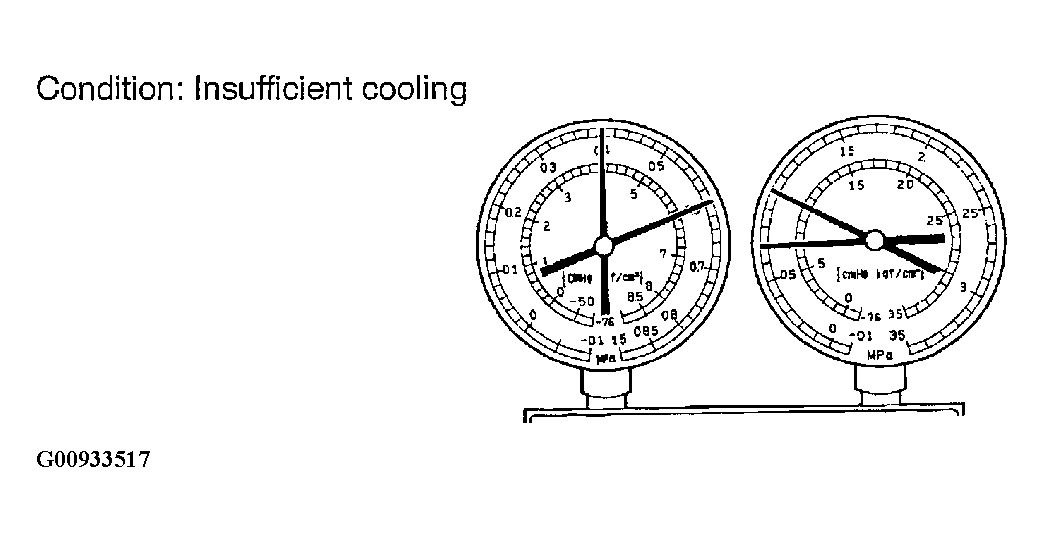

    Fig 6: Checking Insufficient Cooling
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

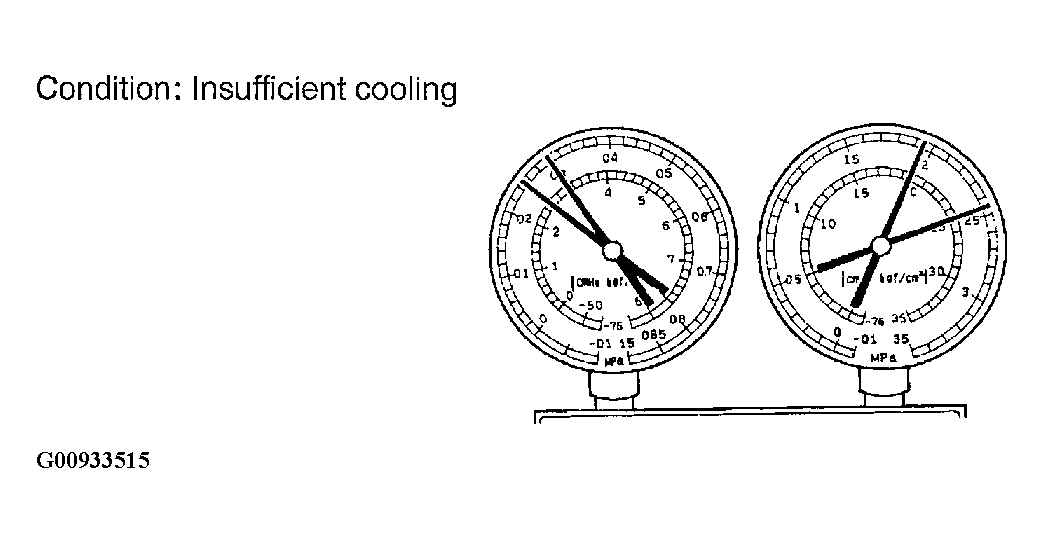

  3. Insufficient cooling

    Fig 7: Identifying Poor Circulation
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

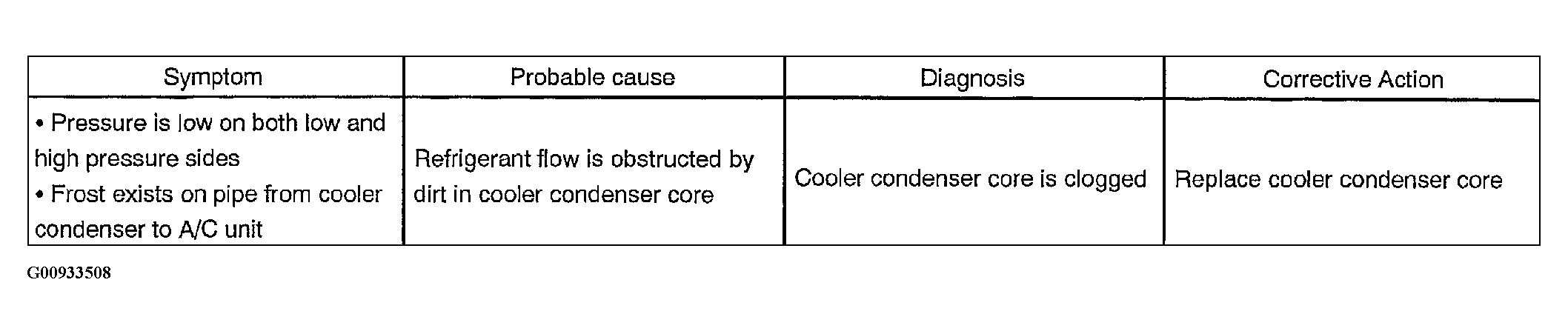

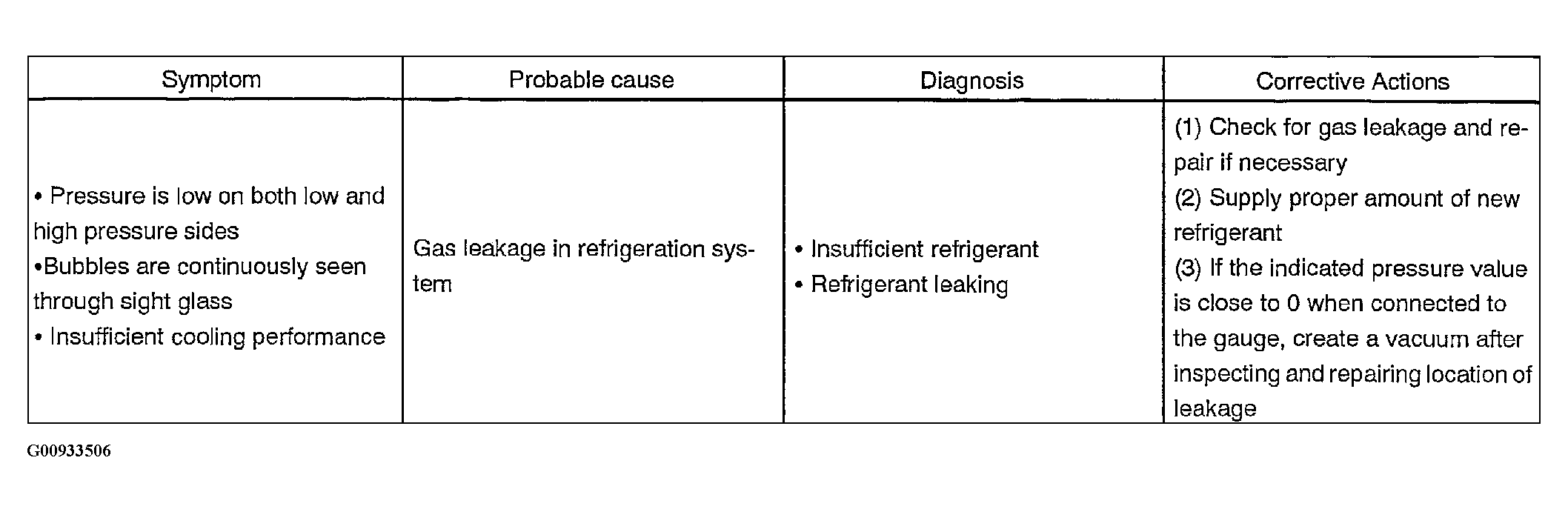

    Fig 8: Poor Circulation Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

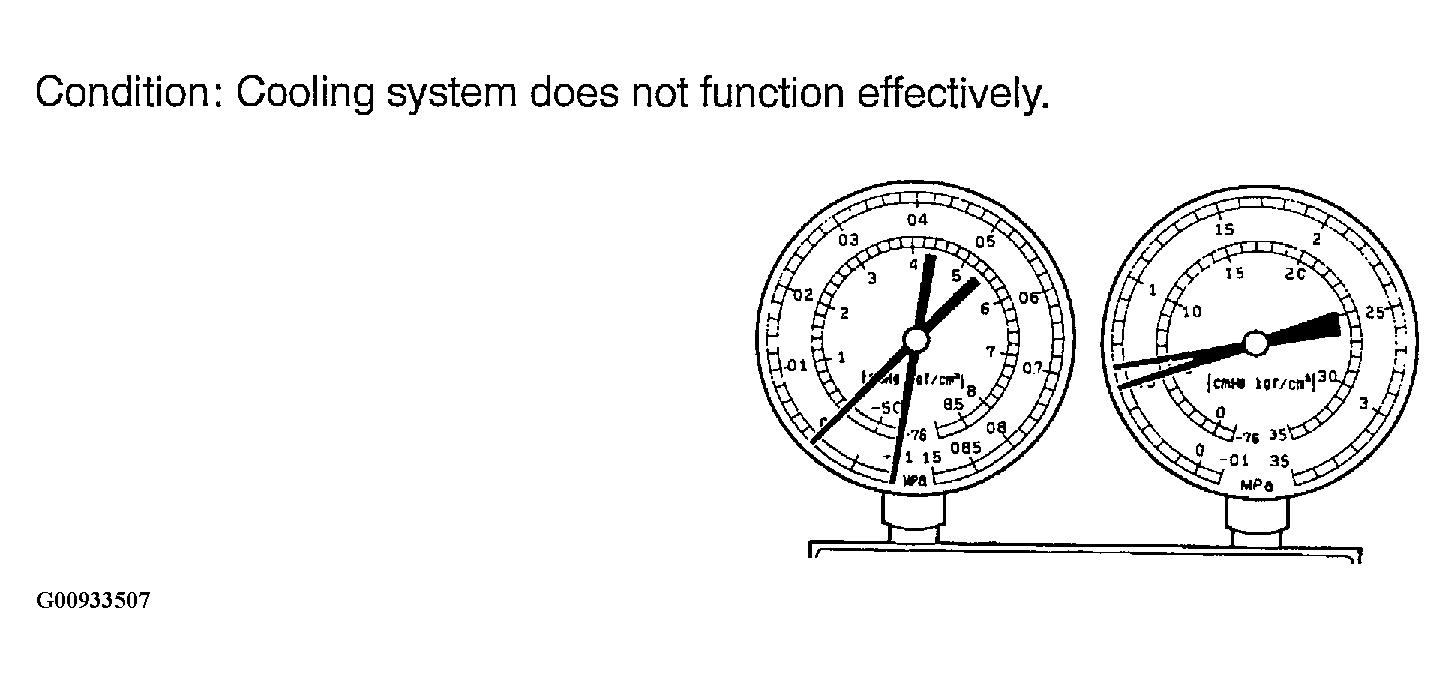

  4. Poor circulation of refrigerant

    Fig 9: Identifying Poor Circulating Coolant
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 10: Poor Circulation Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

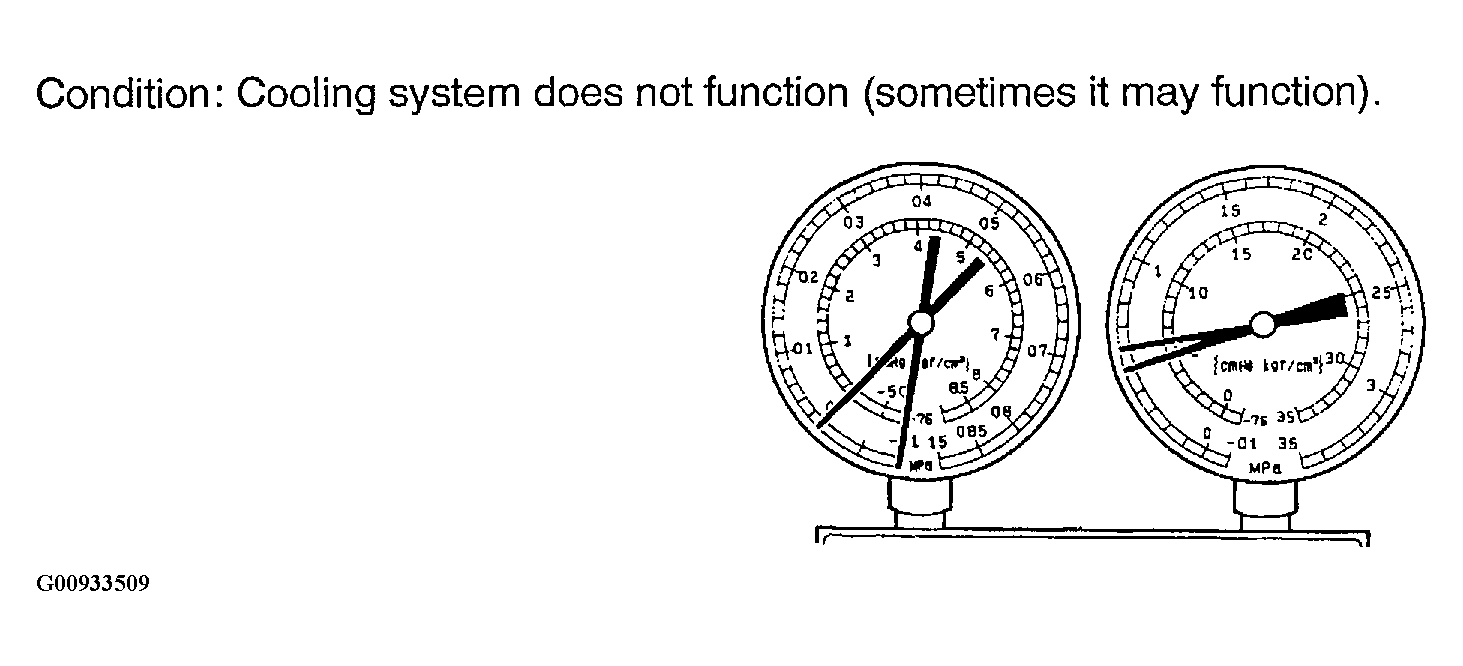

  5. Refrigerant does not circulate

    Fig 11: Identifying Uncirculating Current
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

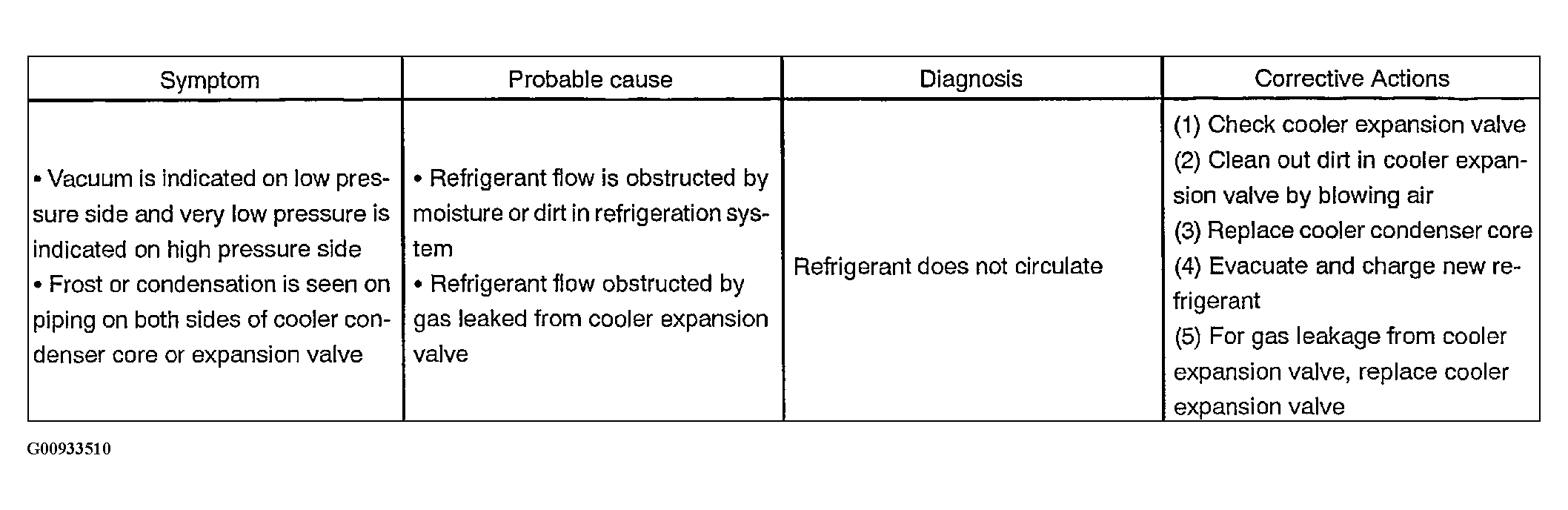

    Fig 12: Uncirculating Coolant Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Refrigerant overcharged or insufficient cooling of condenser

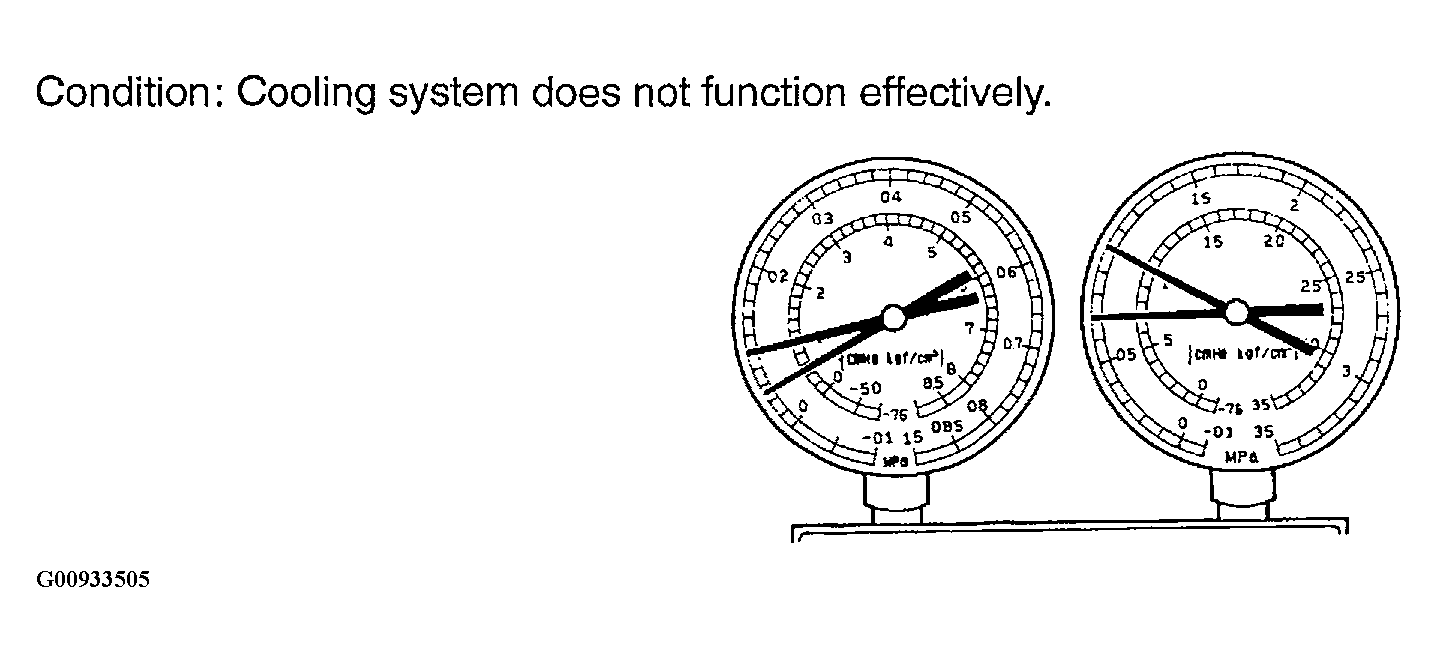

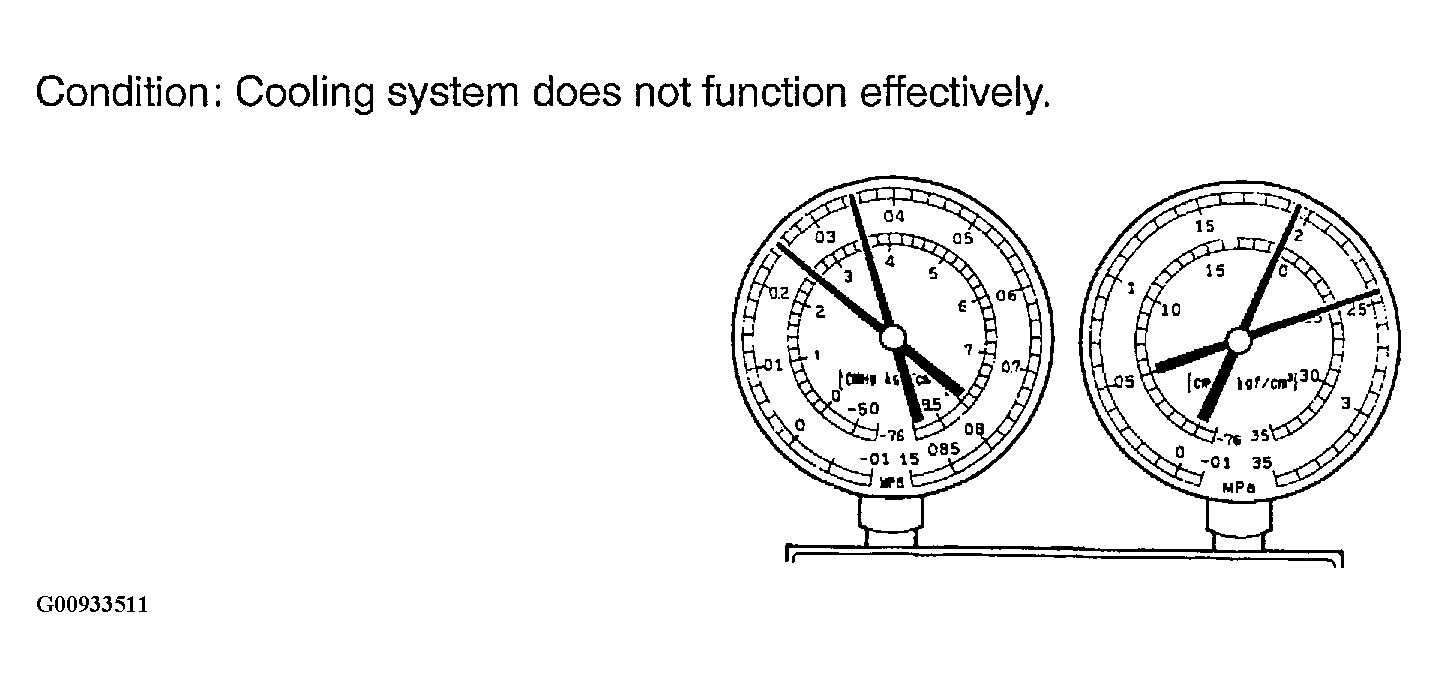

    Fig 13: Identifying Overcharge/Insufficient Coolant
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

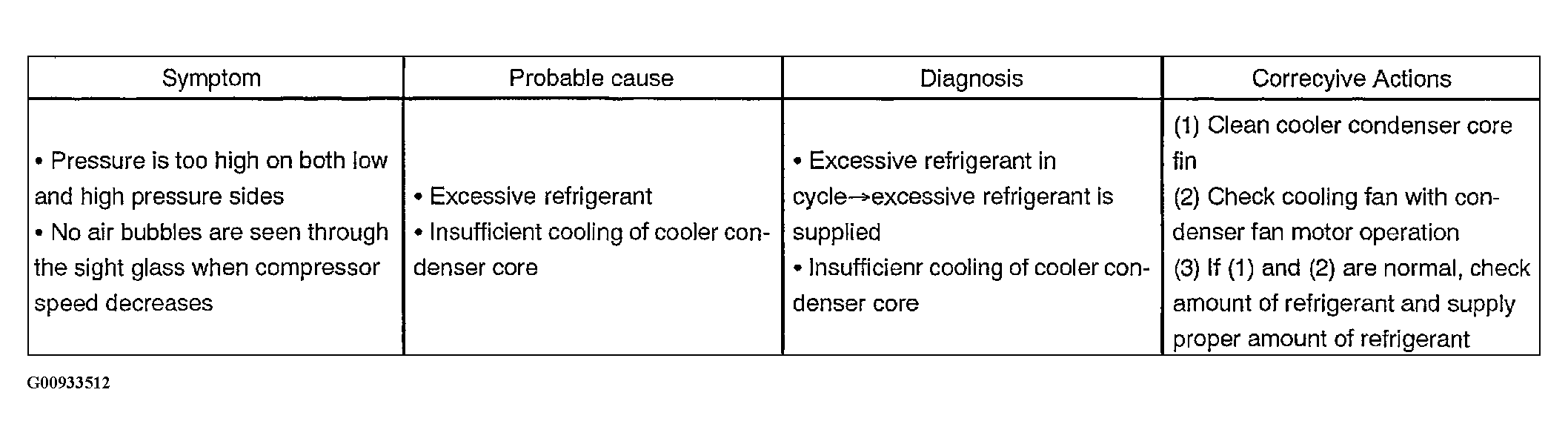

    Fig 14: Overcharge/Insufficient Coolant Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

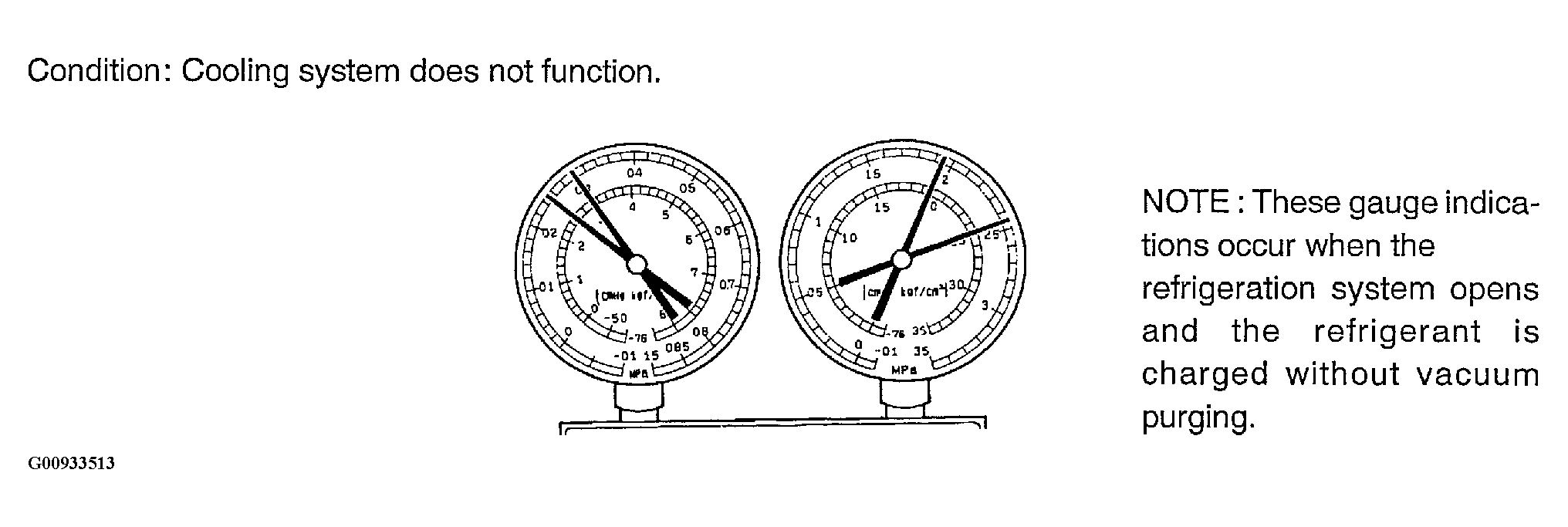

  7. Air present in refrigeration system

    Fig 15: Identifying Air Is Present In Cooling System
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

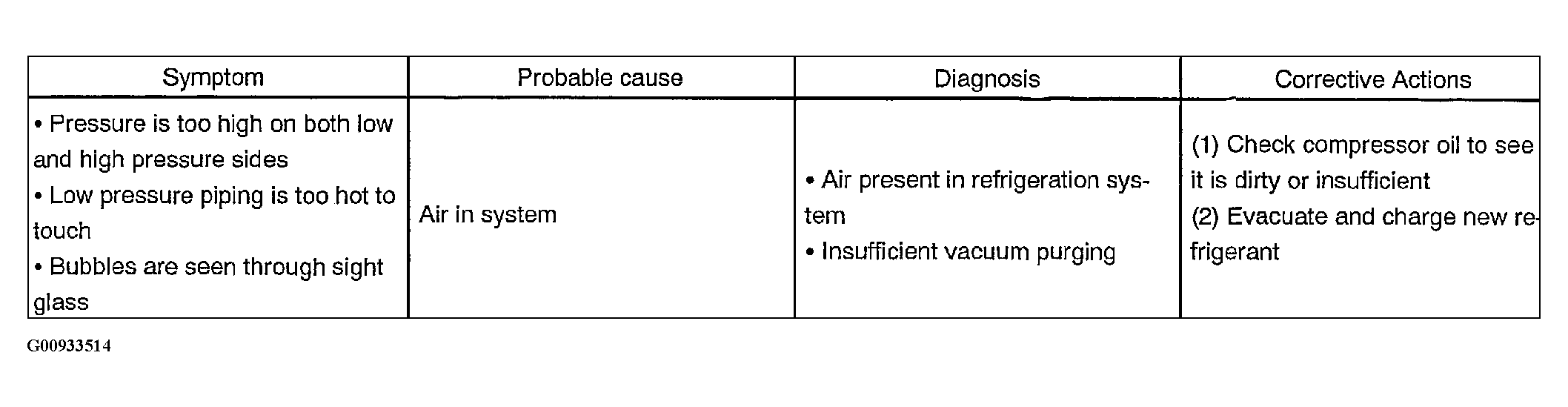

    Fig 16: Air In Cooling System Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Expansion valve malfunction

    Fig 17: Identifying An Expansion Valve Malfunction
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

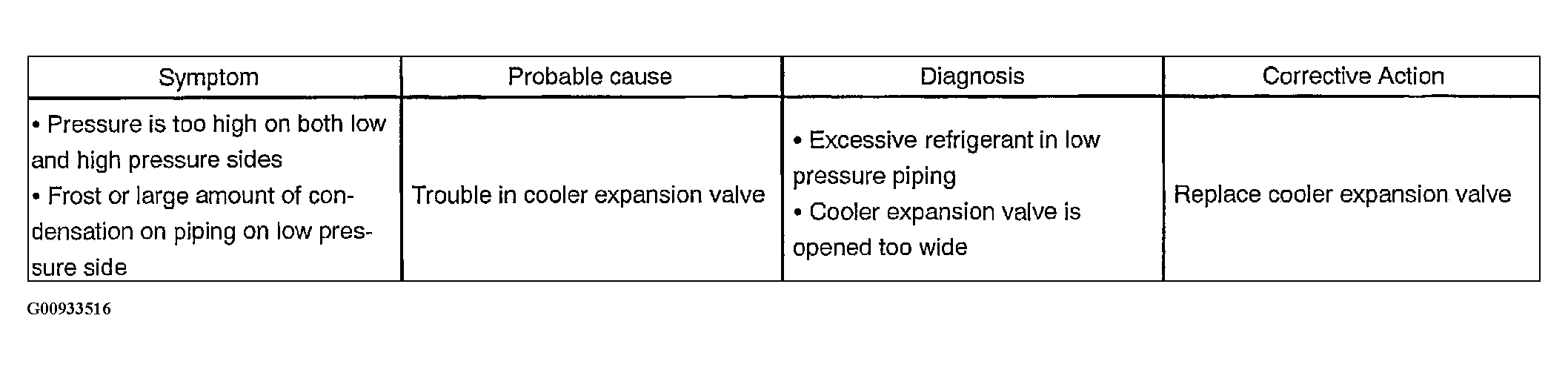

    Fig 18: Expansion Valve Malfunction Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Defective compression compressor

    Fig 19: Identifying Defective Compression Compressor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

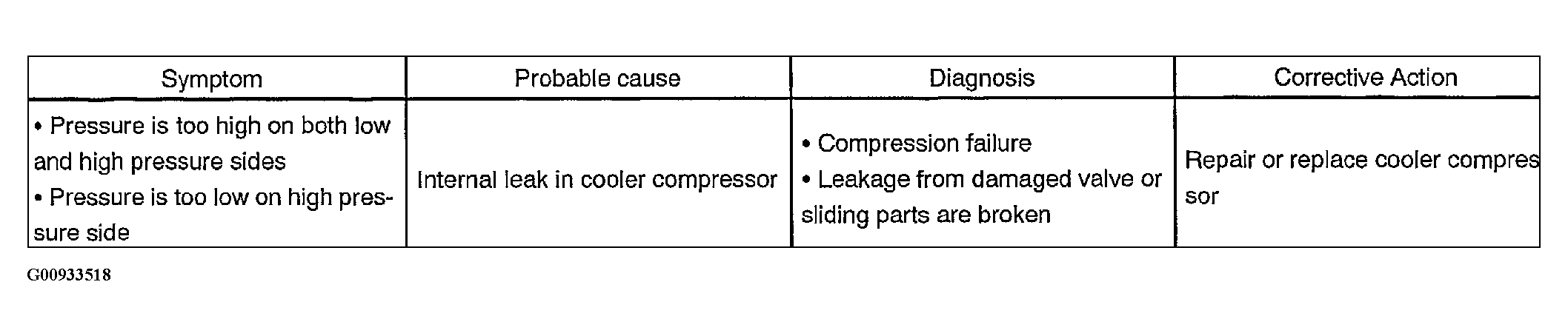

    Fig 20: Defective Compression Compressor Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
