Stereo Component Speaker ASSY Front: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS
Installation is in the reverse order of removal.

REMOVE STEREO COMPONENT SPEAKER ASSY FRONT
1. Disengage the 4 claws and remove the instrument panel speaker panel.

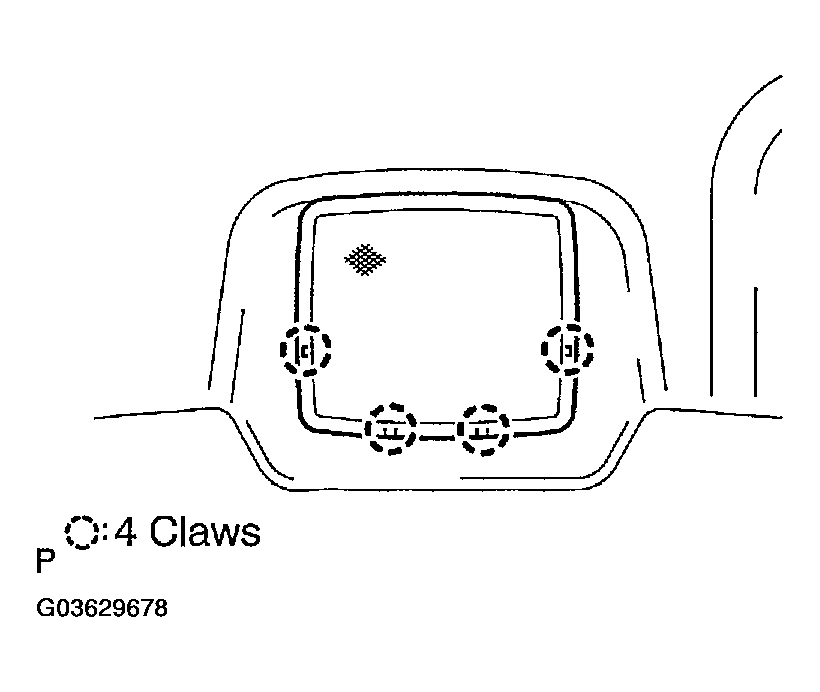

  Fig 1: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector.
3. Remove the 2 screws and disengage the clamp and then remove the stereo component speaker assy front.

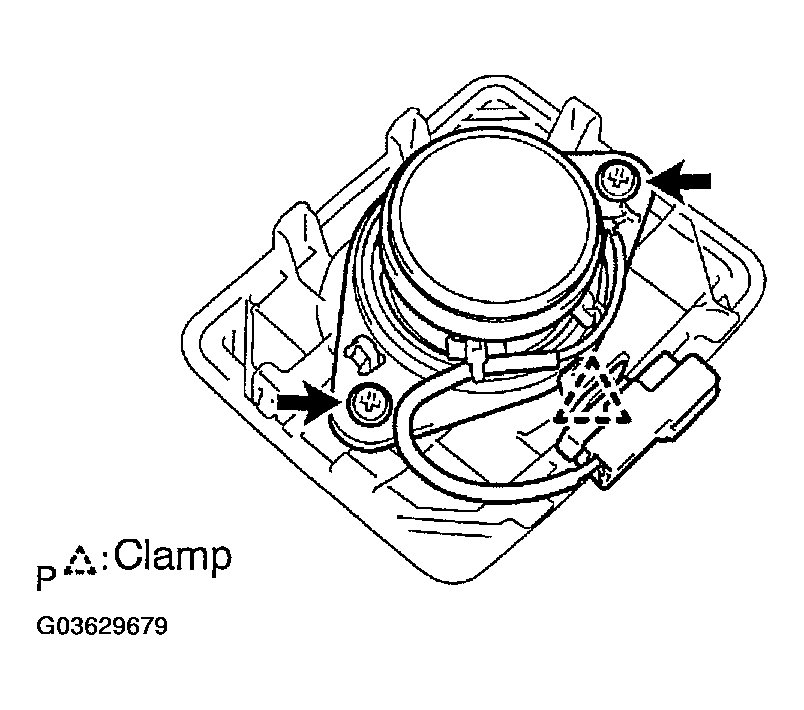

Fig 2: Removing Screws & Disengaging Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
