Control And Solenoids
WARNING:
This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

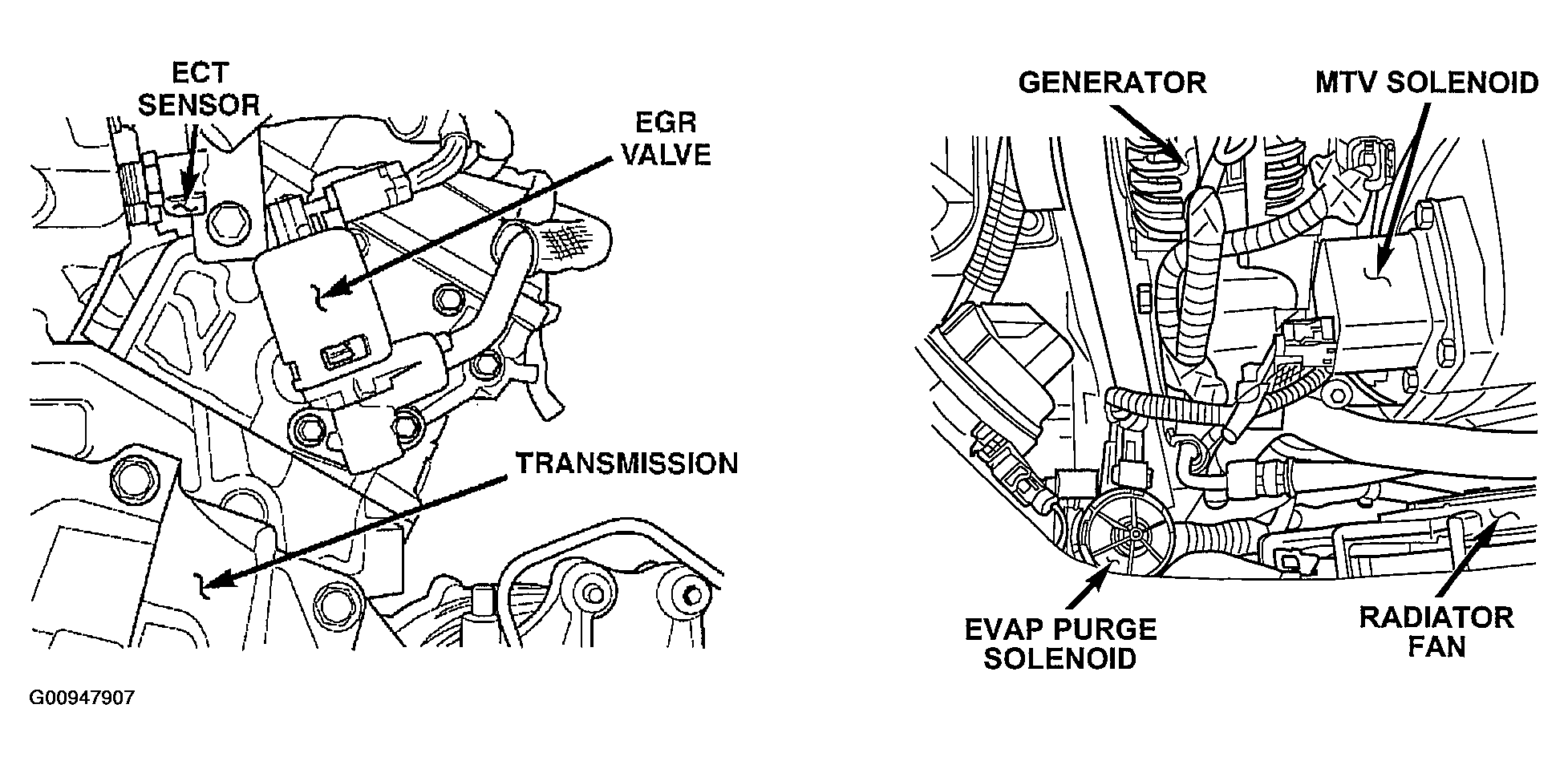

Fig 1: Locating Control And Solenoids (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

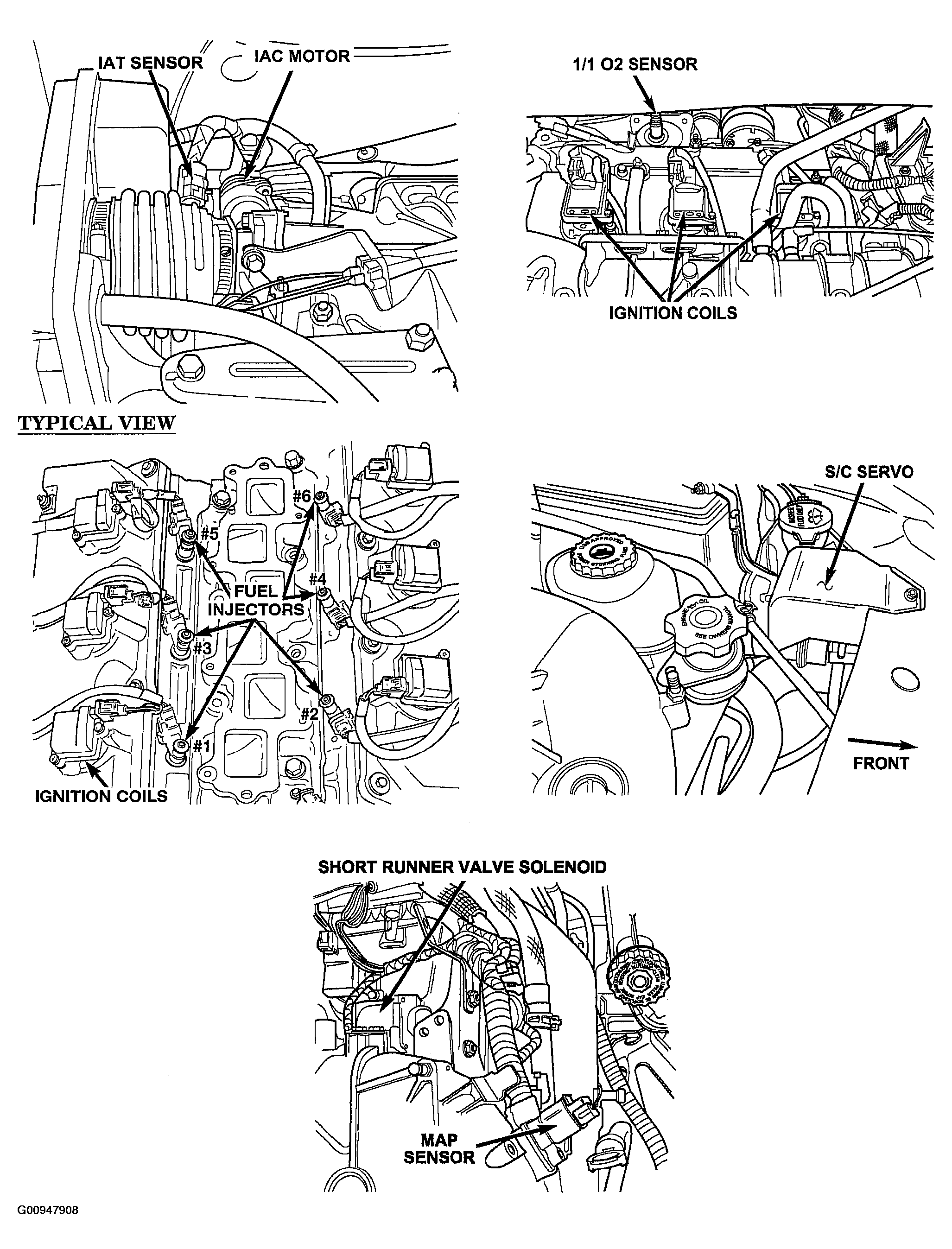

Fig 2: Locating Control And Solenoids (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
