Component Locations: Sensor

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

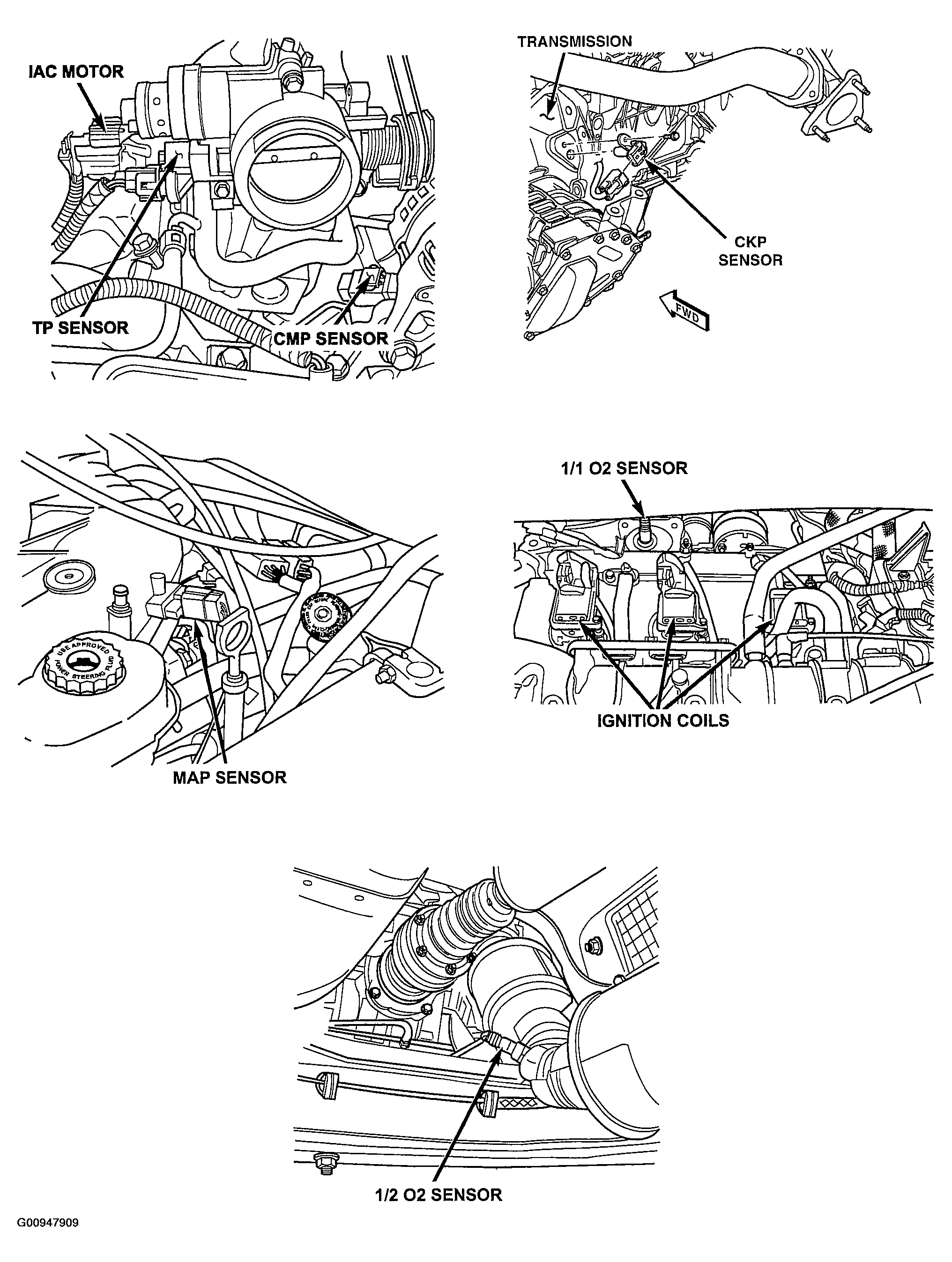

Fig 1: Locating Sensors
G00947909Courtesy of DAIMLERCHRYSLER CORP.
