Natural Vacuum Leak Detection Assembly Connector End Views

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

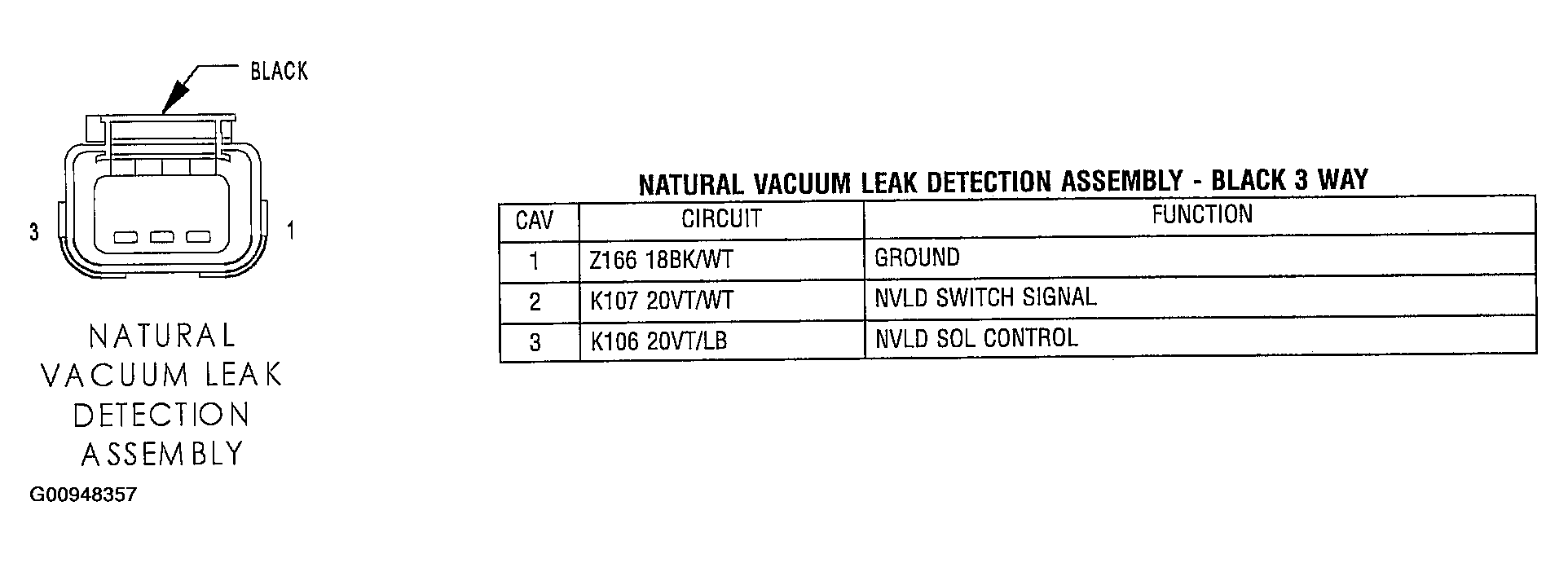

Fig 1: Identifying Natural Vacuum Leak Detection Assembly - Black 3 Way Connector
G00948357Courtesy of DAIMLERCHRYSLER CORP.
