Vapor Pressure Sensor (Land Cruiser & Tundra)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

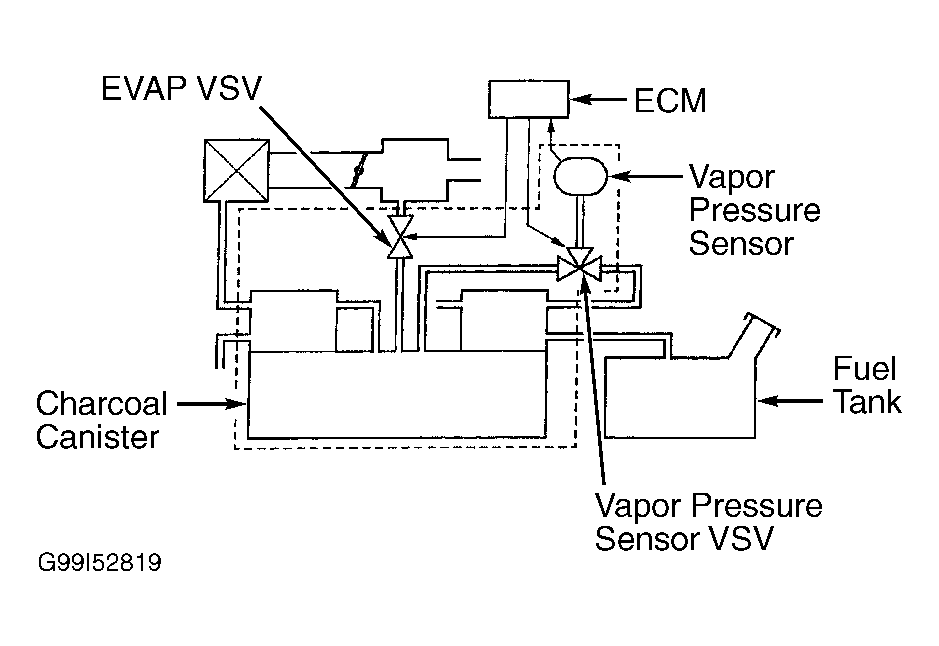

Vapor pressure sensor and vapor pressure sensor Vacuum Switching Valve (VSV) are used to determine if a leak or an abnormality exists in the EVAP system. See Fig 1. Engine Control Module (ECM) determines if a leak or an abnormality exists in EVAP system by using input signal from vapor pressure sensor. EVAP system may also be referred to as fuel evaporative system. Vapor pressure sensor may also be referred to as EVAP vapor pressure sensor. Vapor pressure sensor VSV may also be referred to as EVAP Vapor Pressure Sensor Vacuum Switching Valve (EVAP-VPSVSV).
