Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

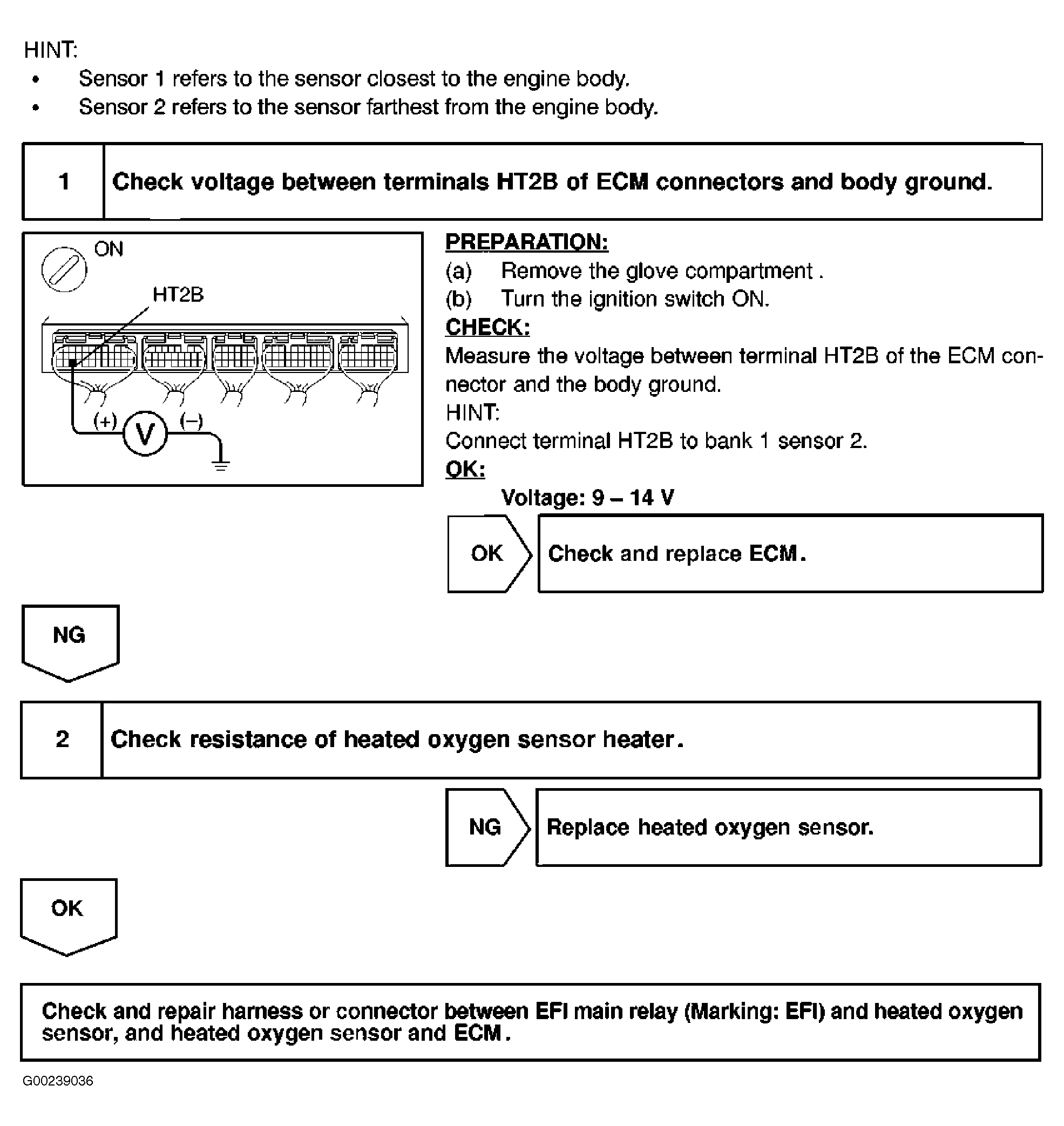

For diagnosis and repair procedure, see Fig 1.
For access to, or replacement of ECM, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector view, see Figure. For circuit wiring diagram, see Figure. For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.
