Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTC detection conditions and possible causes, see Fig 1.

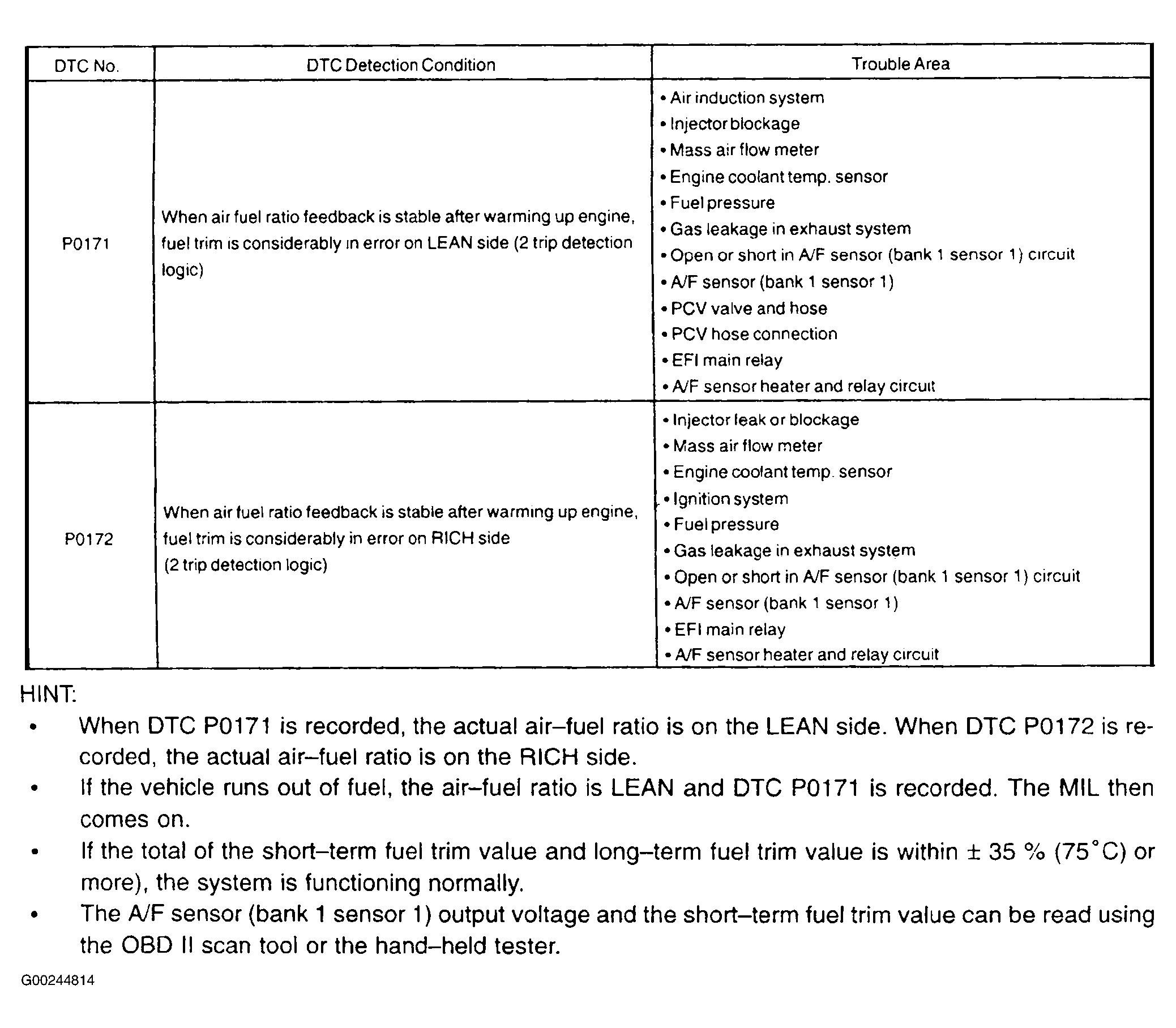

Fig 1: DTCs P0171 & P0172 Detecting Conditions & Possible Causes
G00244814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
