Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTC detection conditions and possible causes, see Fig 1.

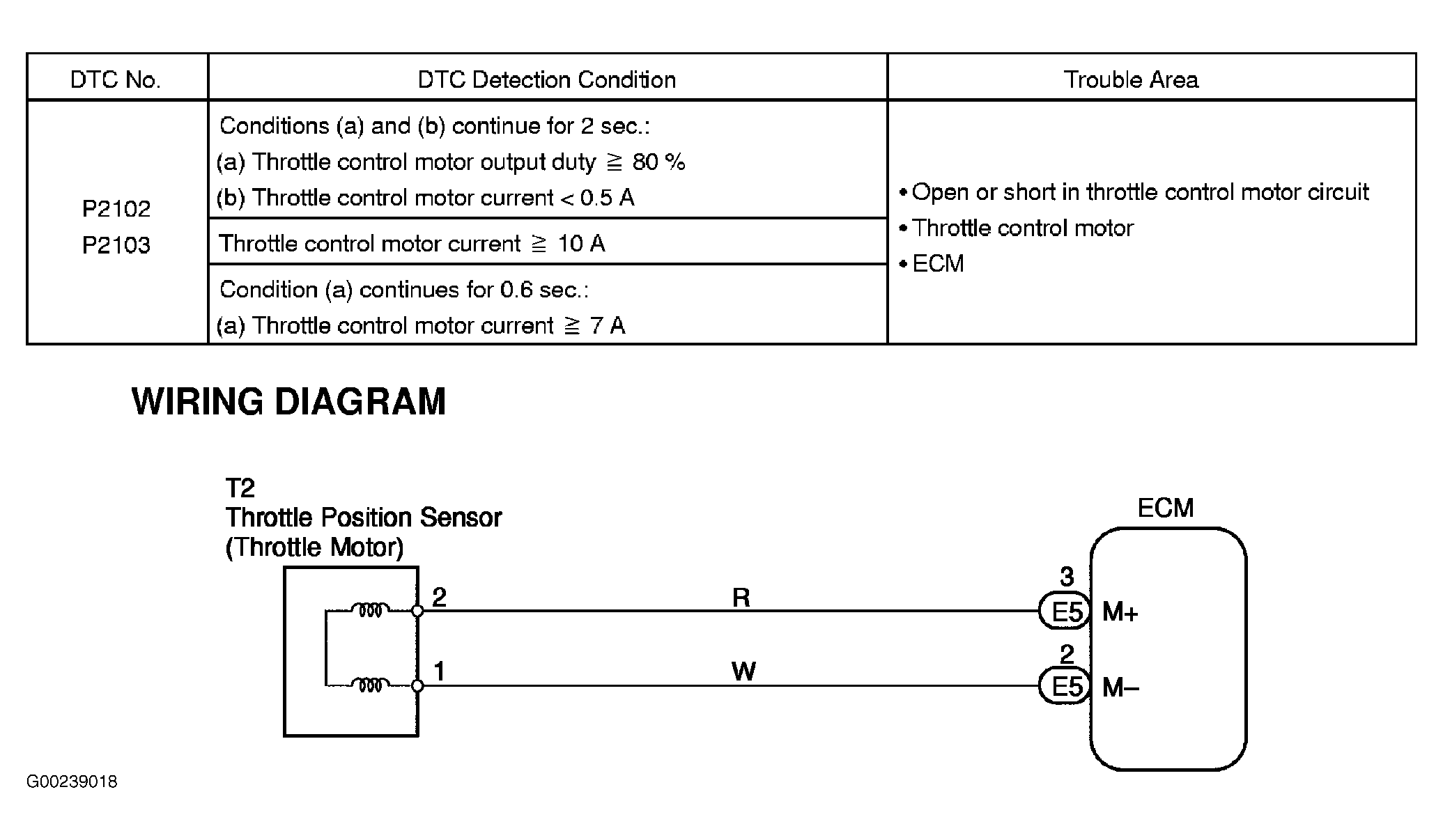

Fig 1: DTC Detection Conditions & Possible Causes
G00239018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
