Fuel EVAP System Test (Corolla)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Manufacturer provides testing information for testing airtightness of fuel tank and components along with testing of charcoal canister and fuel EVAP system.

For fuel EVAP system test, see Fig 1-Fig 5 .

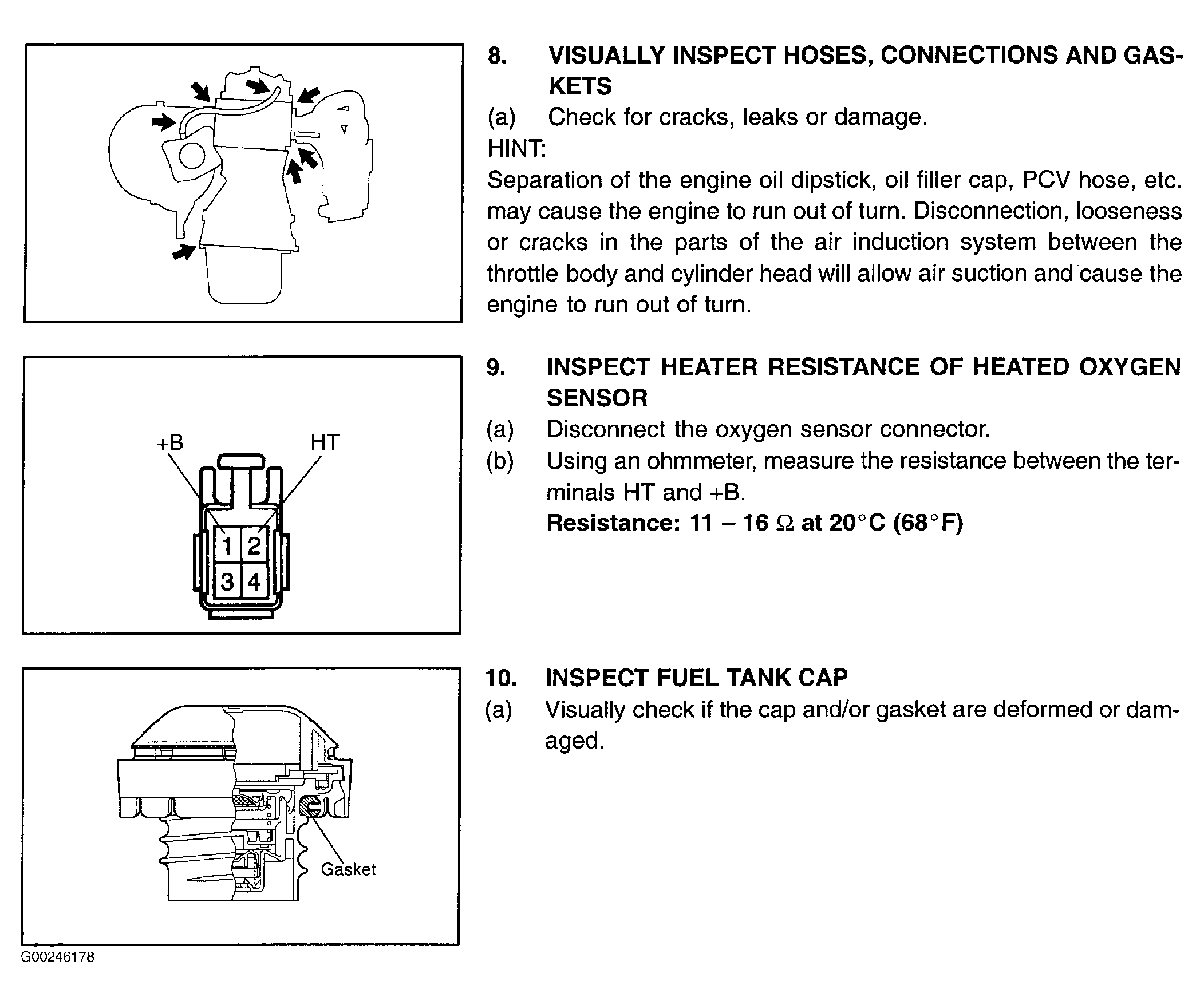

Fig 1: Testing Fuel EVAP System - 1 Of 5 (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

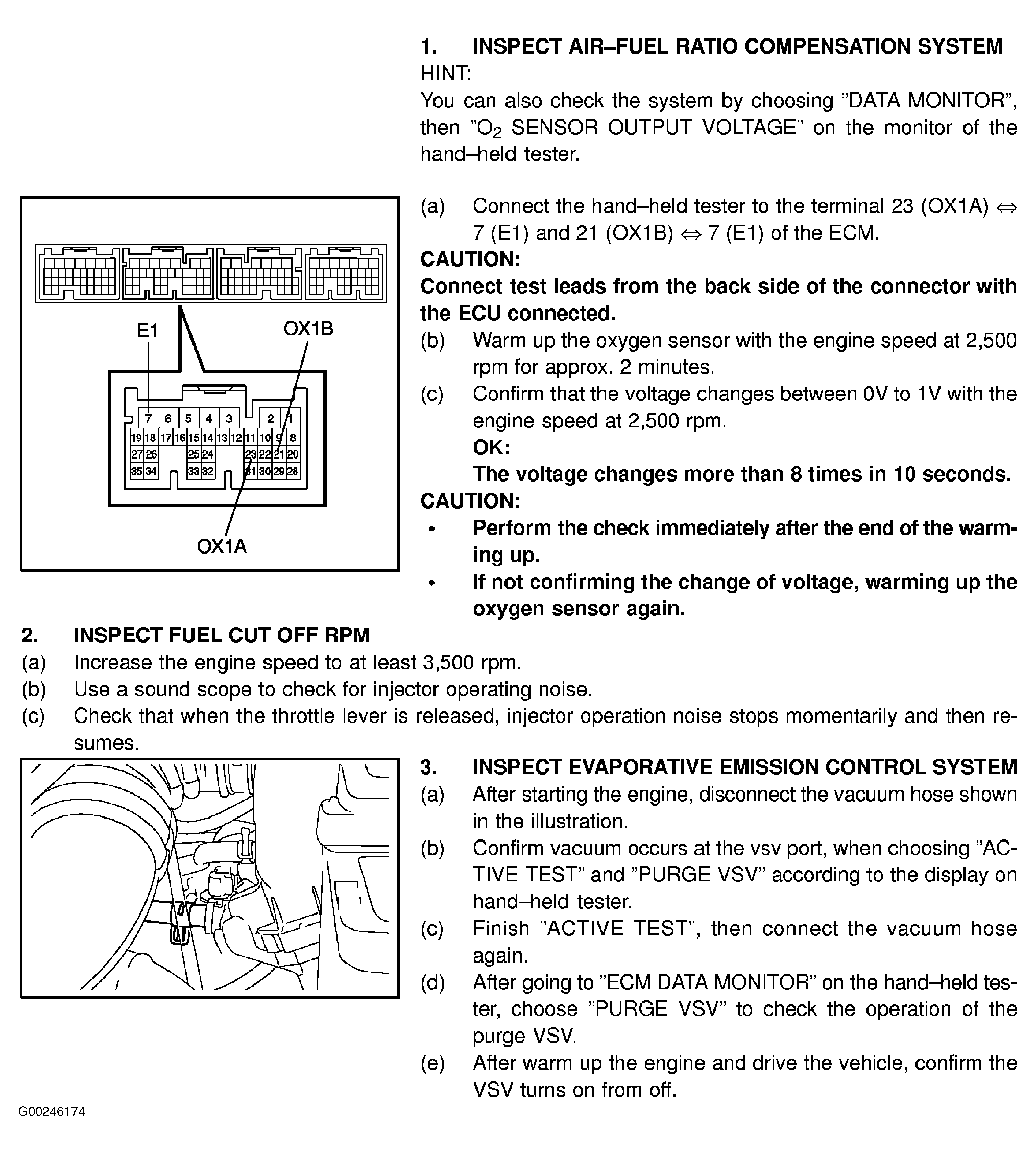

Fig 2: Testing Fuel EVAP System - 2 Of 5 (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

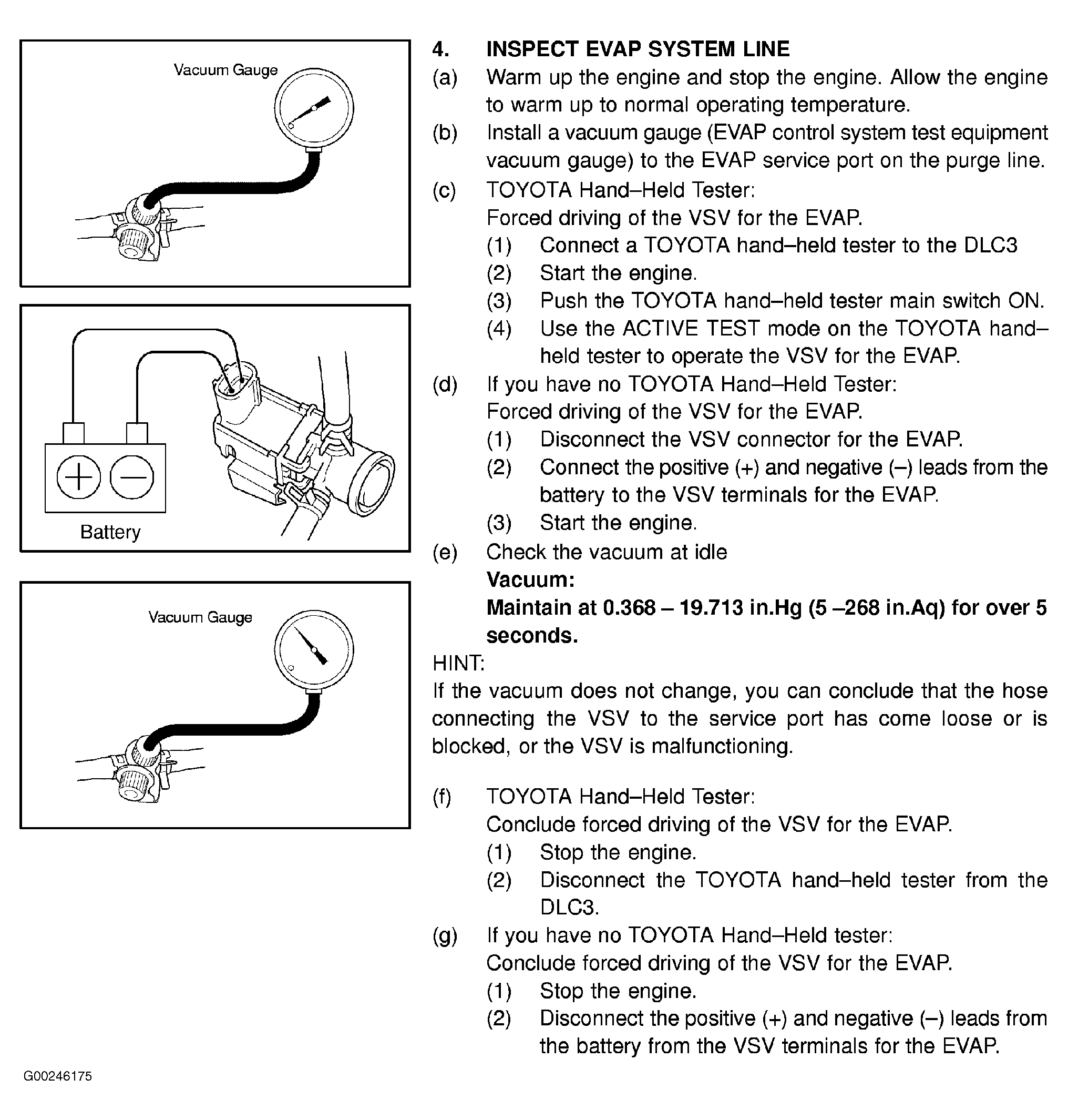

Fig 3: Testing Fuel EVAP System - 3 Of 5 (Corolla)

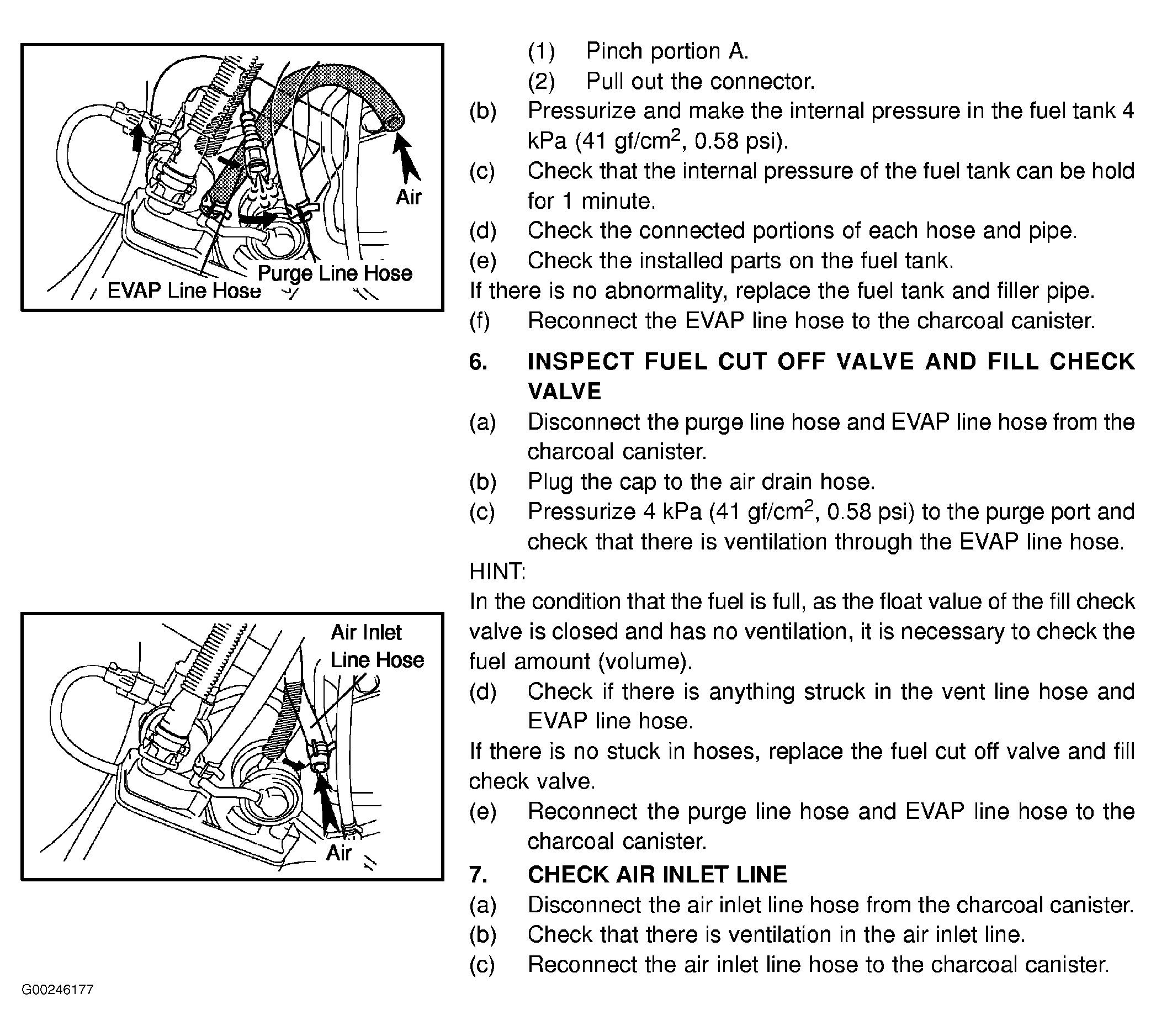

Fig 4: Testing Fuel EVAP System - 4 Of 5 (Corolla)

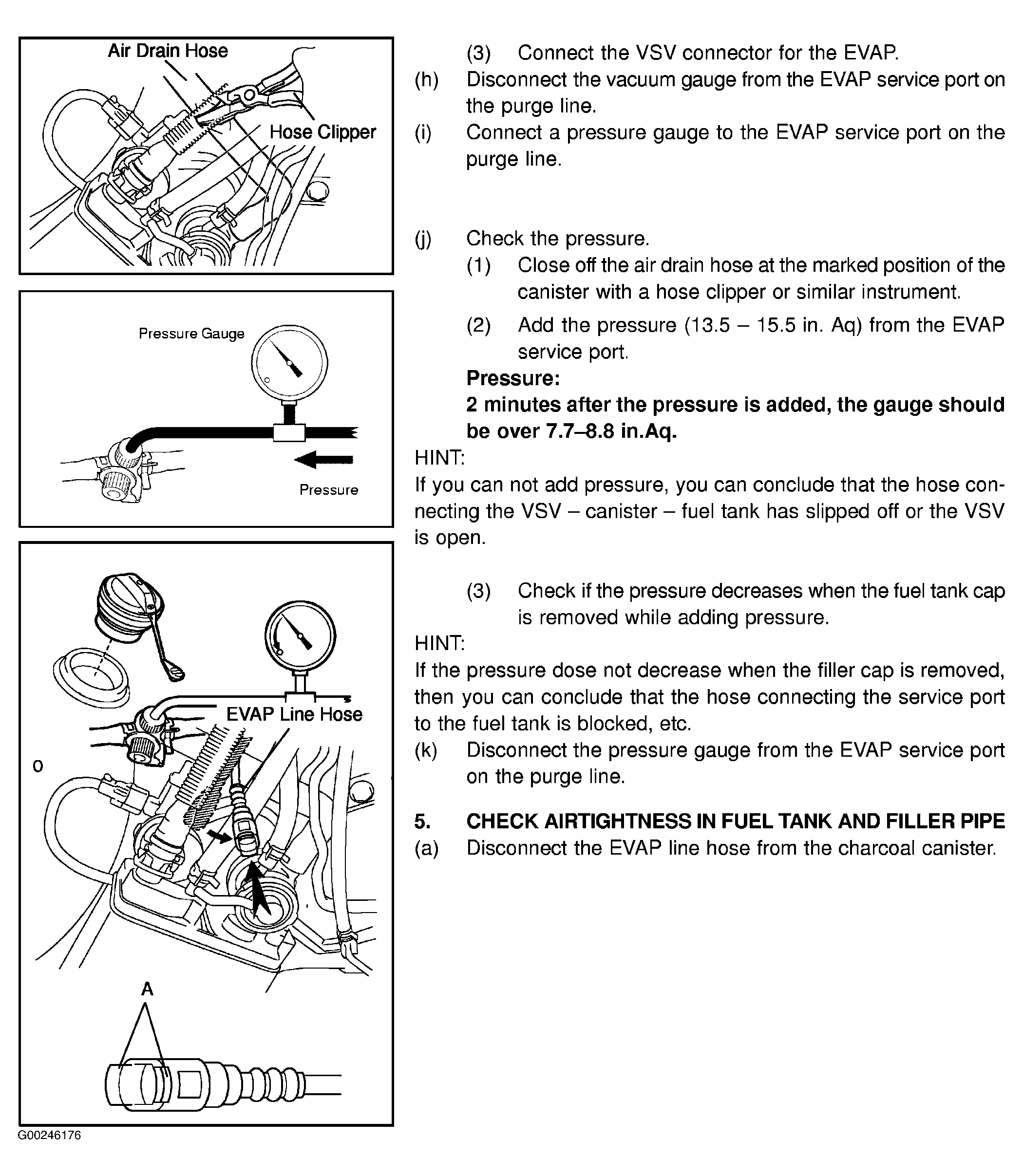

Fig 5: Testing Fuel EVAP System - 5 Of 5 (Corolla)
