Emission System Component Location

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For emission system component location, refer to illustrations. See Fig 1-Fig 13 .

Fig 1: Locating Emission System Components (Avalon)

G00011326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Emission System Components In Engine Compartment (Camry - Up To Jan. 2003 Production)

G00094785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Emission System Components In Engine Compartment (Camry - Jan. 2003 & Later Production)

G00247690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

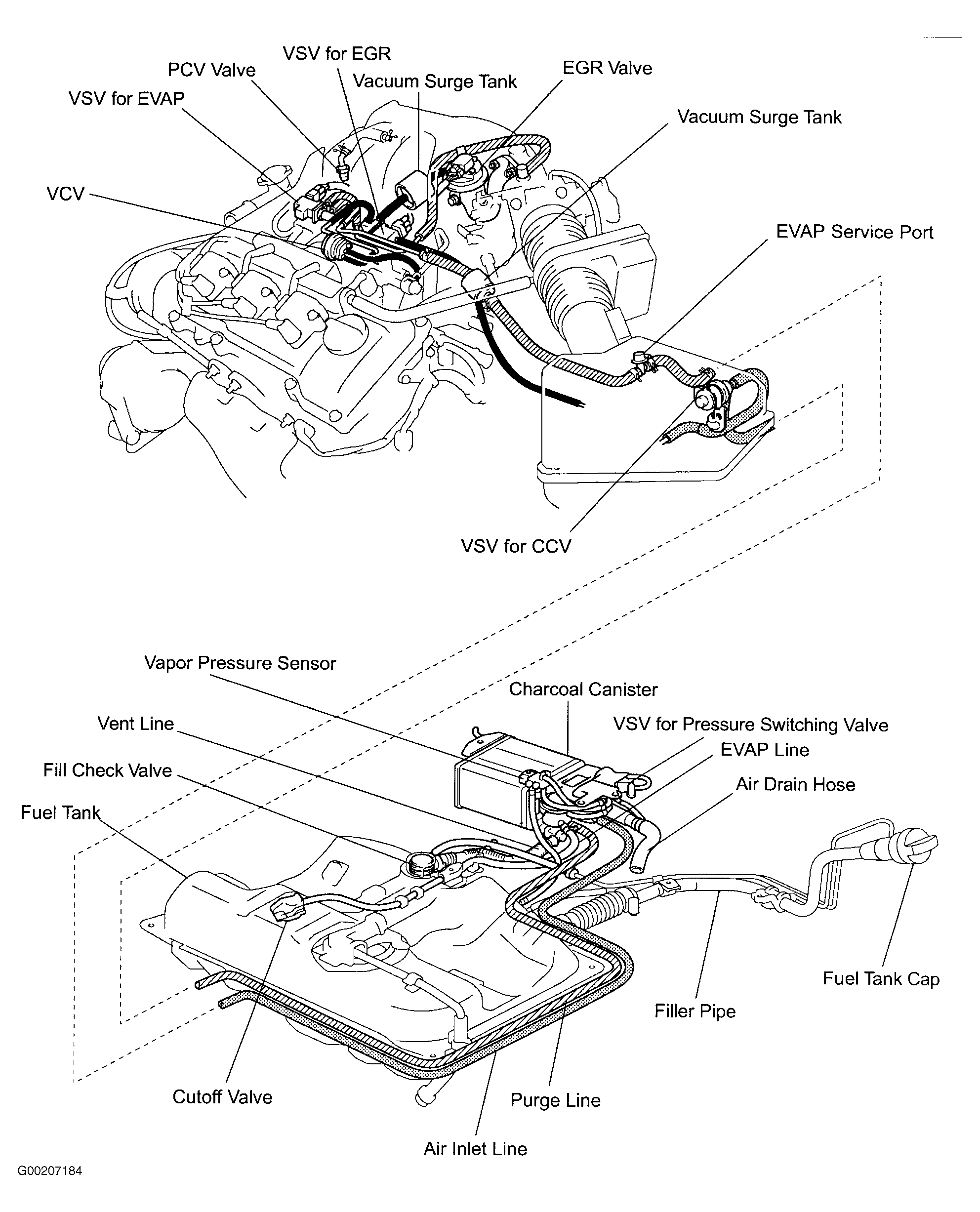

Fig 4: Locating Emission System Components (Camry Solara)

G00207184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Locating Emission System Components In Engine Compartment (Highlander)

G00094789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

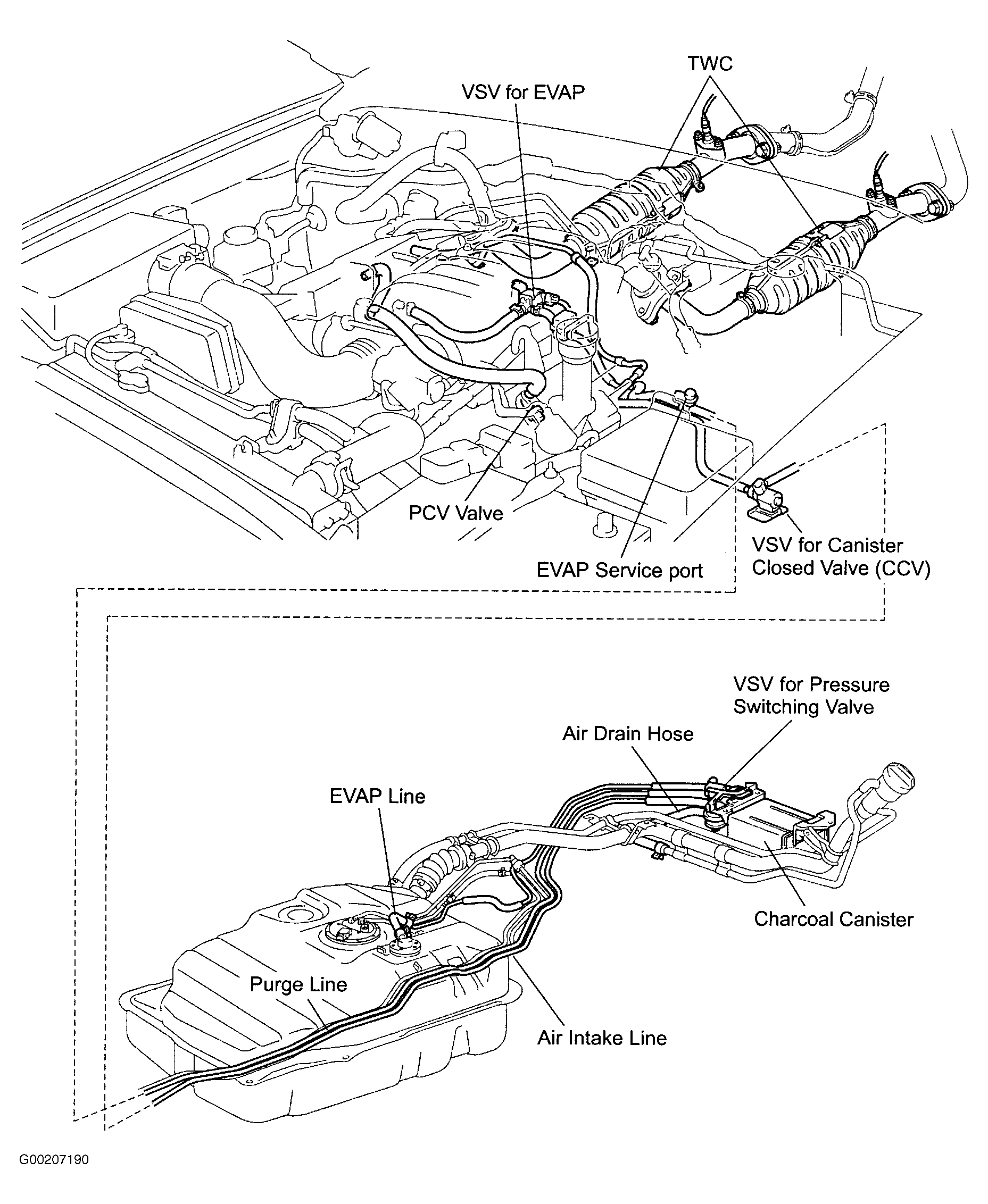

Fig 6: Locating Emission System Components (Land Cruiser)

G00207190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Locating Emission System Components (Sequoia)

G00016271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Locating Emission System Components (Sienna)

G00016274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Locating Emission System Components (Tacoma)

G00023055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

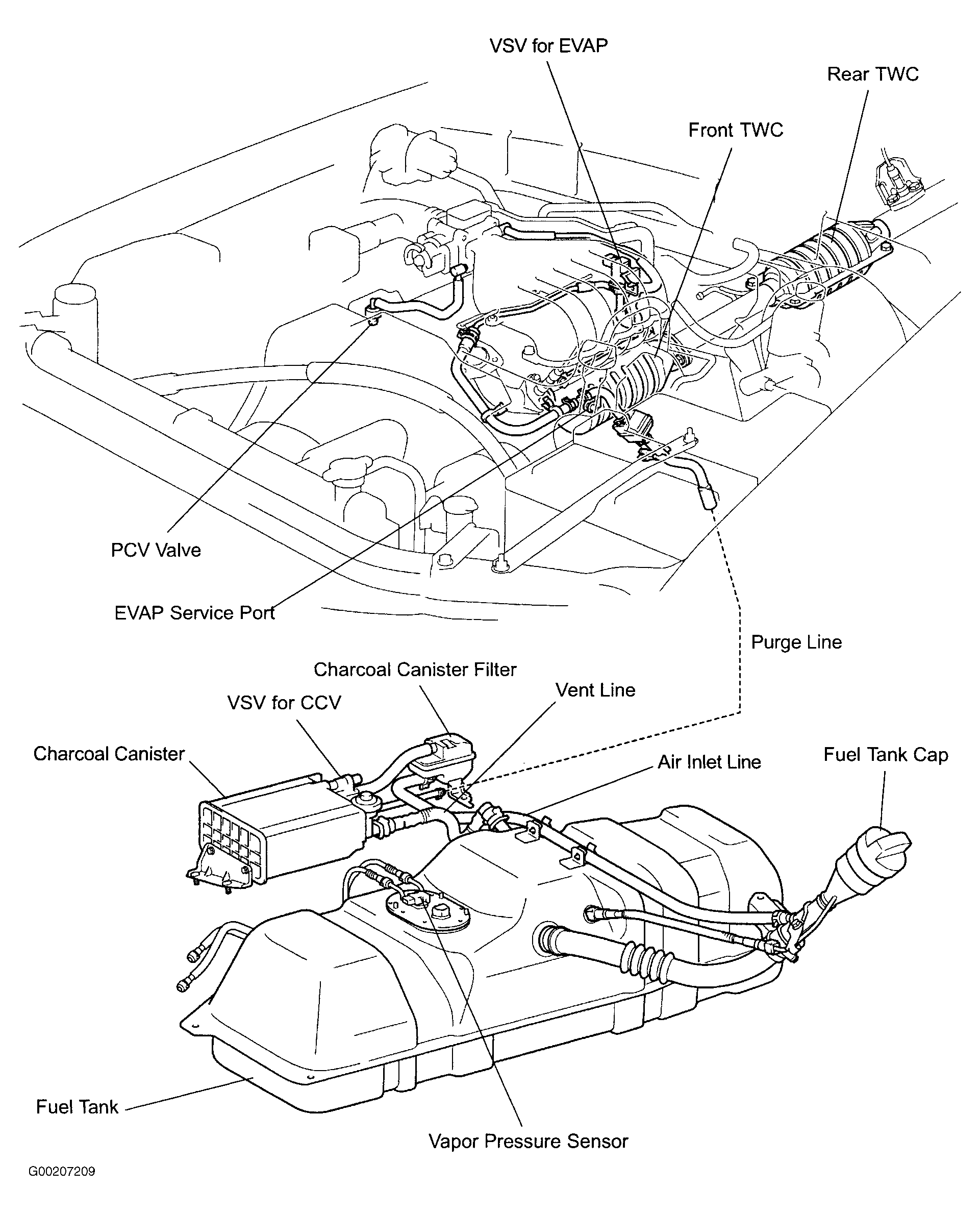

Fig 10: Locating Emission System Components (Tundra 3.4L)

G00207209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

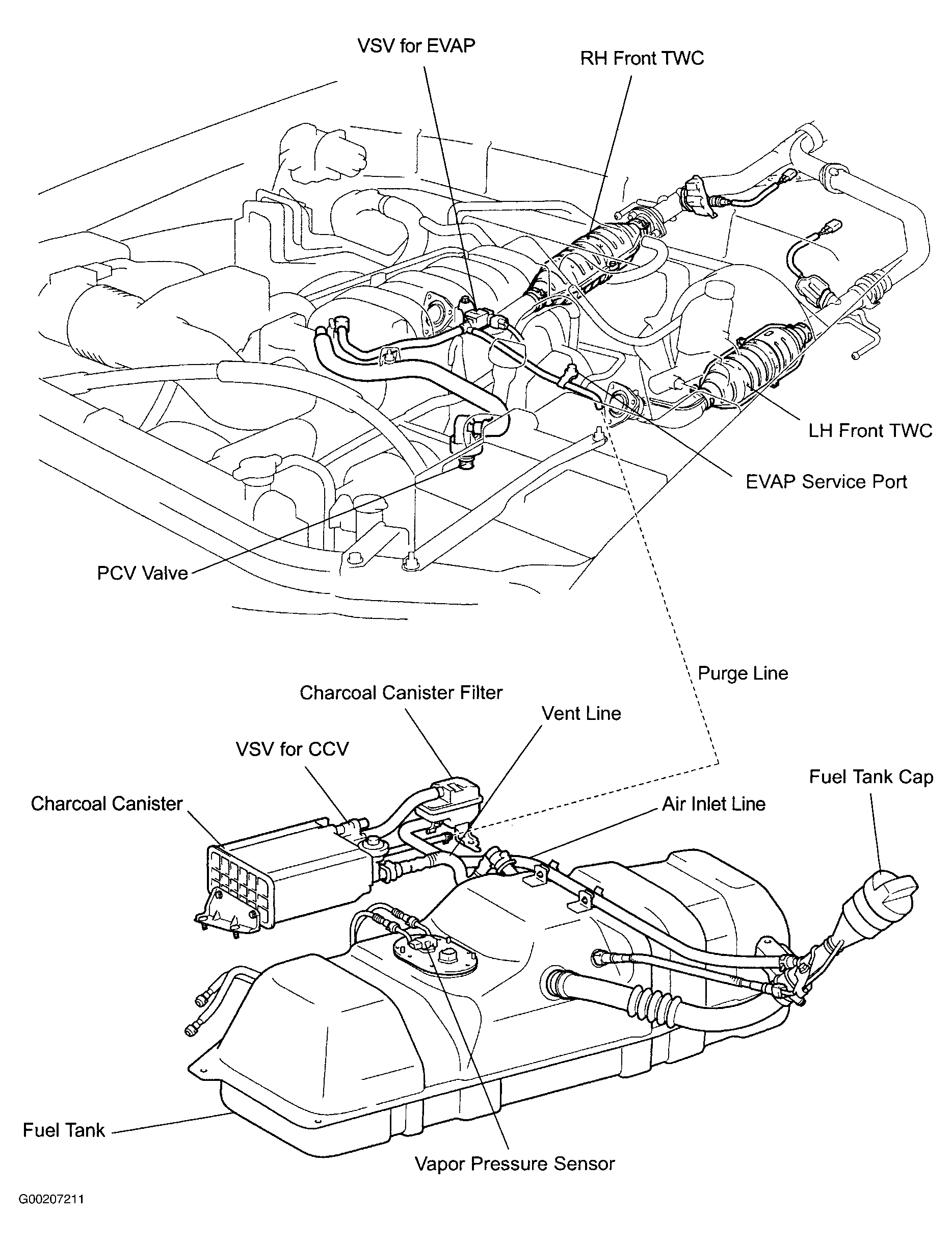

Fig 11: Locating Emission System Components (Tundra 4.7L)

G00207211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

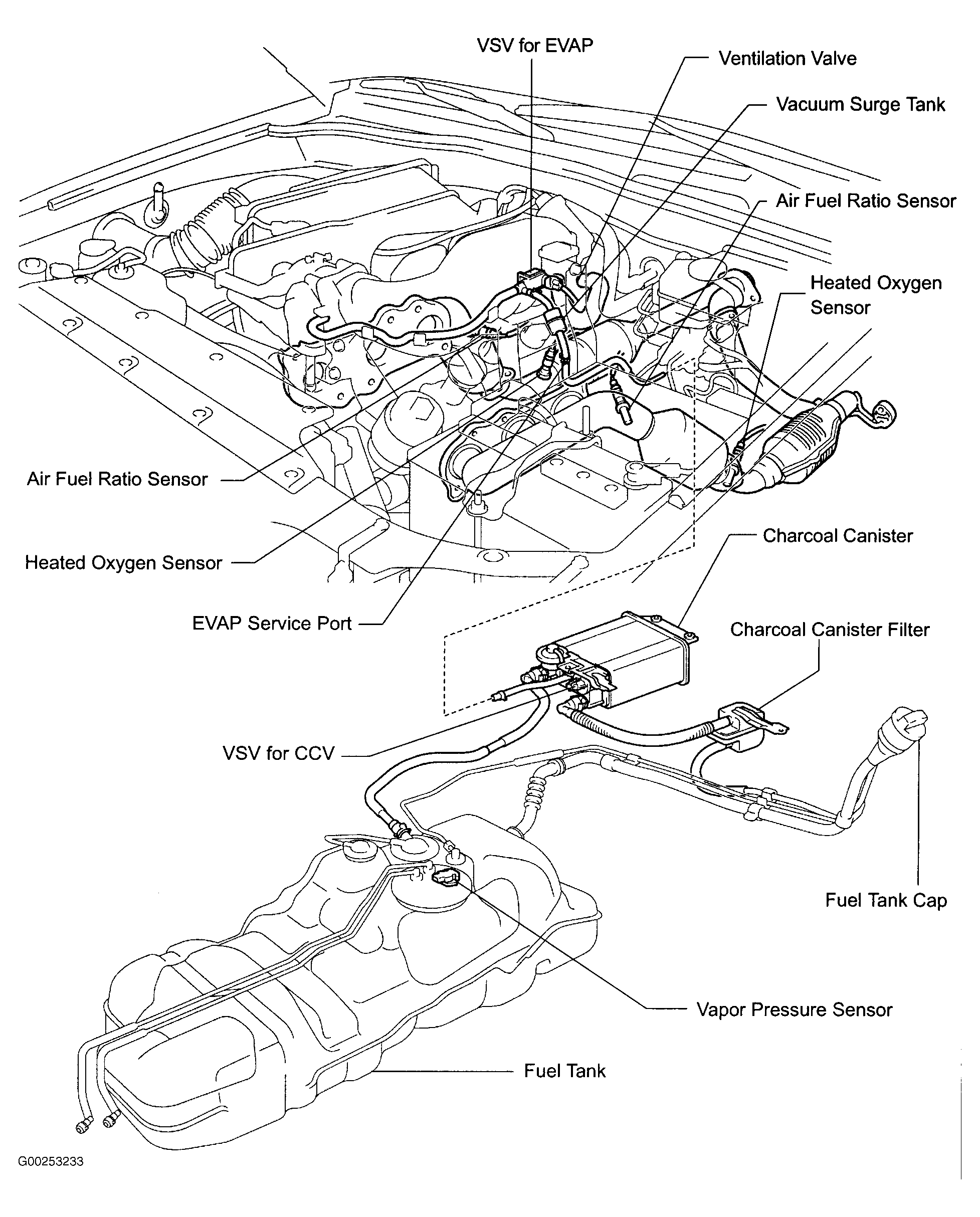

Fig 12: Locating Emission System Components (4Runner 4.0L)

G00253233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

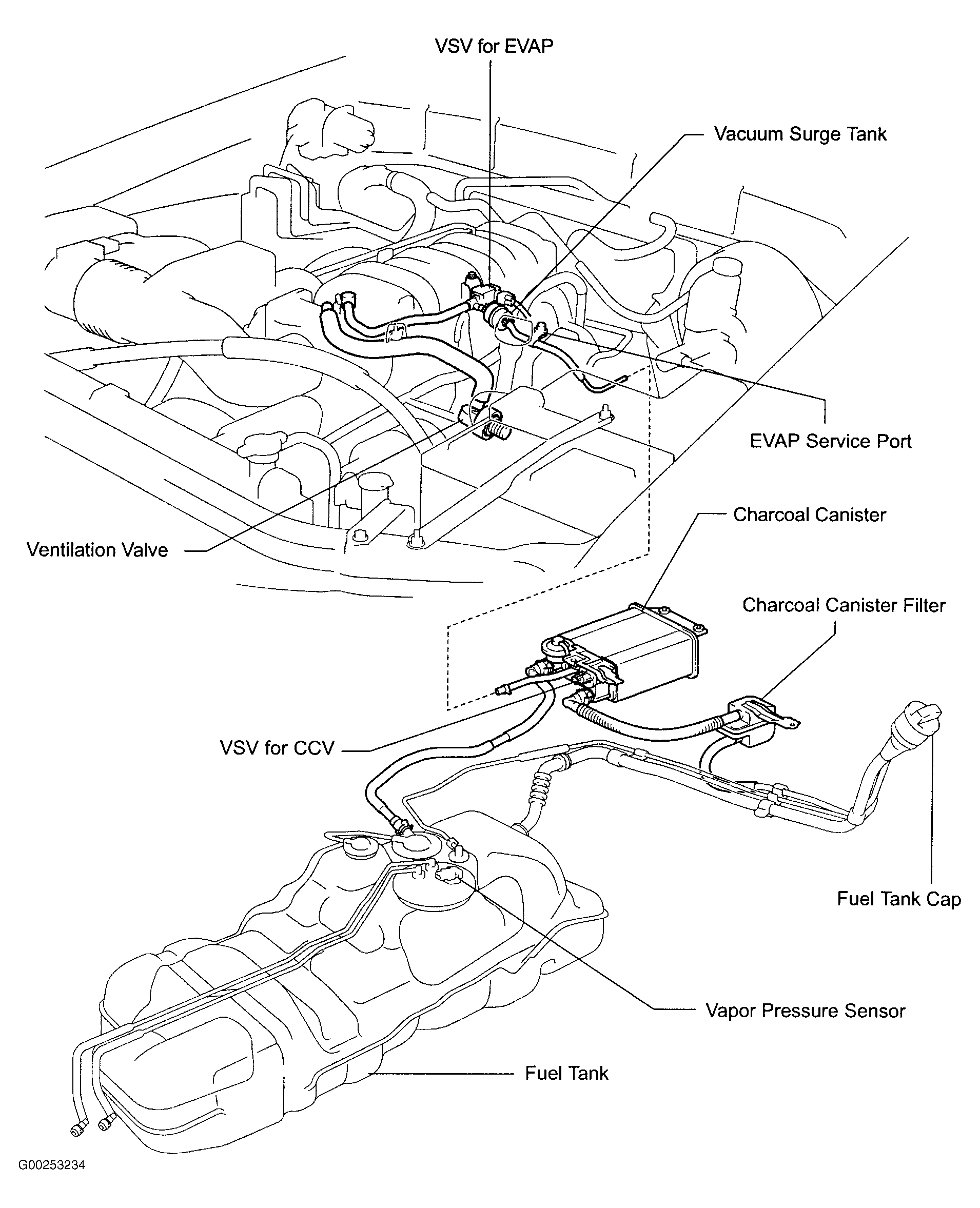

Fig 13: Locating Emission System Components (4Runner 4.7L)

G00253234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
