For active control engine mount test, see Fig 1-Fig 5 . Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS under COMPUTERIZED ENGINE CONTROLS.

Fig 1: Locating Active Engine Control Mount Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

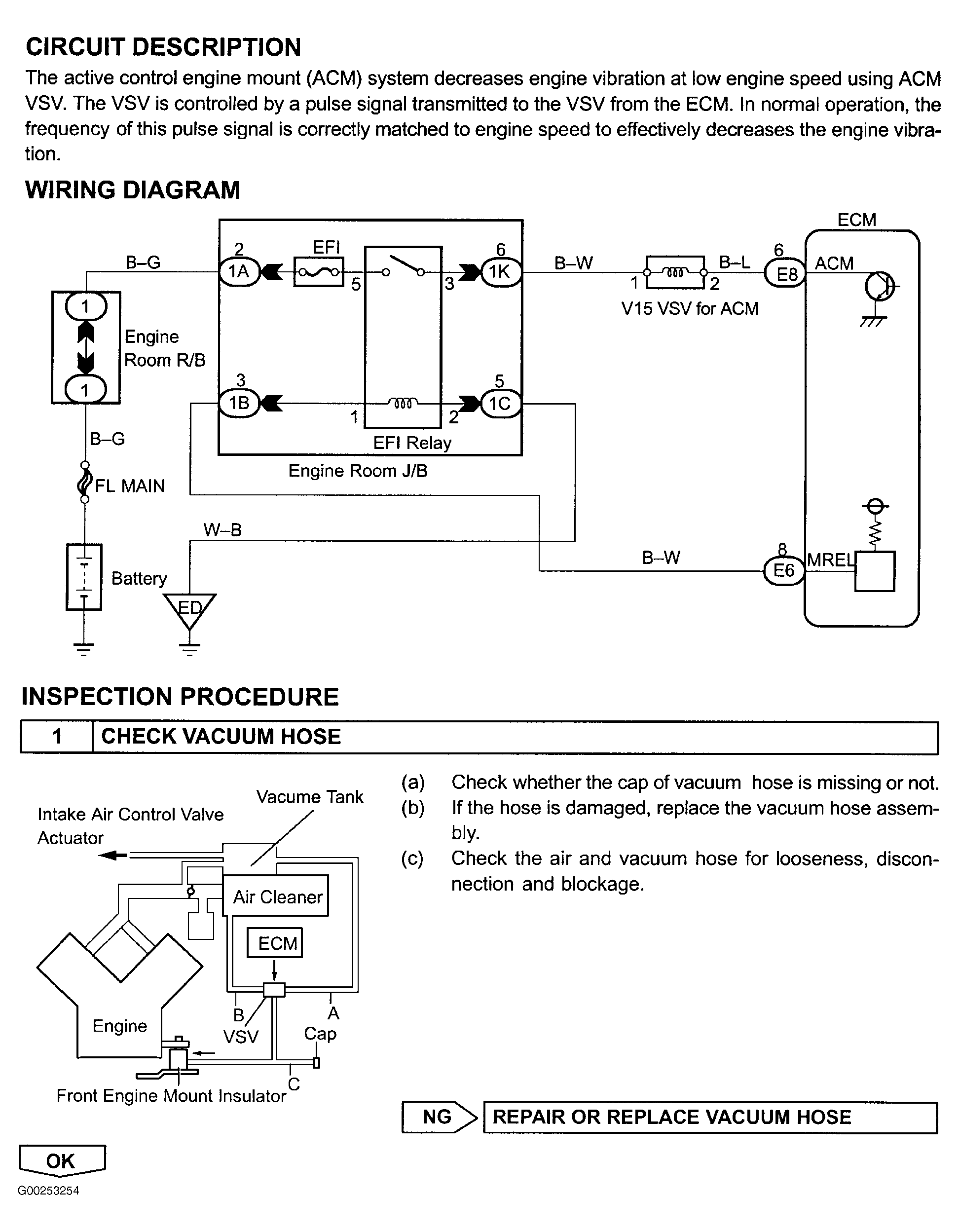

Fig 2: Testing Active Engine Control Mount Circuit Description, Diagram, Inspection - Step 1 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

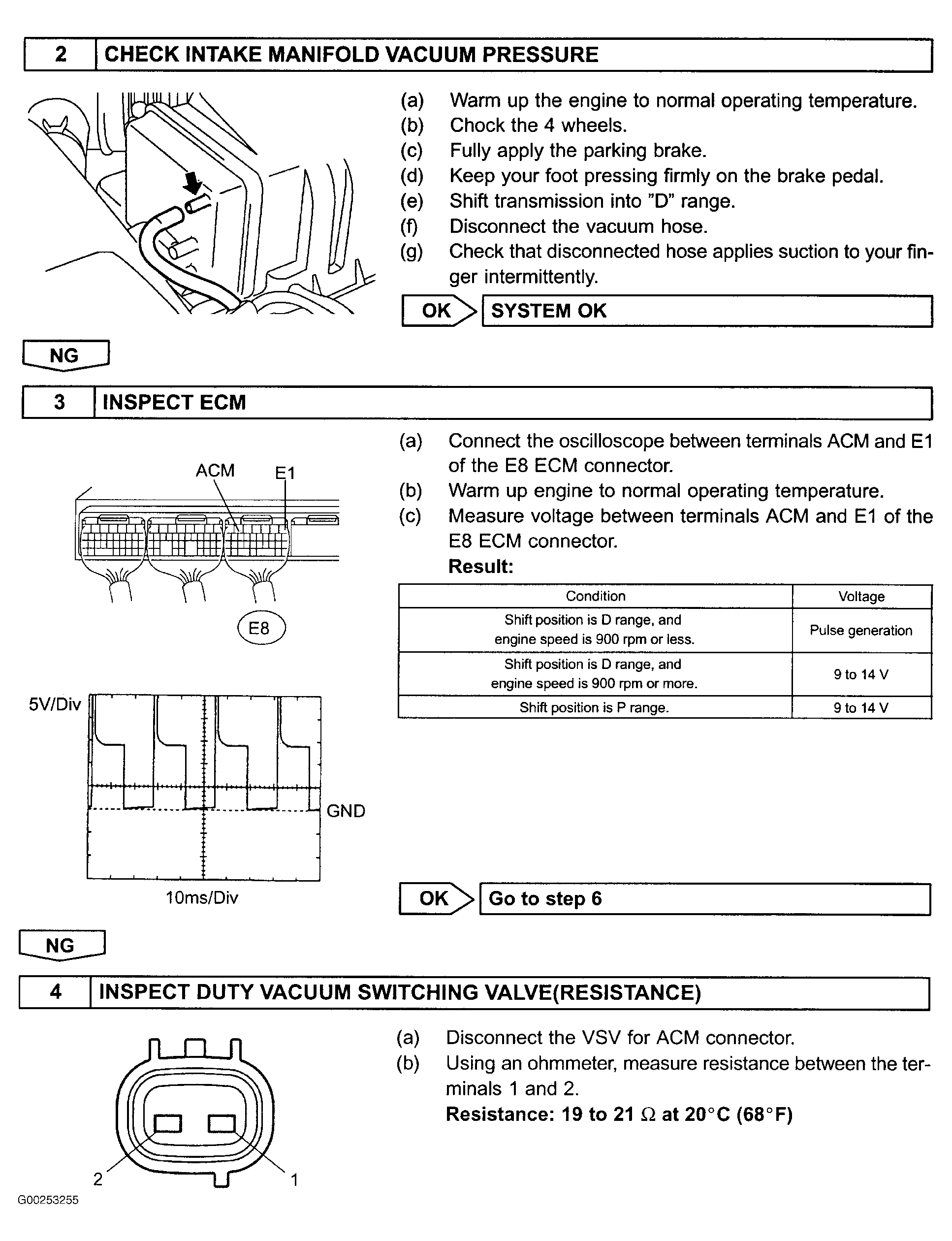

Fig 3: Testing Active Engine Control Mount Inspection - Steps 2-4 (Camry)

Fig 4: Testing Active Engine Control Mount Inspection - Steps 4 Cont.-5 (Camry)

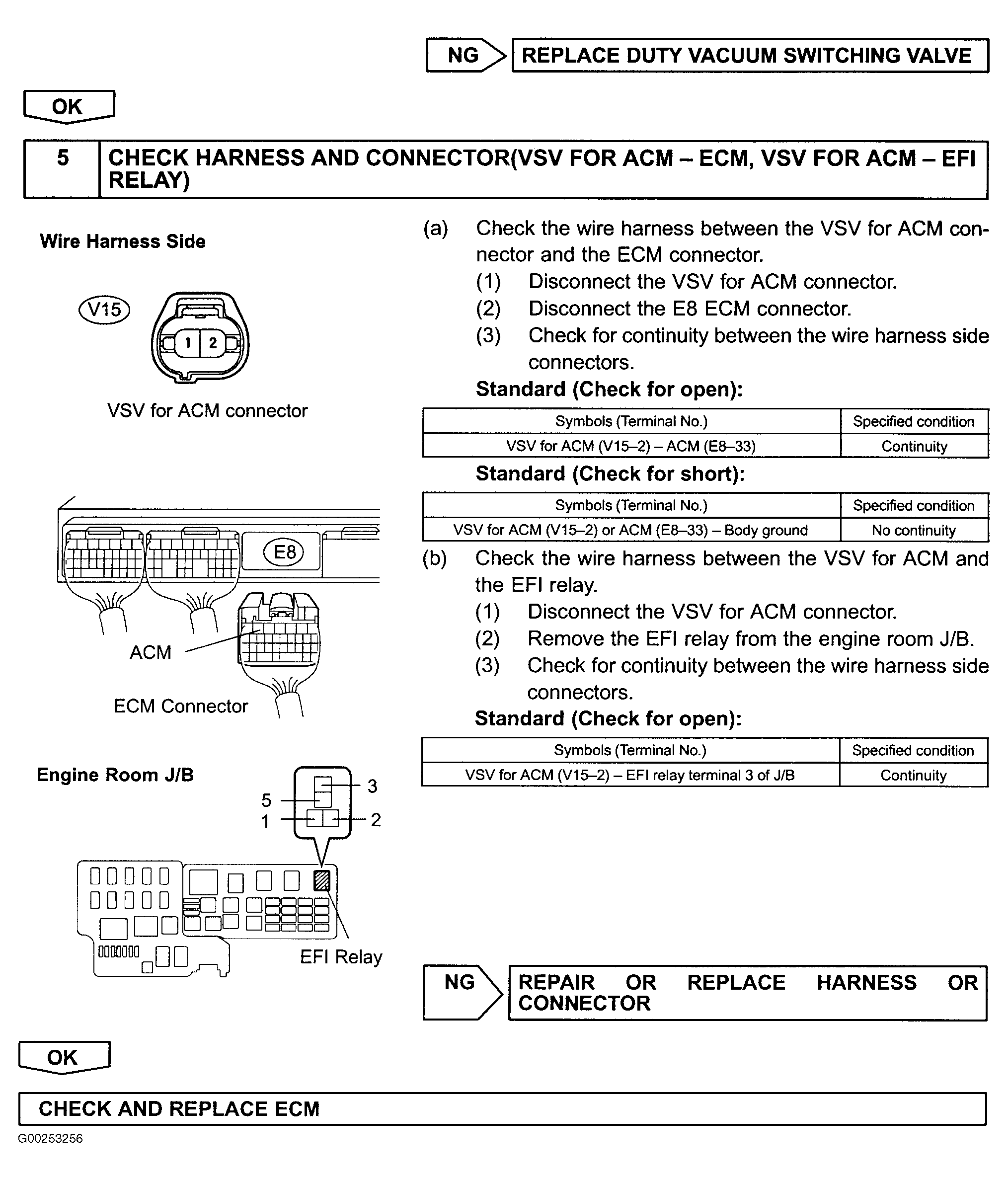

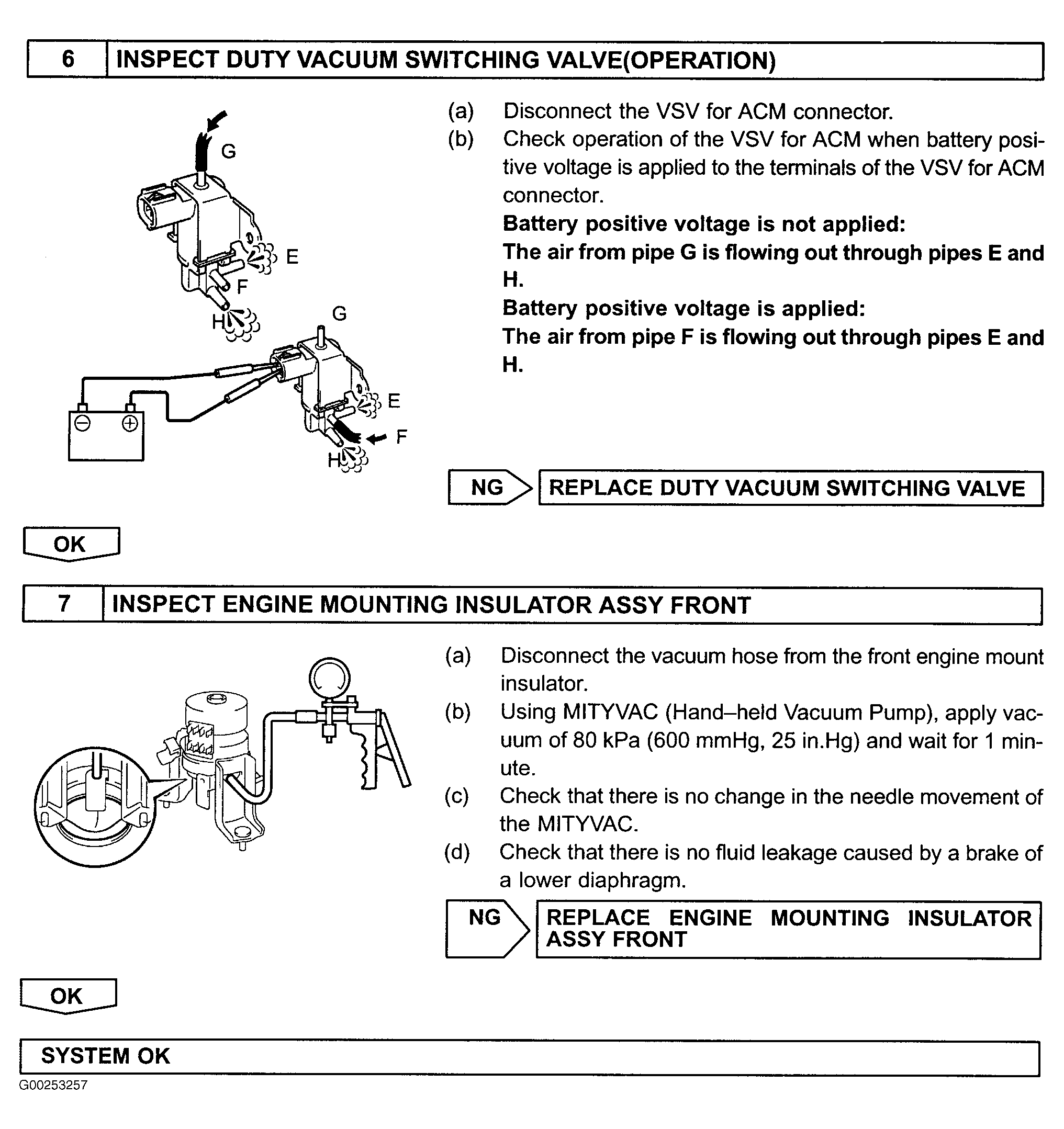

Fig 5: Testing Active Engine Control Mount Inspection - Steps 6-7 (Camry)
