- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. See Fig 1-Fig 11 .
- To test circuit opening relay continuity, using ohmmeter, check for continuity and no continuity between specified terminals on circuit opening relay. See Fig 12 and Fig 13 .
- To test circuit opening relay operation, apply battery voltage and ground to circuit opening relay and use ohmmeter to check for continuity between specified terminals on circuit opening relay. See Fig 12 and Fig 13 . Replace circuit opening relay if defective.

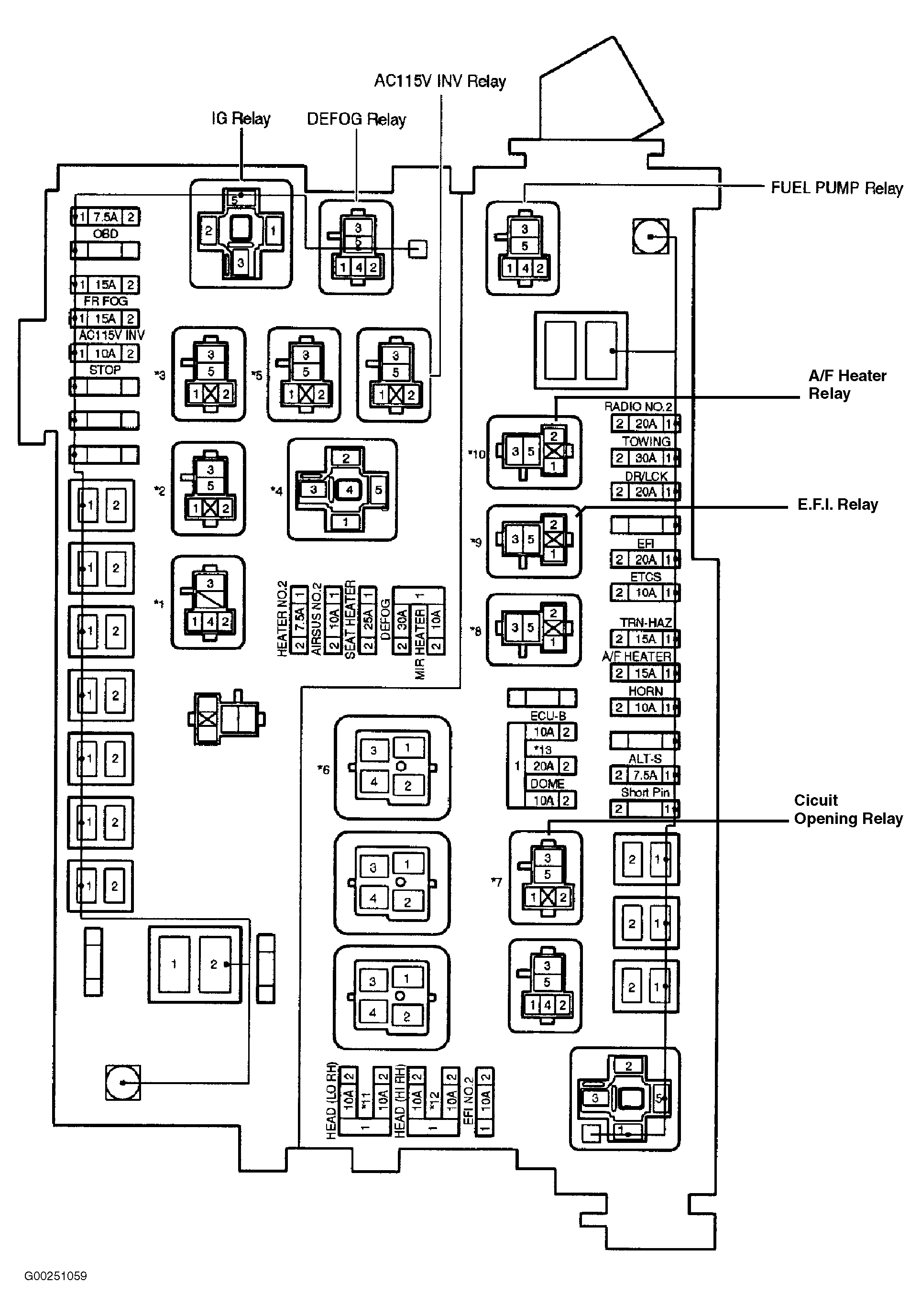

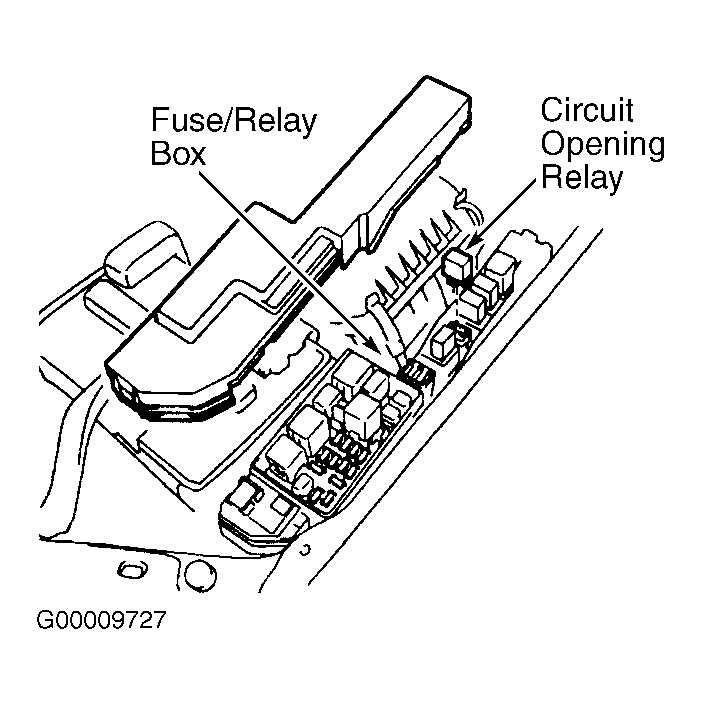

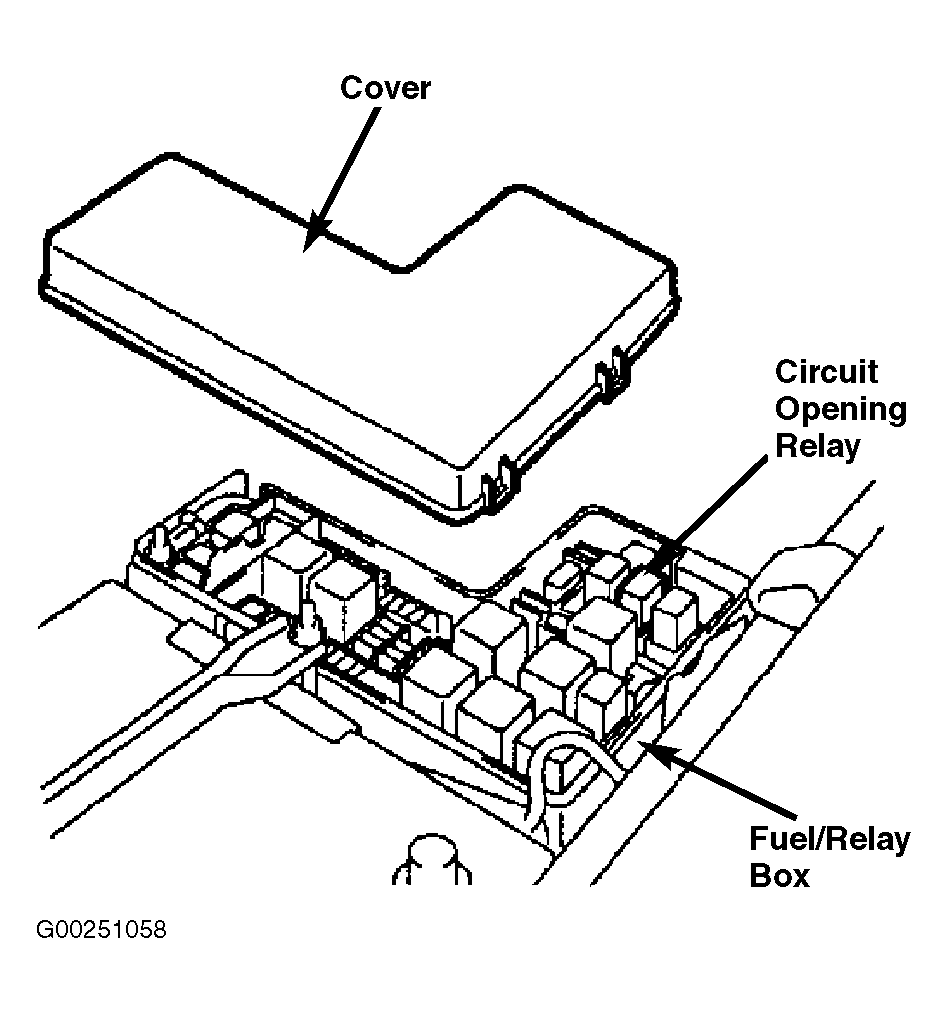

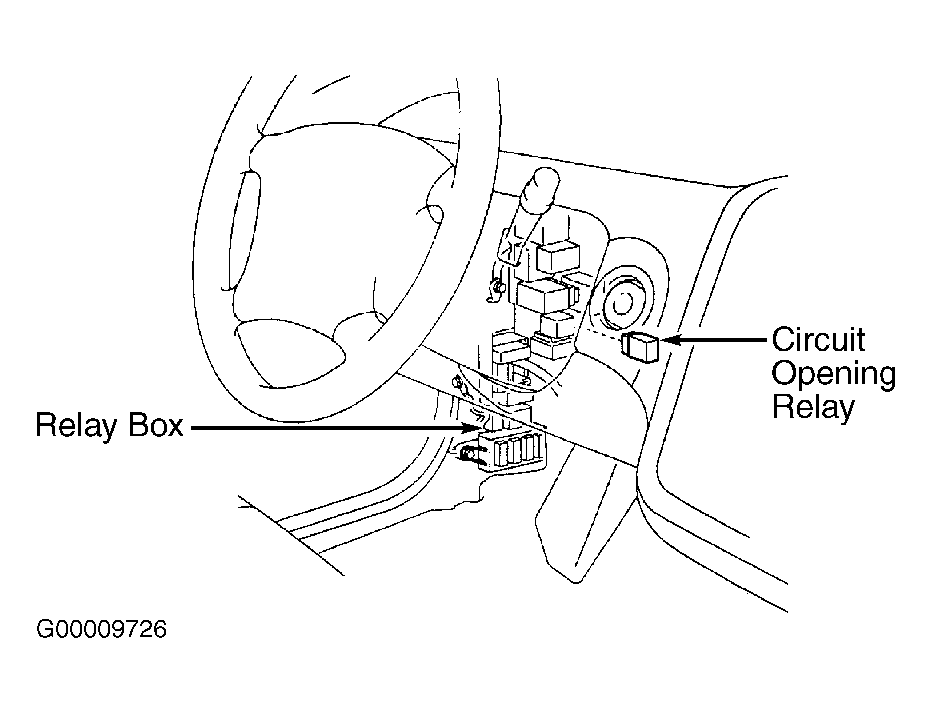

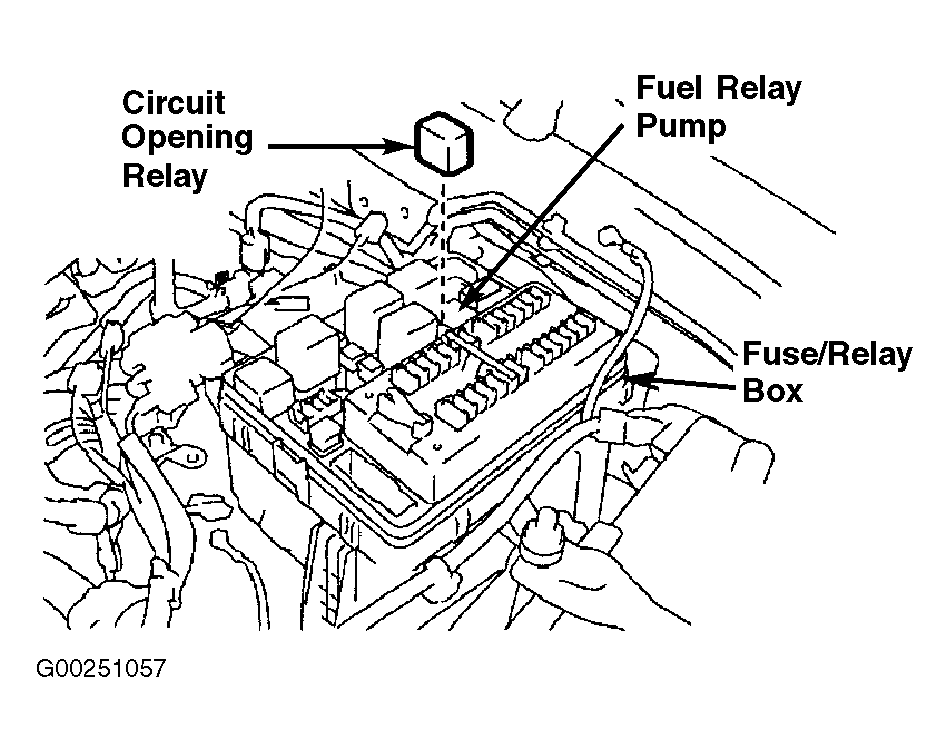

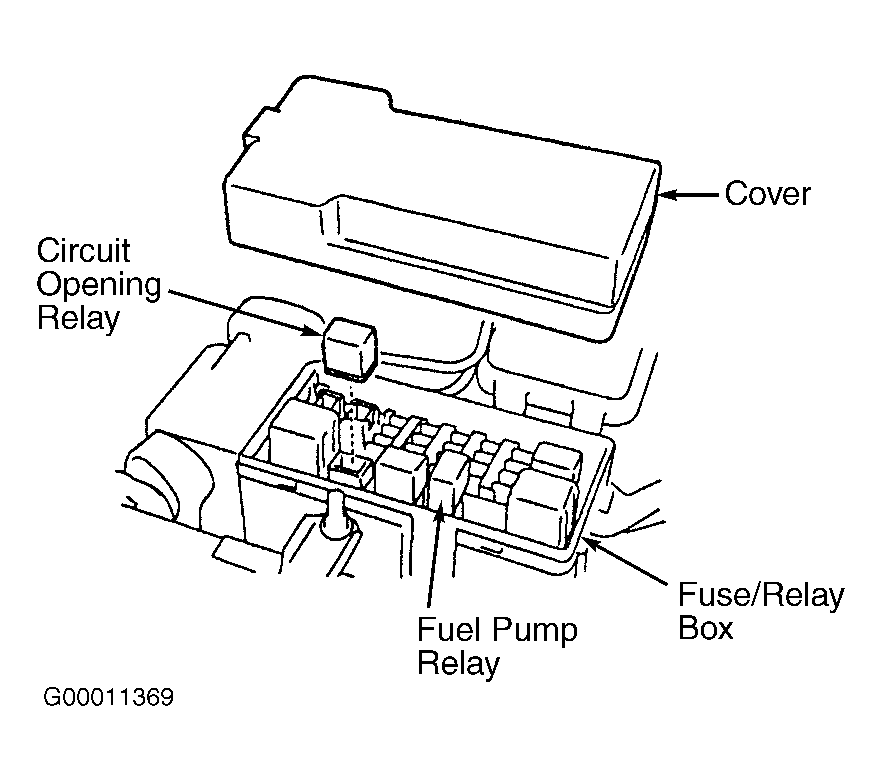

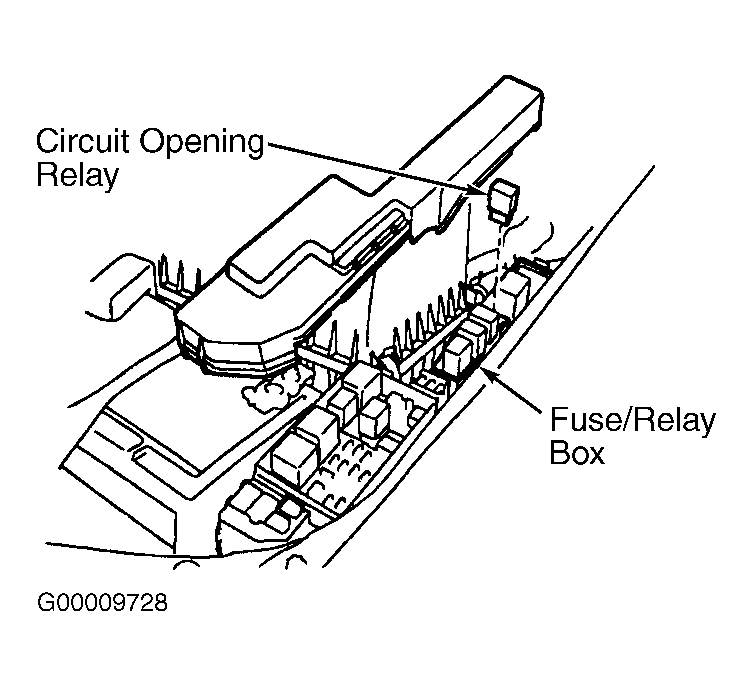

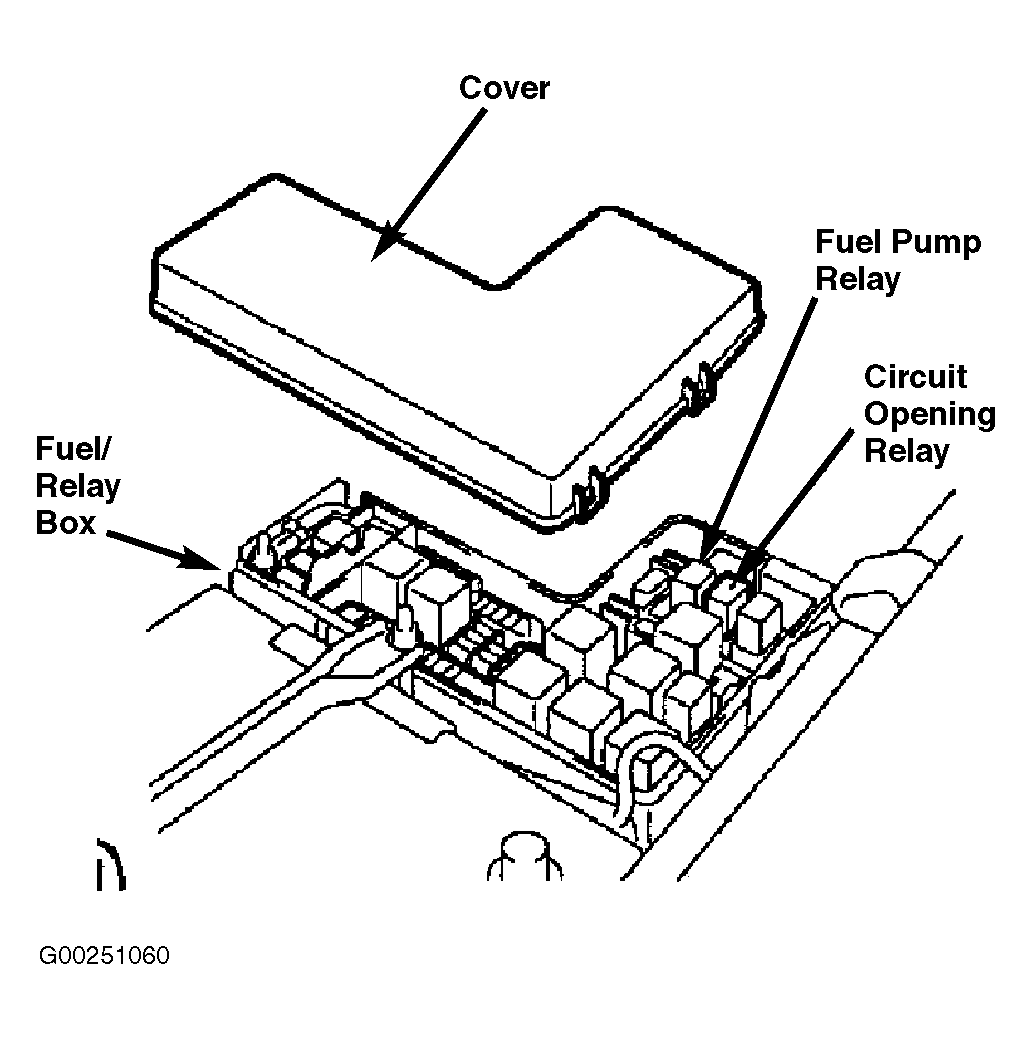

CIRCUIT OPENING RELAY LOCATION (1)
| Application | Location | ||
|---|---|---|---|
| Avalon | Top Corner Of Relay Box Behind Driver's Side Kick Panel | ||
| Camry & Camry Solara | In Fuse/Relay Box At Driver's Side Front Corner Of Engine Compartment | ||
| Highlander | In Relay Box Just Above Driver's Side Kick Panel | ||
| Land Cruiser | In Fuse/Relay Box At Driver's Side Front Corner Of Engine Compartment | ||
| Sequoia, Sienna & Tundra | In Fuse/Relay Box At Driver's Side Front Corner Of Engine Compartment | ||
| Tacoma | Behind Lower Instrument Panel Cover, Next To Driver's Side Of Steering Column | ||
| 4Runner | In Fuse/Relay Box At Driver's Side Front Corner Of Engine Compartment | ||
|
|||
