Circuit Description
WARNING: This page is about a different car, the 2002 Lexus GS 430 and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

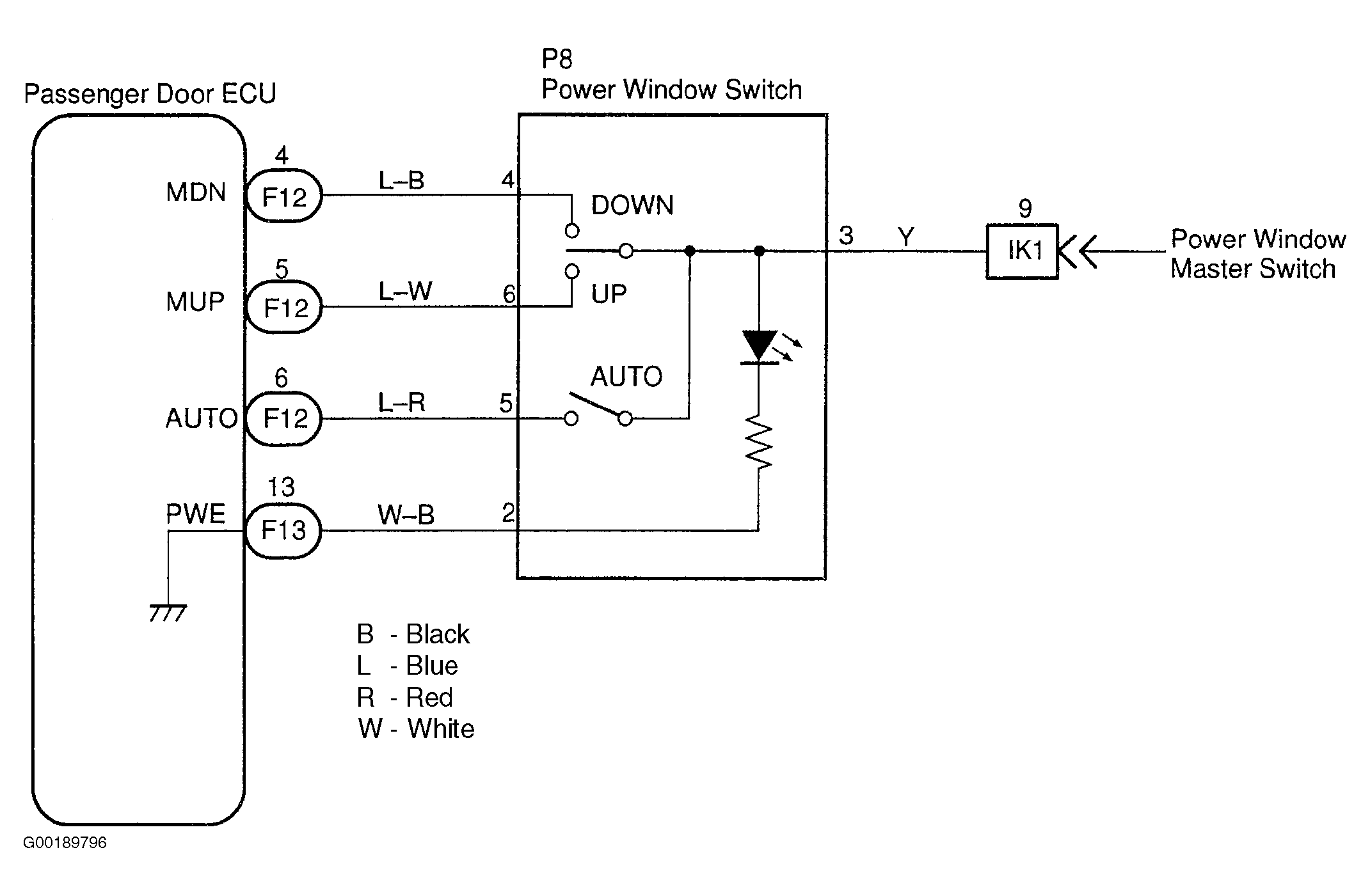

For the passenger door power window switch circuit diagram, see Fig 1.
