Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Figure. For testing procedure, see Fig 1 - Fig 3 .

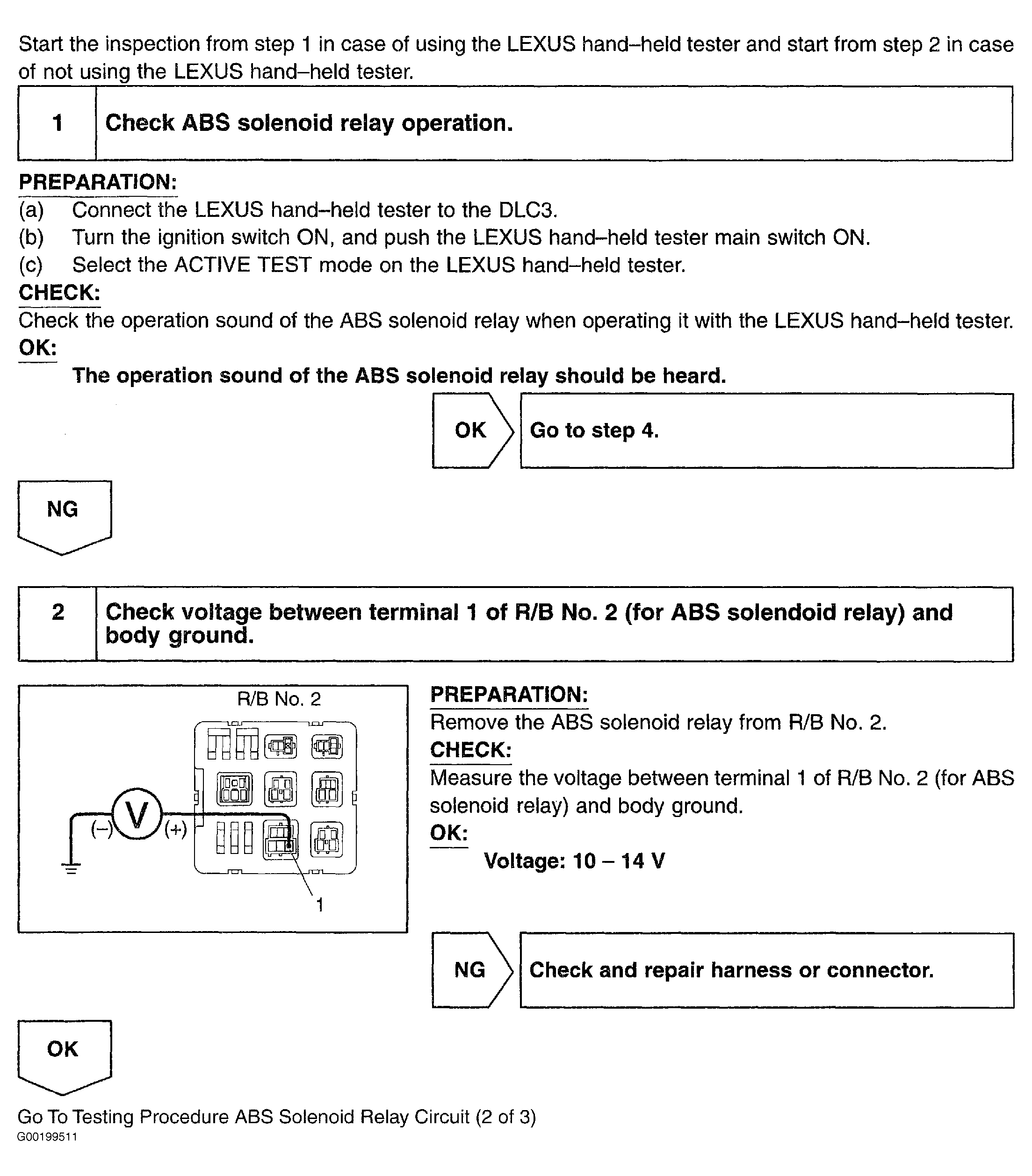

Fig 1: Testing Procedure ABS Solenoid Relay Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

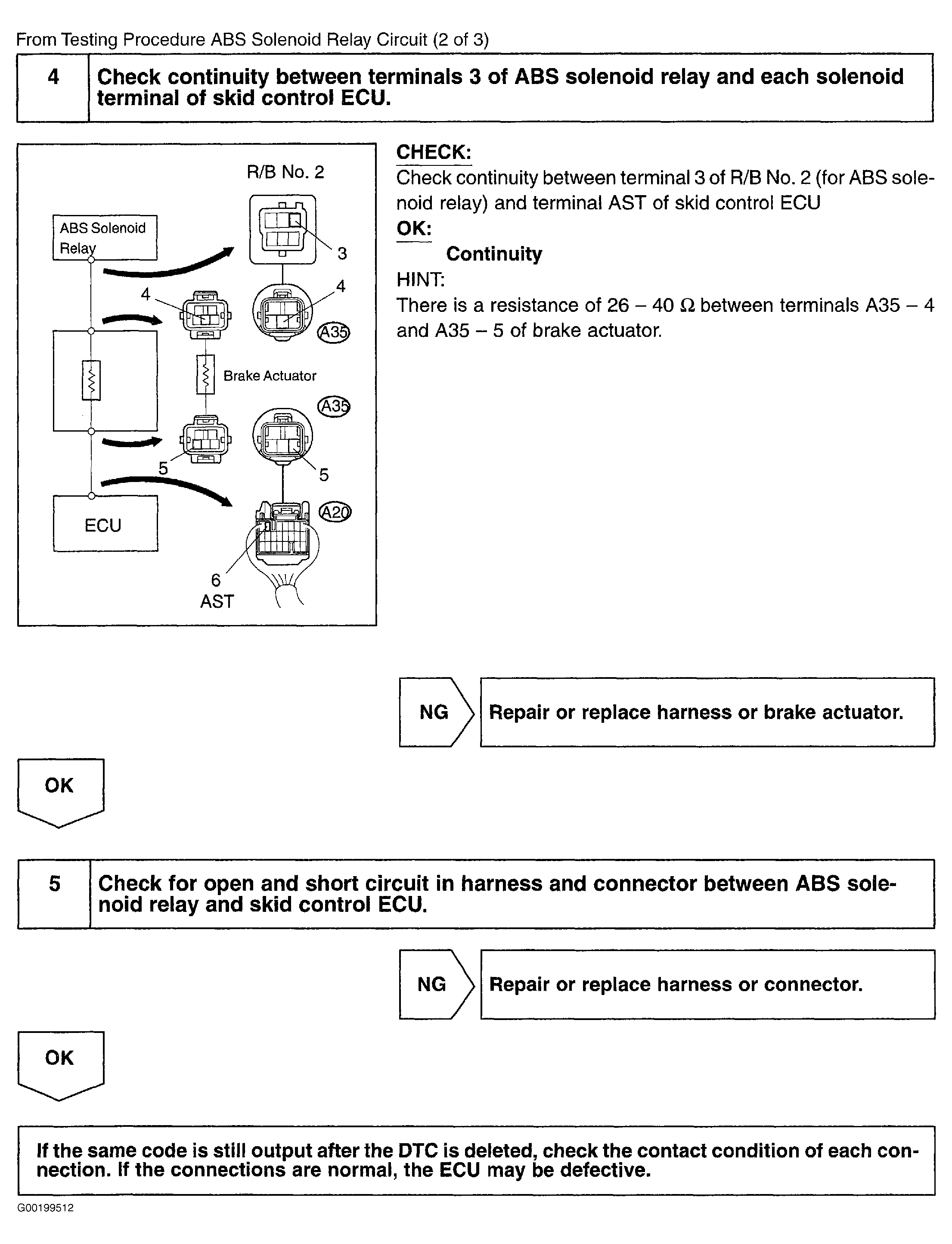

Fig 2: Testing Procedure ABS Solenoid Relay Circuit (2 Of 3)

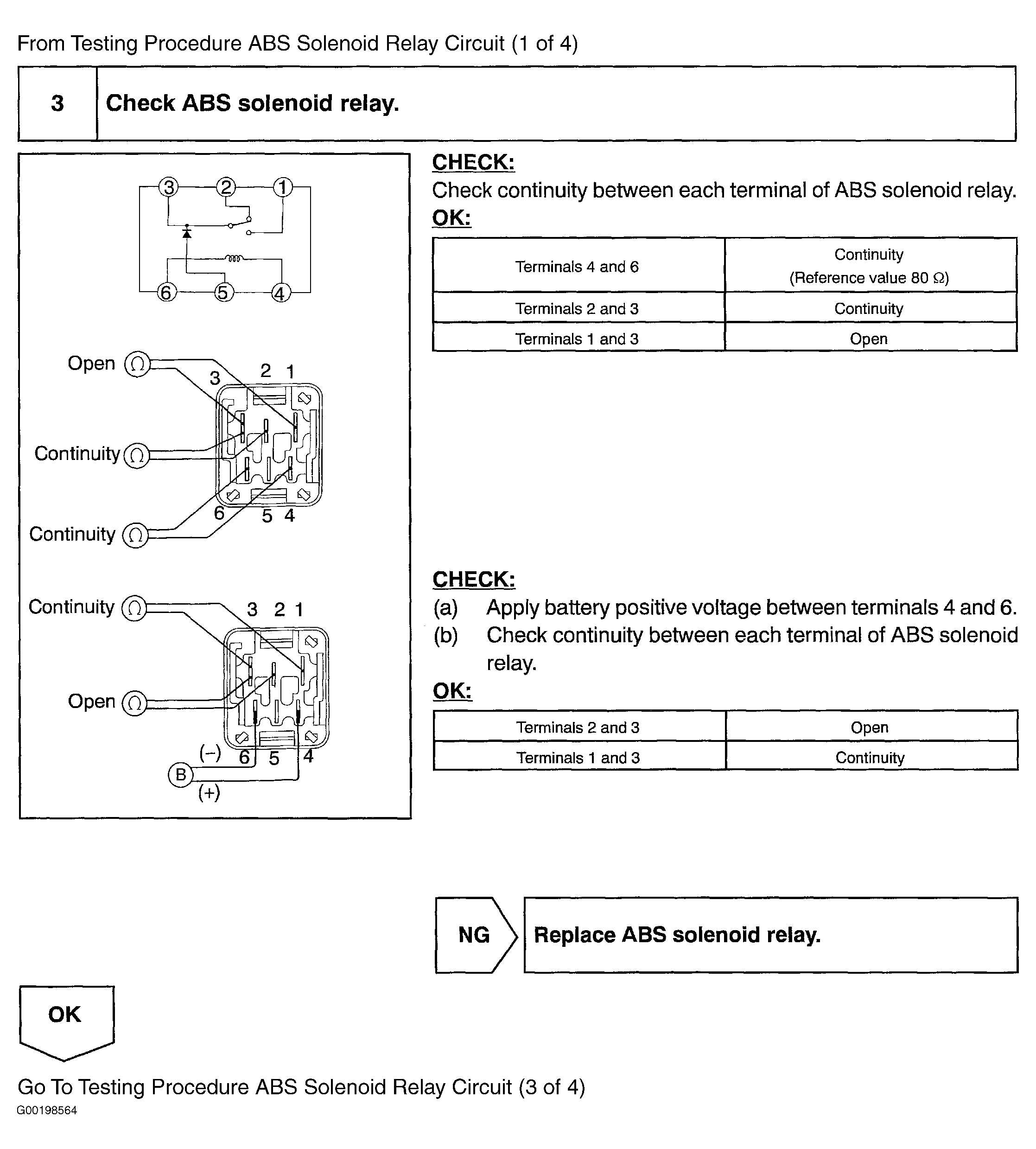

Fig 3: Testing Procedure ABS Solenoid Relay Circuit (3 Of 3)
