Removal & Installation
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- Using screwdriver with tape applied to tip, pry up and remove inside door handle bezel cover. Remove inside door handle bezel screw. Using screwdriver with tape applied to tip, pry at rear corners and remove door handle bezel. Remove courtesy light. See Figure.

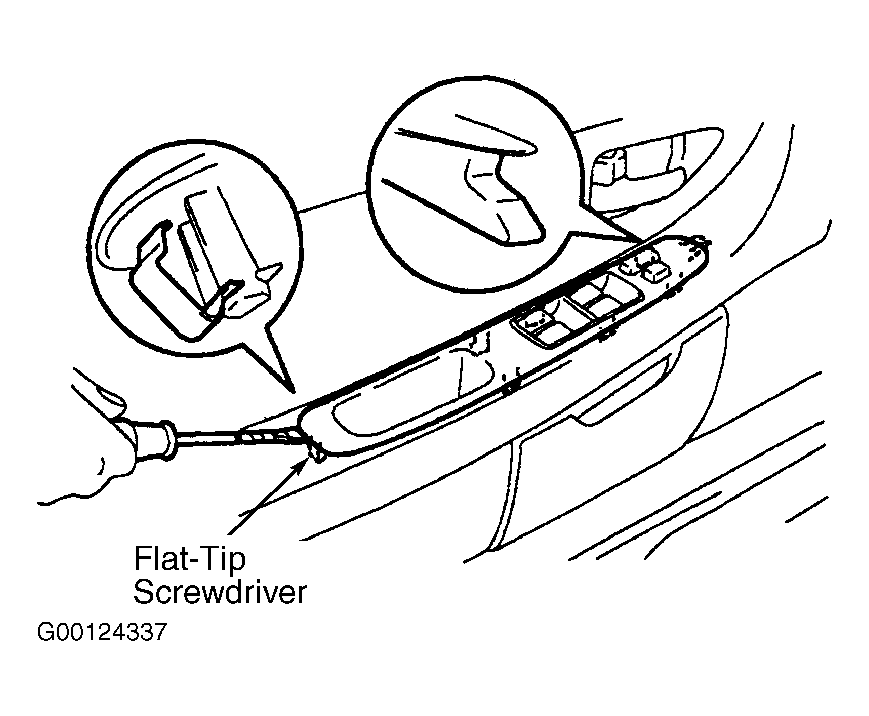

- Remove armrest base panel with door control ECU (power window switch) by prying up at rear of panel. See Fig 1. Remove 2 caps from upper front of door trim panel. Remove 6 screws and 2 clips from door trim panel. Remove interior door trim panel by pulling upward. See Figure.
- Using screwdriver with tape applied to tip, remove lower frame bracket garnish. See Fig 2. Remove outside rearview mirror. Disconnect electrical harness connector. Remove 3 power mirror retaining nuts and remove power mirror assembly. To install power mirror assembly, reverse removal procedures. Tighten power mirror retaining nuts to specifications. See TORQUE SPECIFICATIONS .
