Rear Wheel Alignment

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Measure vehicle height (see MEASURE VEHICLE HEIGHT ) .
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.
Inspect camber .

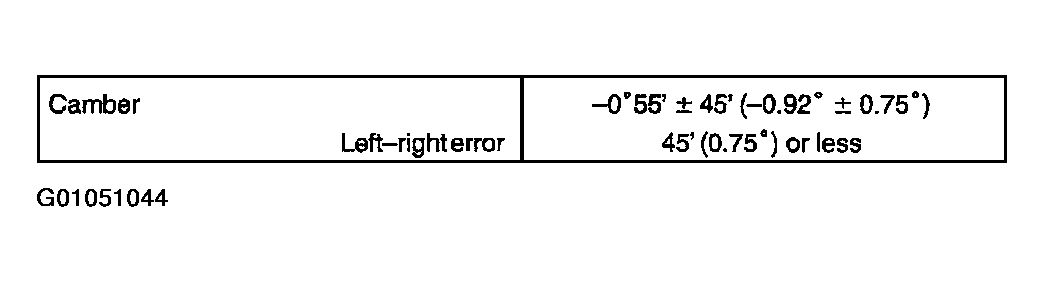

Fig 1: Identifying Camber Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Camber is not adjustable. If the measurement is not within the specifications, inspect the suspension parts for damaged and/or worn-out and replace them if necessary.
Inspect toe-in .

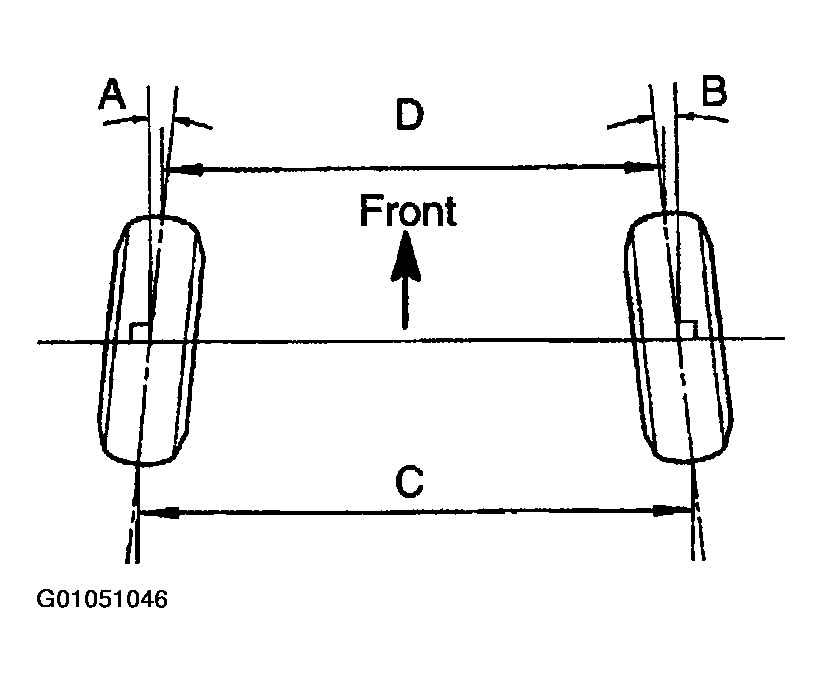

Fig 2: Identifying Toe-In Measurements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

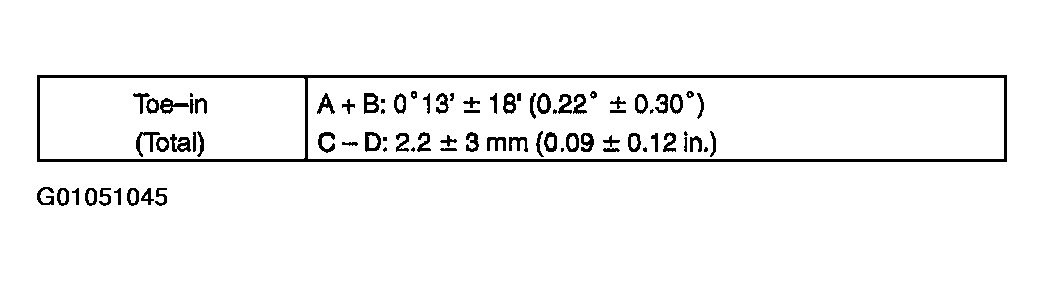

Fig 3: Identifying Toe-In Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. If the toe-in is not within the specification, inspect and replace the suspension parts as necessary.
