DTC 21: Open Vehicle Speed Sensor Circuit

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

For DTC 21 diagnosis, see Fig 1-Fig 3 .

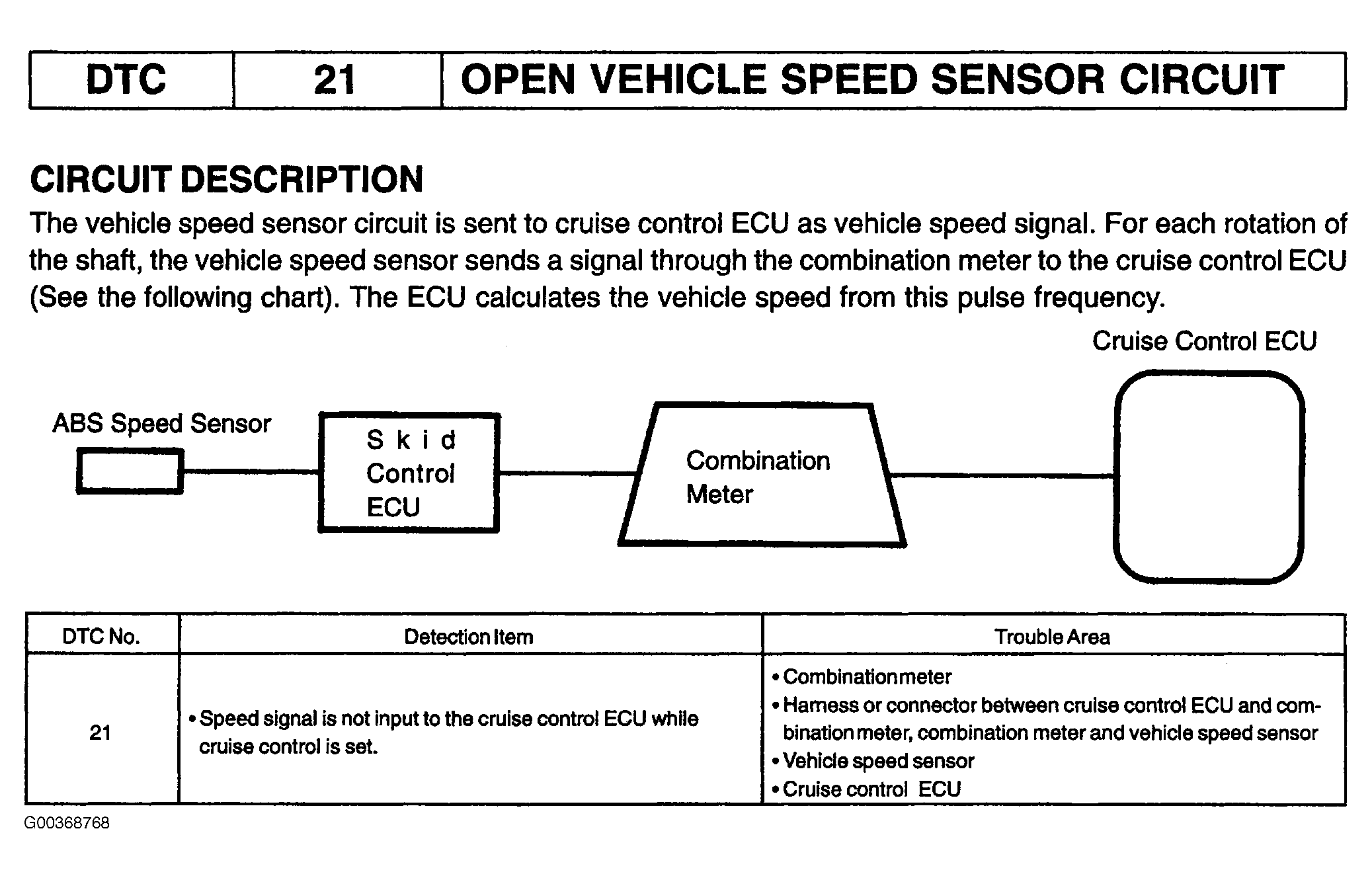

Fig 1: Diagnosing DTC 21 (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

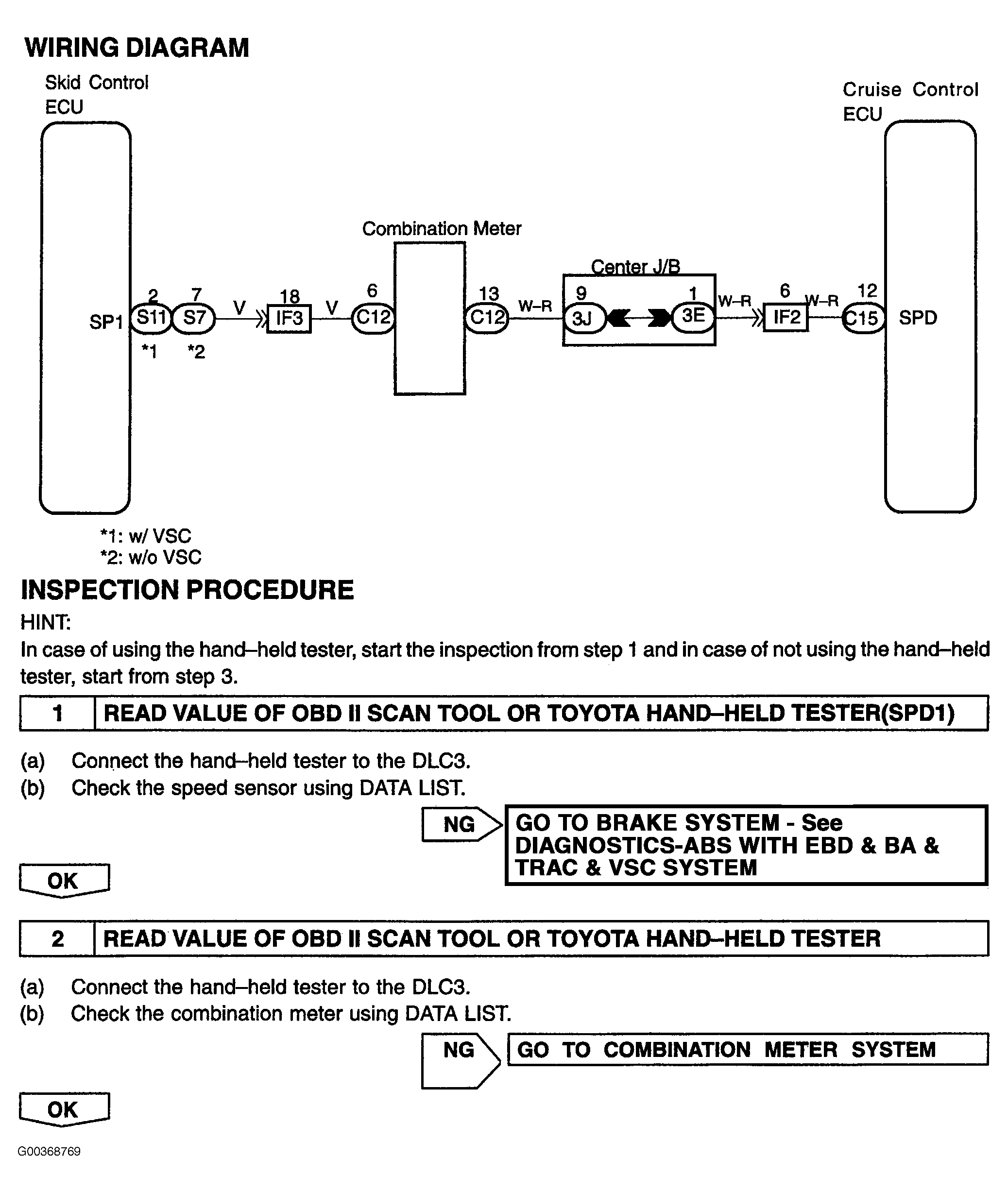

Fig 2: Diagnosing DTC 21 (2 Of 3)

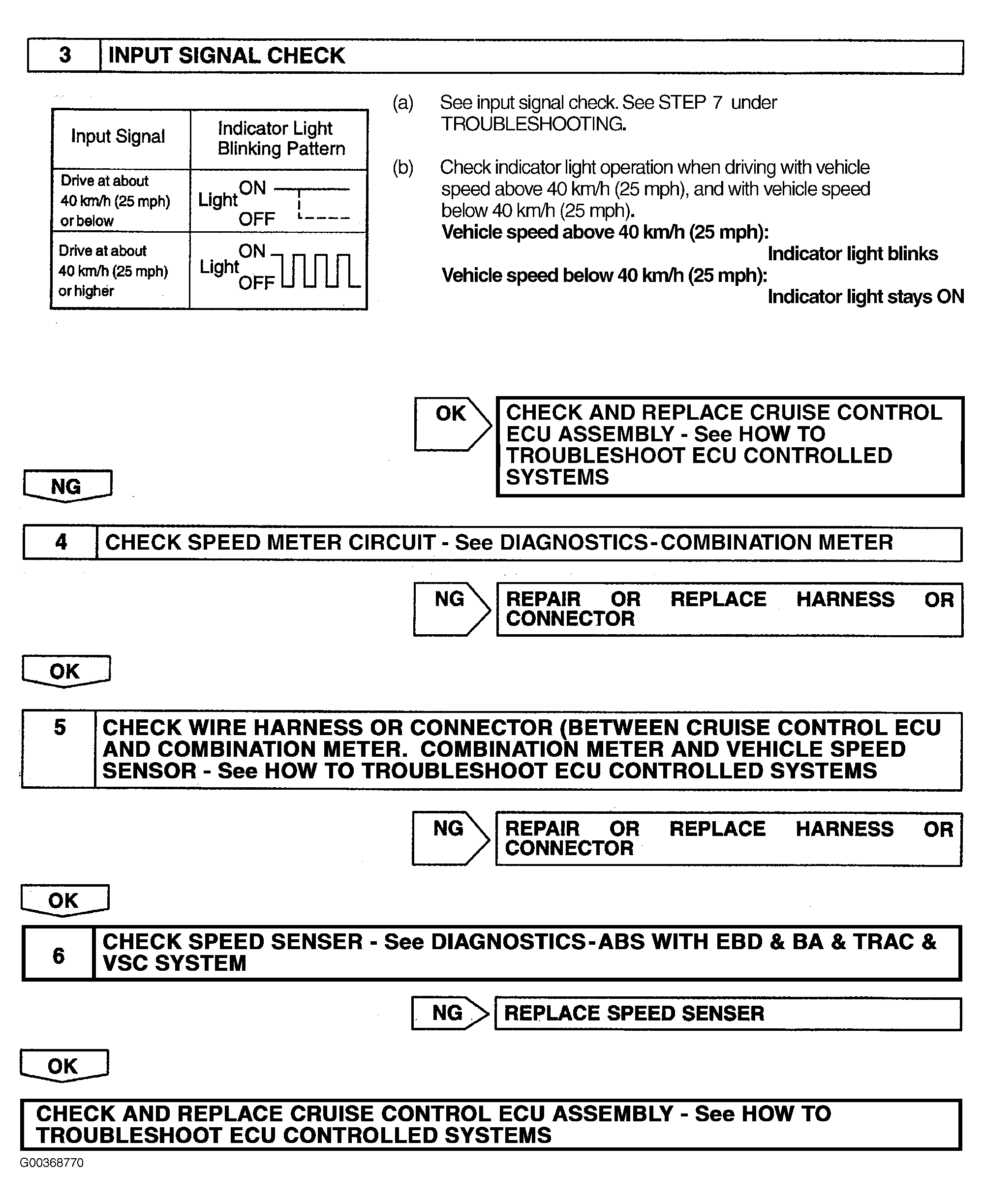

Fig 3: Diagnosing DTC 21 (3 Of 3)
