Cruise Control Main Switch

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Precaution.
  2. Separate battery negative terminal.
  3. Place front wheels facing straight ahead.
  4. Remove horn button assy. See SUPPLEMENTAL RESTRAINT SYSTEM - HORN BUTTON ASSEMBLY. .
  5. Remove steering wheel assy. See STEERING COLUMN - STEERING COLUMN ASSY . (SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021) 82010-01)
  6. Remove steering wheel boss cover low:
    1. Remove the 2 screws and steering wheel damper. See Fig 1.
    2. Remove the 3 screws and steering boss cover lower. See Fig 2.
  7. Remove cruise control main switch assy:
    1. Remove the 2 screws and cruise control main switch assy. See Fig 3.
  8. Center spiral cable.
  9. Install steering wheel assy. See STEERING COLUMN - STEERING COLUMN ASSY .
  10. Steering wheel center point.
  11. Inspect horn button assy. See SUPPLEMENTAL RESTRAINT SYSTEM - HORN BUTTON ASSEMBLY .
  12. Install horn button assy. See SUPPLEMENTAL RESTRAINT SYSTEM - HORN BUTTON ASSEMBLY .
  13. Inspect SRS warning light. See AIR BAG WARNING LIGHT CHECK in DIAGNOSTICS in SUPPLEMENTAL RESTRAINING SYSTEM article.
Fig 1: Removing Steering Wheel Damper
G00368811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Removing Steering Boss Cover Lower
G00368812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

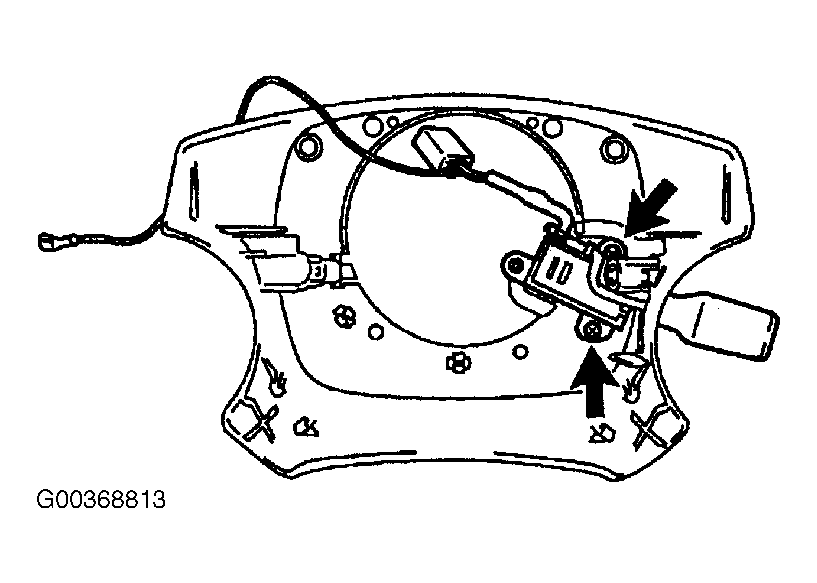

Fig 3: Removing Cruise Control Main Switch
G00368813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
