DTC P1565/32: Control Switch Circuit (Cruise Control Switch)

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For DTC P1565/32 diagnosis, see Fig 1-Fig 3 . For cruise control switch resistance values, see Fig 4.

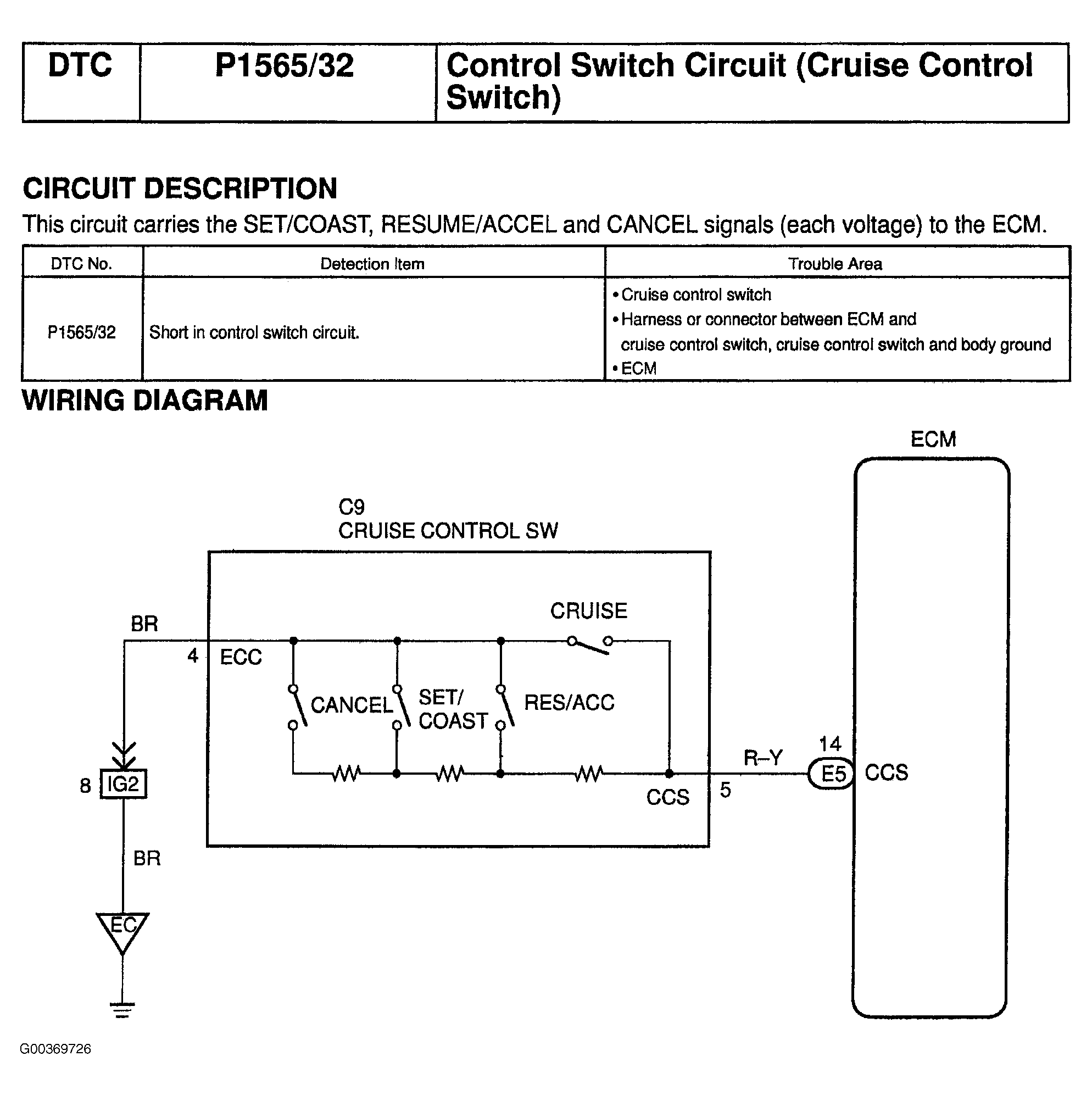

Fig 1: Diagnosing DTC P1565/32 (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

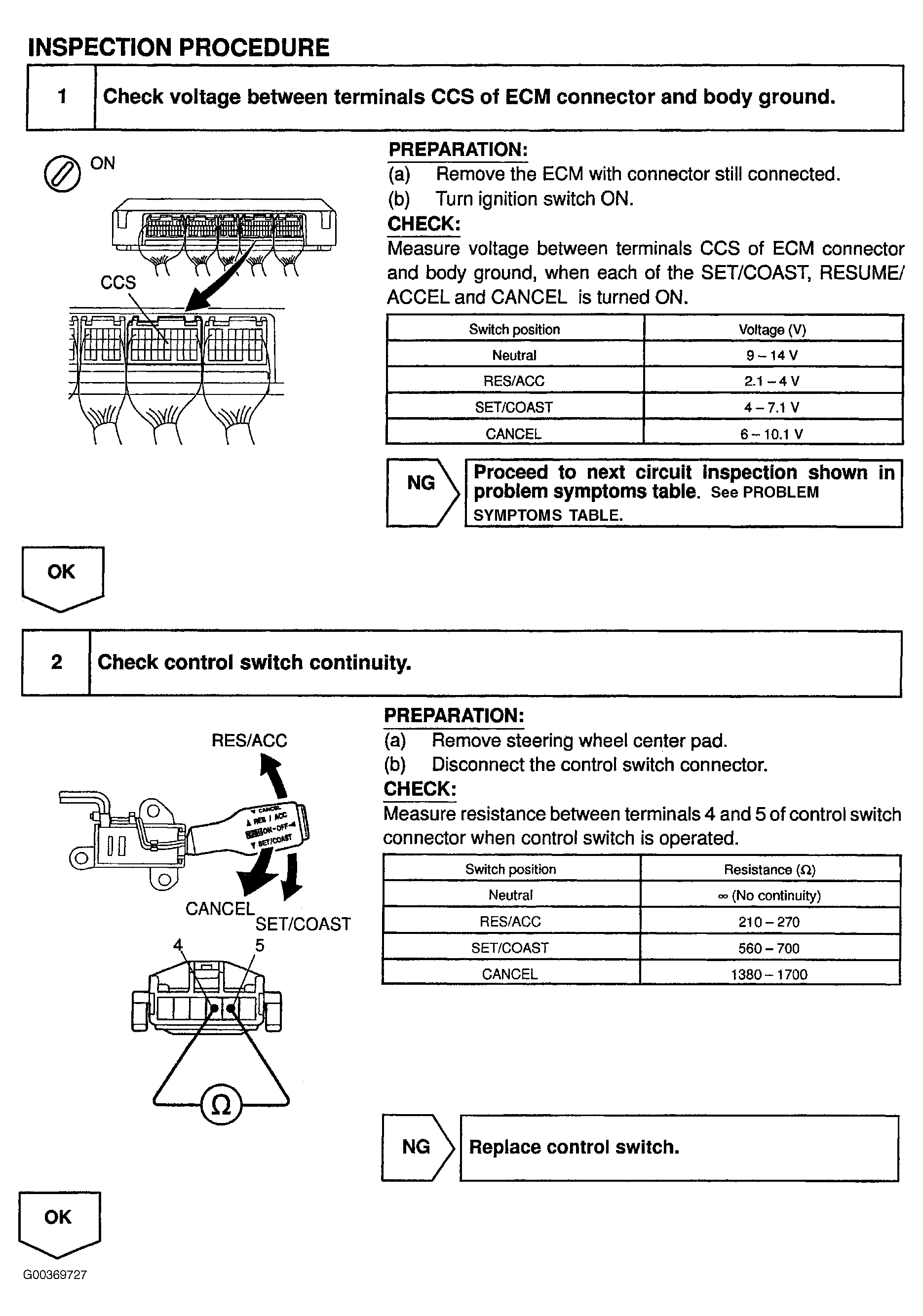

Fig 2: Diagnosing DTC P1565/32 (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

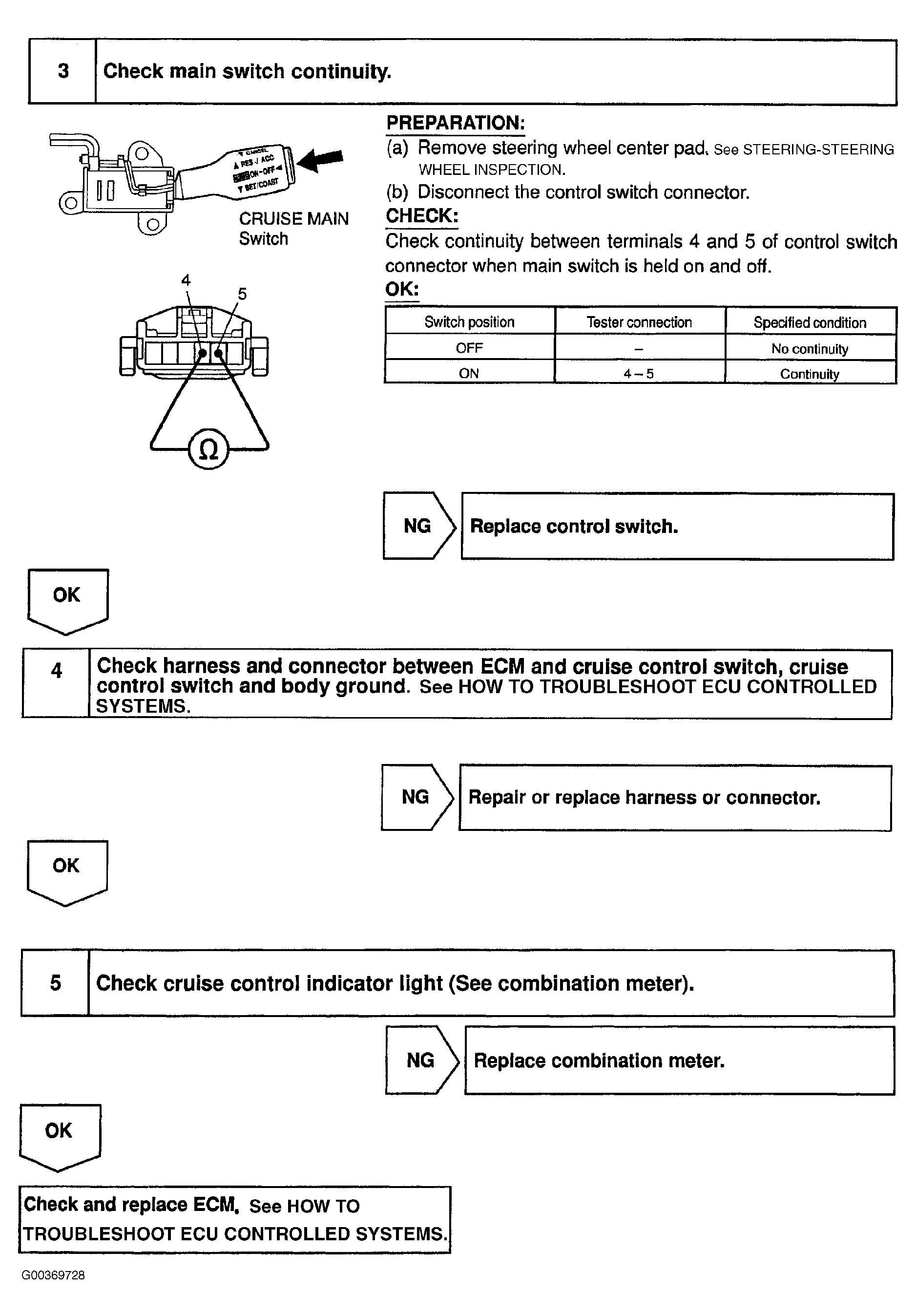

Fig 3: Diagnosing DTC P1565/32 (3 Of 3)

Fig 4: Identifying ECM & Cruise Control Switch Terminal Readings
