DTC P1120 - Information Codes 106, 109, 110, 111, 112, 113, 114: Notes

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

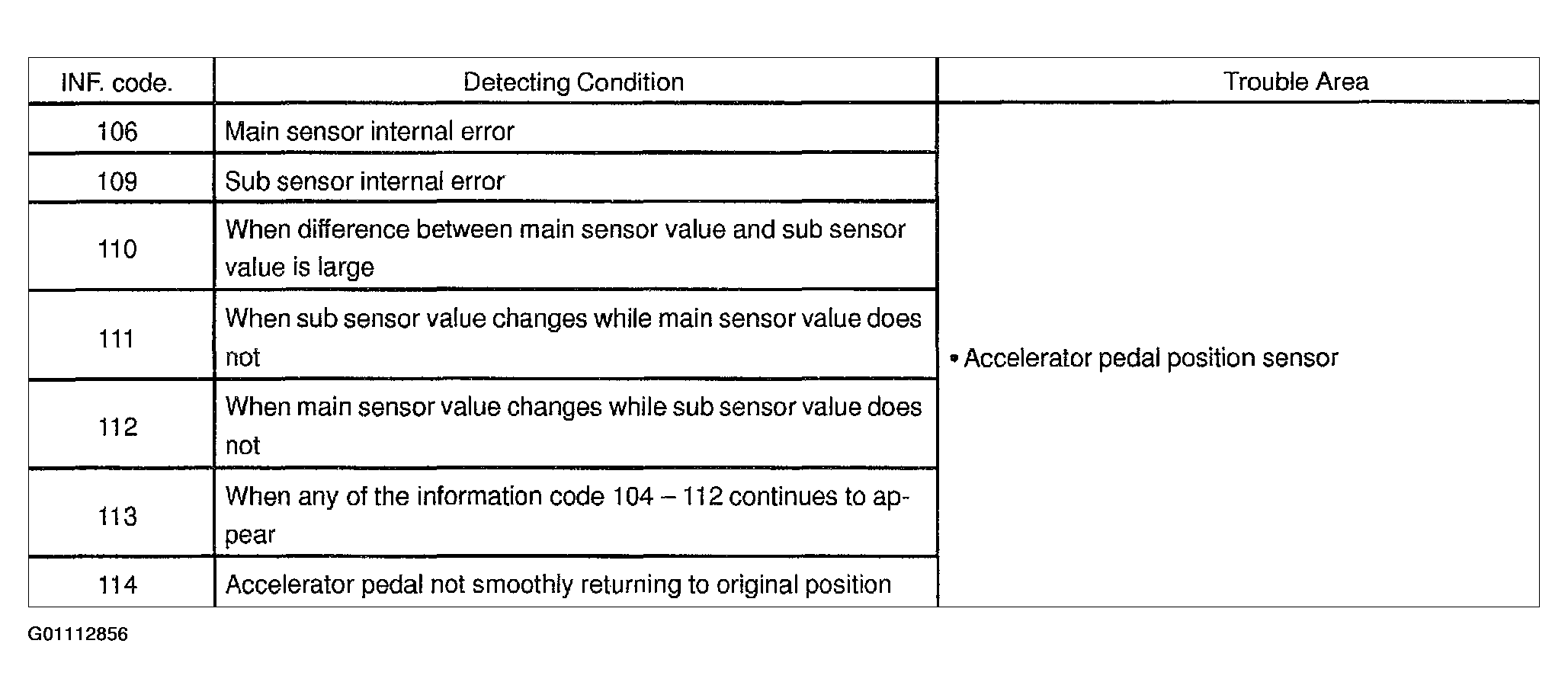

Fig 1: Identifying DTC P1120 Trouble Areas (Information Codes 106 & 109-114)
G01112856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
