DTC P1520 - Information Code 115

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

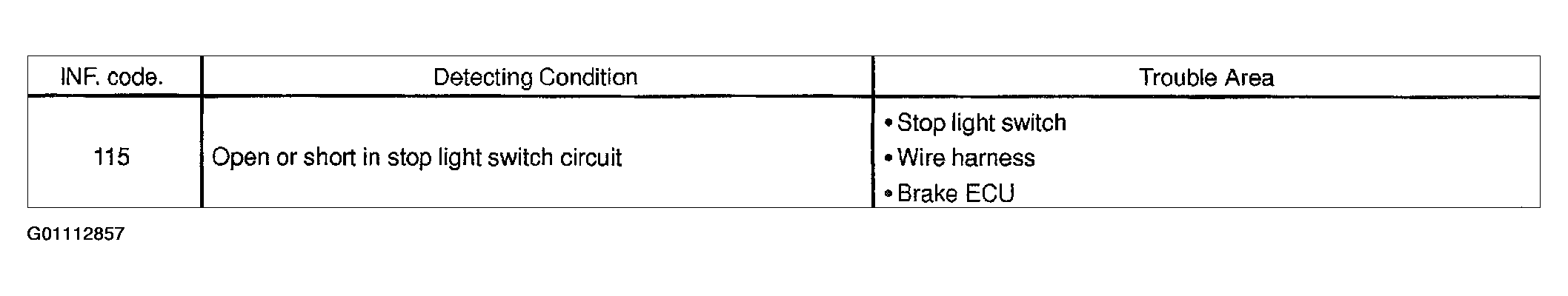

Fig 1: Identifying DTC P1520 Trouble Areas (Information Code 115)
G01112857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
