DTC P3120 - Information Codes 247, 249

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

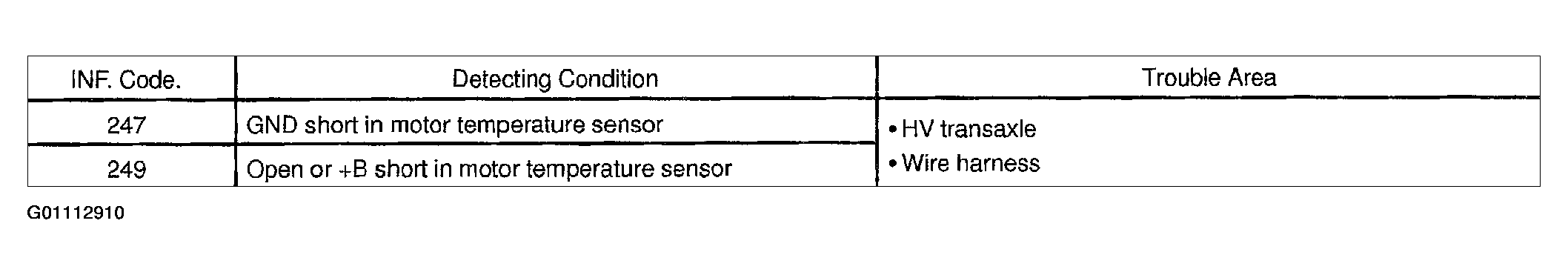

Fig 1: Identifying DTC P3120 Trouble Areas (Information Codes 247 & 249)
G01112910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
