(d) - Clear The DTC After Completion Of Repair.

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the TOYOTA hand-held tester to the DLC3.

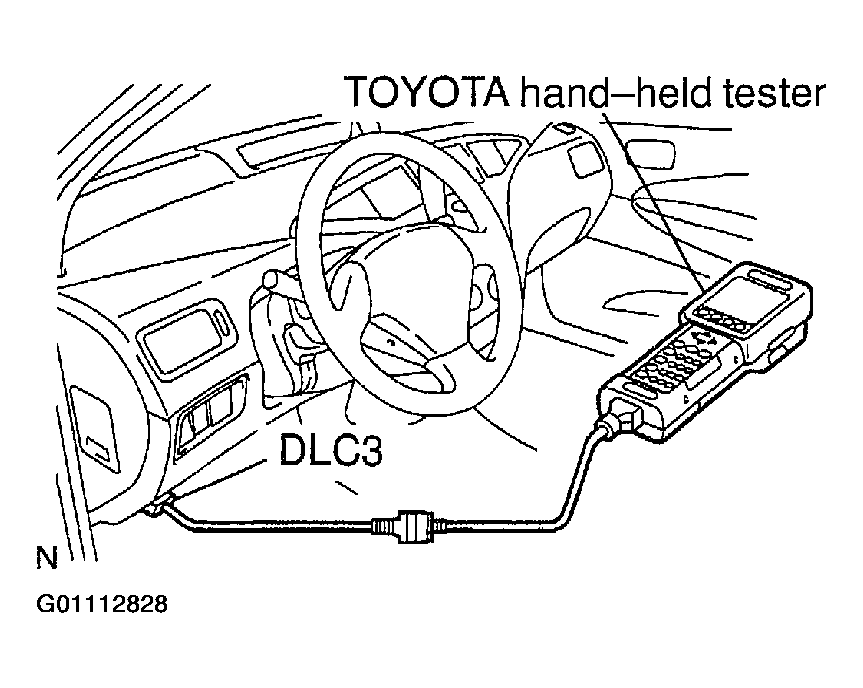

    Fig 1: Connecting Hand Held Tester To DLC3
    G01112828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Before clearing, check that DTCs and freeze frame data of the HV ECU and the ECU related to the operation history data are recorded.

  2. Operate the TOYOTA hand-held tester to erase the DTC (See the hand-held tester operator's manual).
