Step 7 - Connect No. 2 Intermediate Shaft Assembly

WARNING: This page is about a different car, the 2002 Toyota Prius and 2001 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Align the matchmarks on the No. 2 intermediate shaft assembly and control valve shaft.

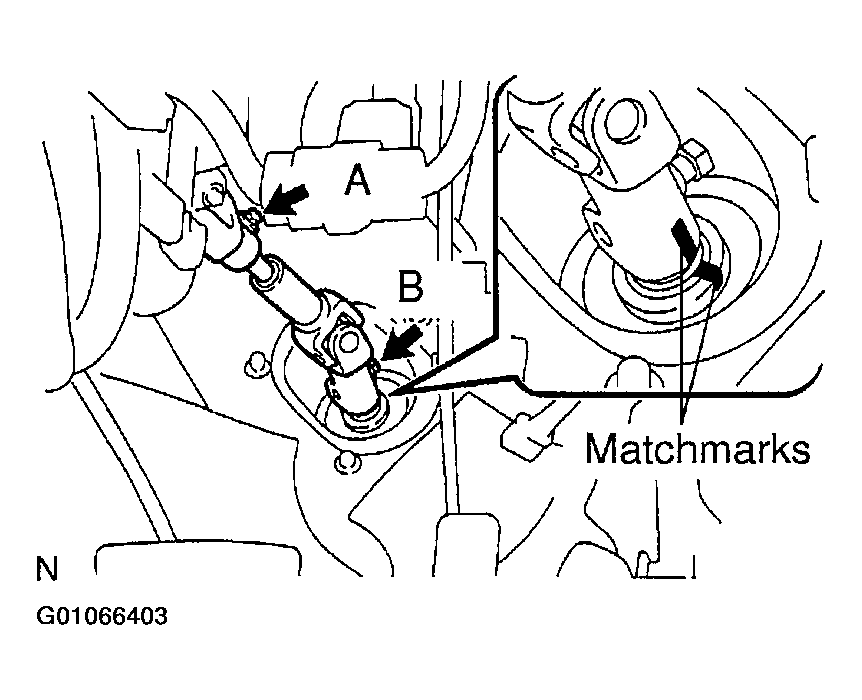

Fig 1: Locating No. 2 Intermediate Shaft Matchmarks & Identifying Bols A & B
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the bolt "B" and torque the bolt "A".
Torque: 35 N.m (360 kgf.cm, 26 ft.lbf) .
