Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when communication stops between gateway ECU and body ECU.

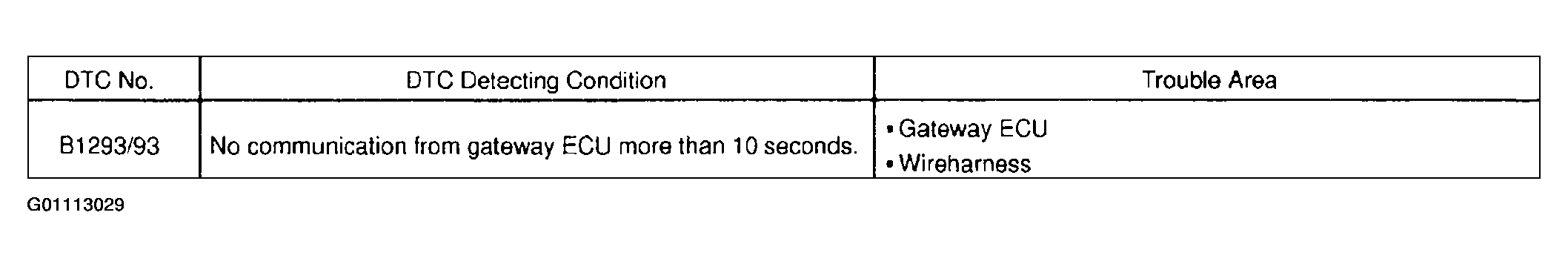

Fig 1: Identifying DTC B1293/93, Detected Condition & Trouble Area
G01113029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
