Blower Unit Disassembly

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Remove air refiner filter .
Remove the screw and blower motor control.

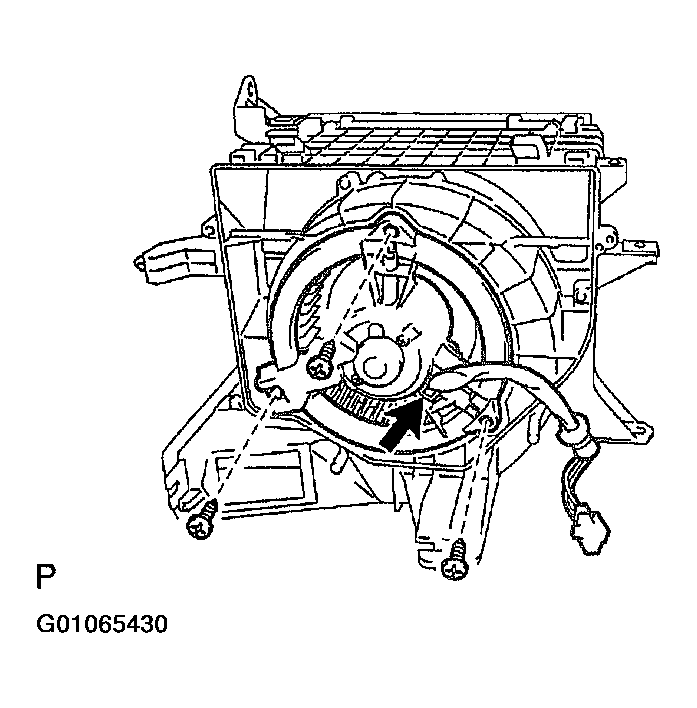

Fig 1: Locating Blower Motor Control Mounting Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove blower motor :
1. Remove the 4 screws and 2 clips.

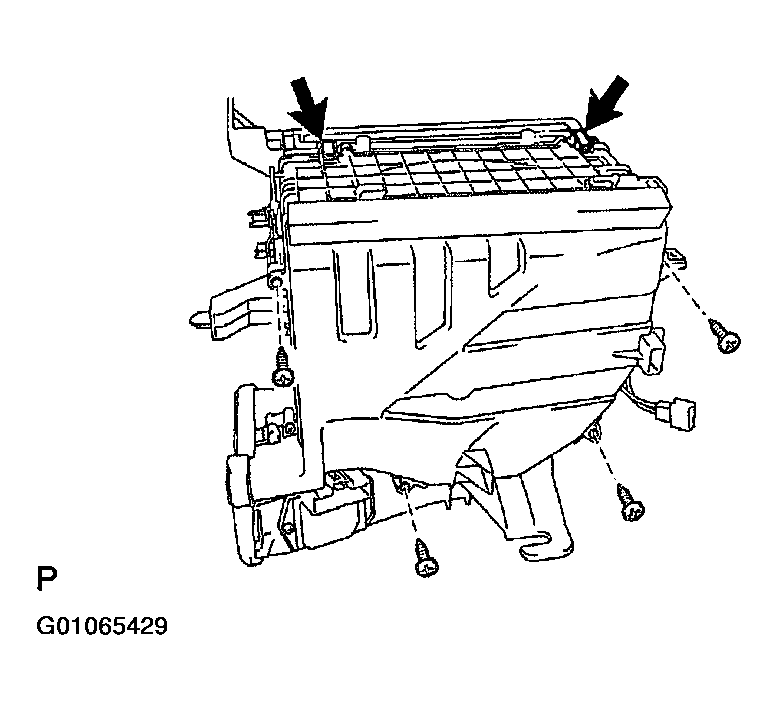

  Fig 2: Locating Blower Motor Case Mounting Screws & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the blower case.
3. Disconnect the connector.
4. Remove the 3 screws and blower motor.

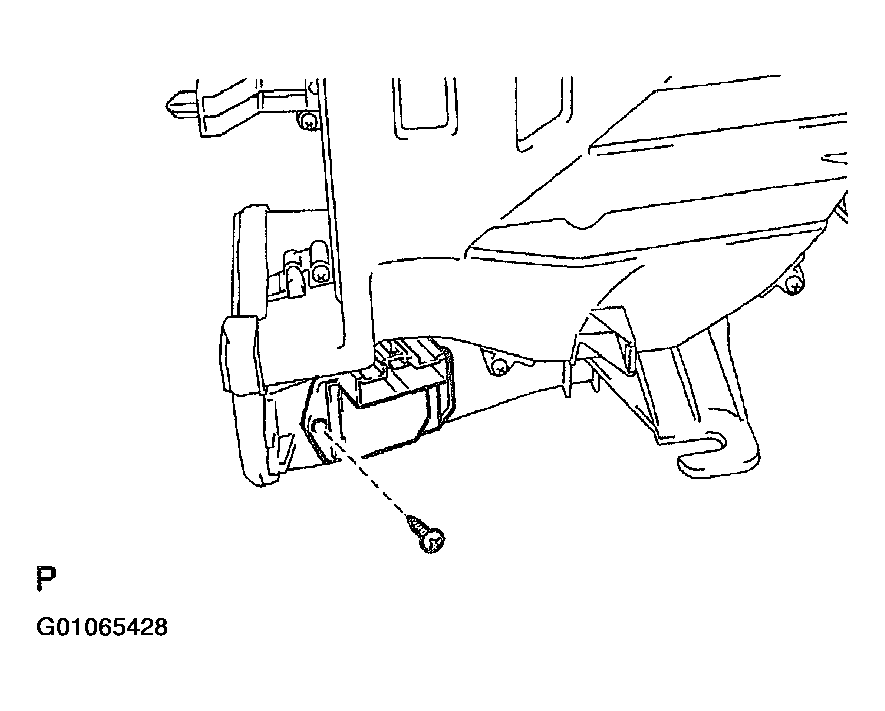

  Fig 3: Locating Blower Motor Mounting Screws & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 3 screws and air inlet servomotor .

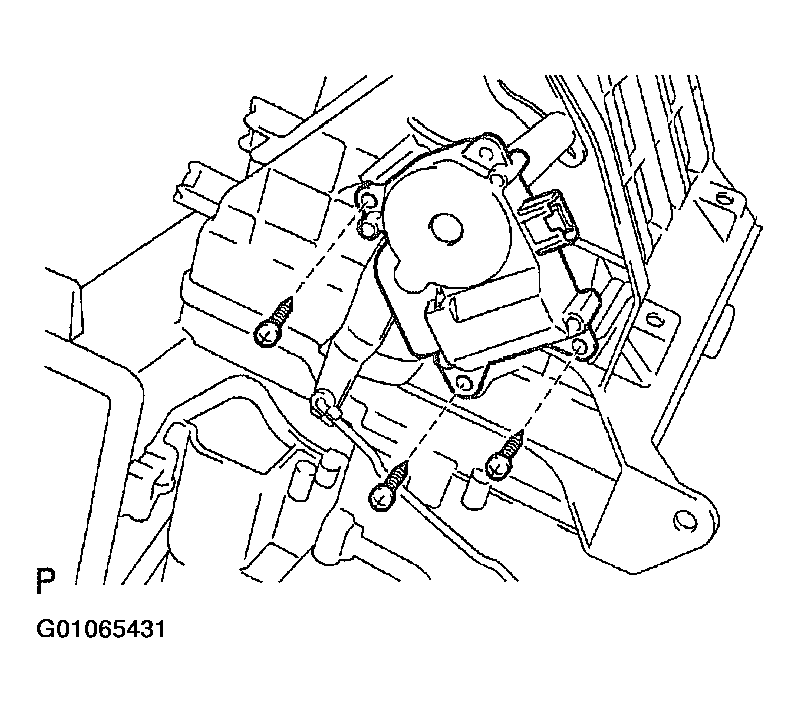

Fig 4: Locating Air Inlet Servomotor Mounting Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
