How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When DTCs other than U0073/94, U0123/62, U0124/95 and U0126/63 are output, inspect and repair the trouble areas indicated by those DTCs.

Perform troubleshooting in accordance with the procedure in PRECAUTION .

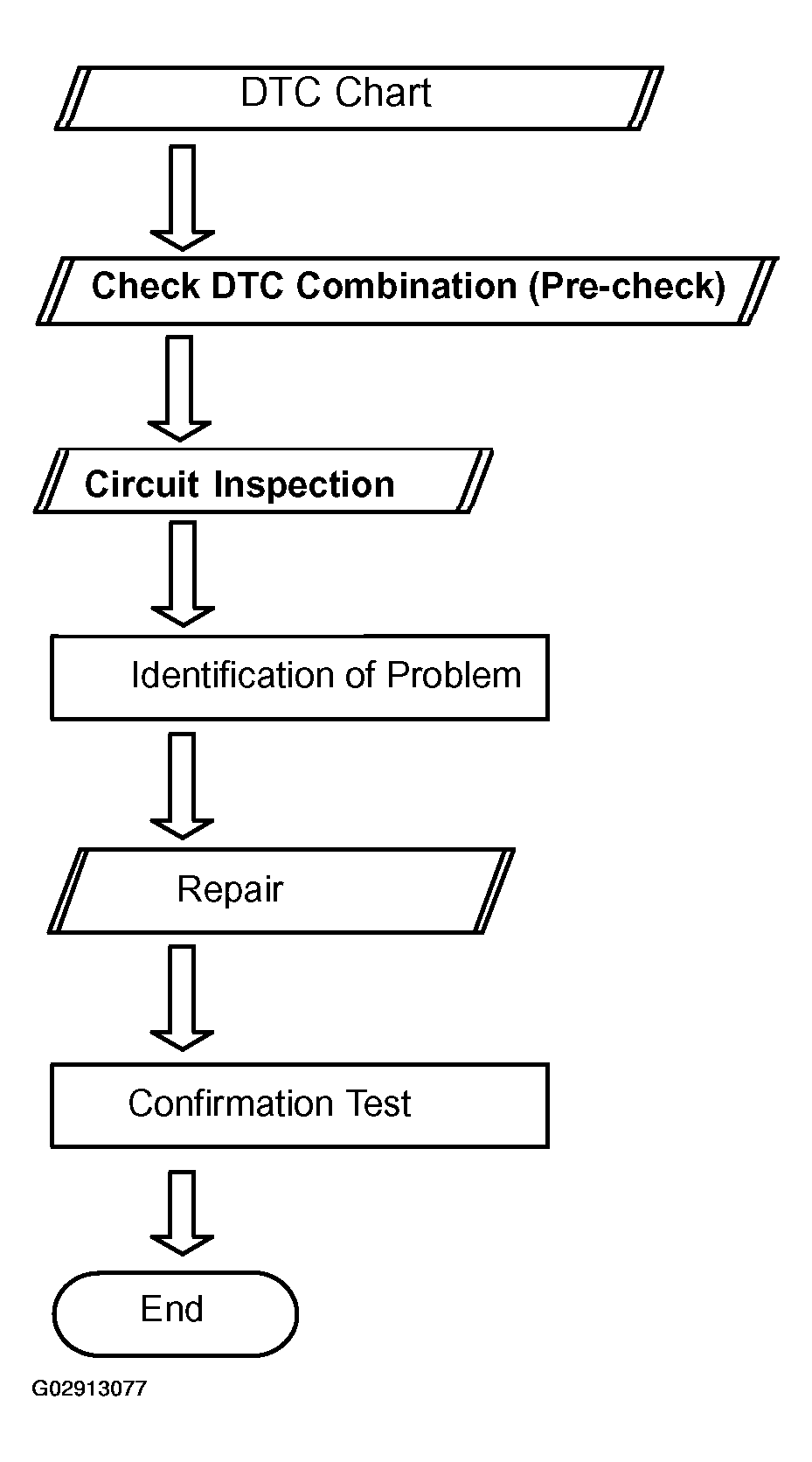

Fig 1: Troubleshooting Chart
G02913077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
