Section 501 (Engine Cooling System): Radiator: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

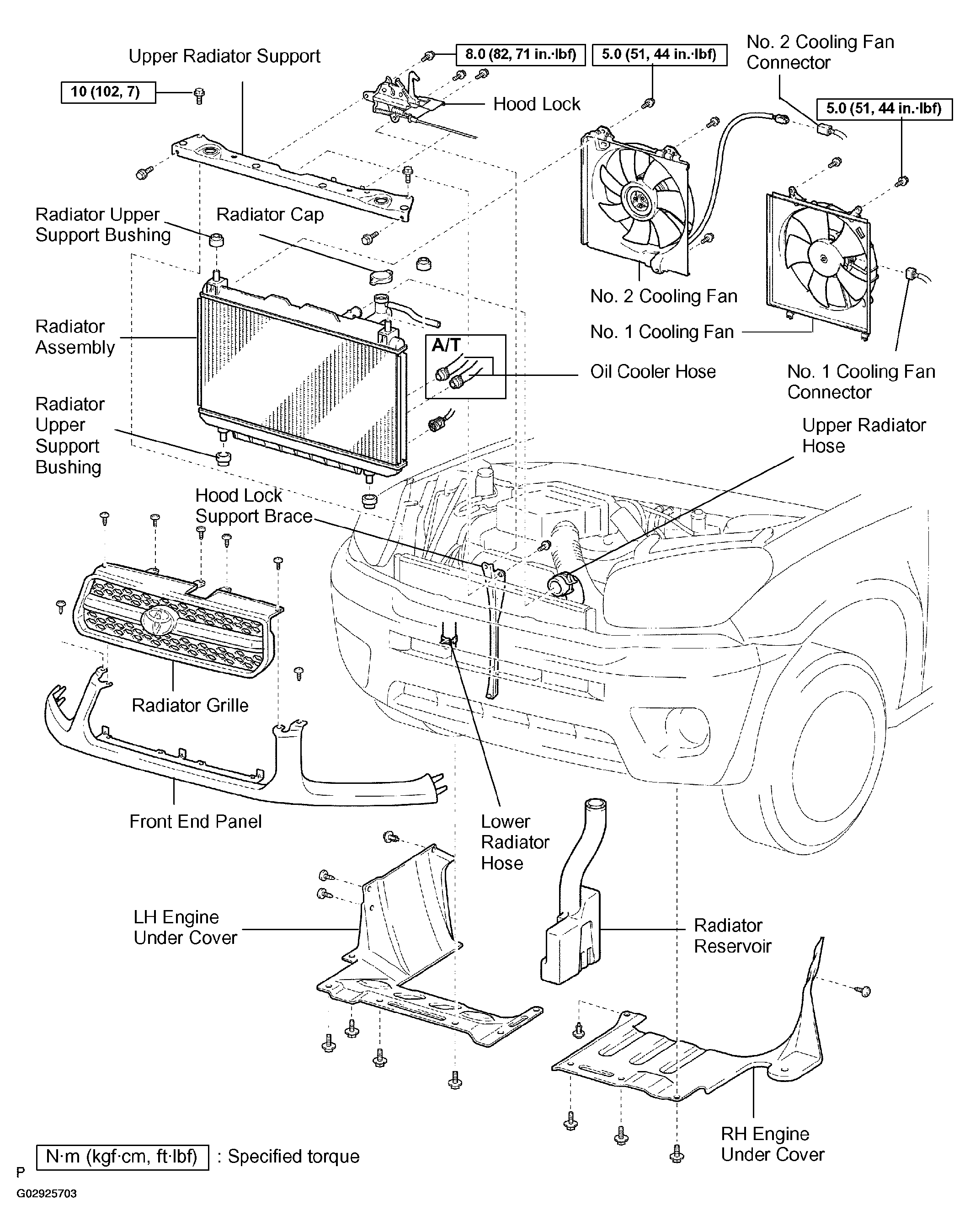

Fig 1: Radiator Components (1 Of 2)
G02925703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

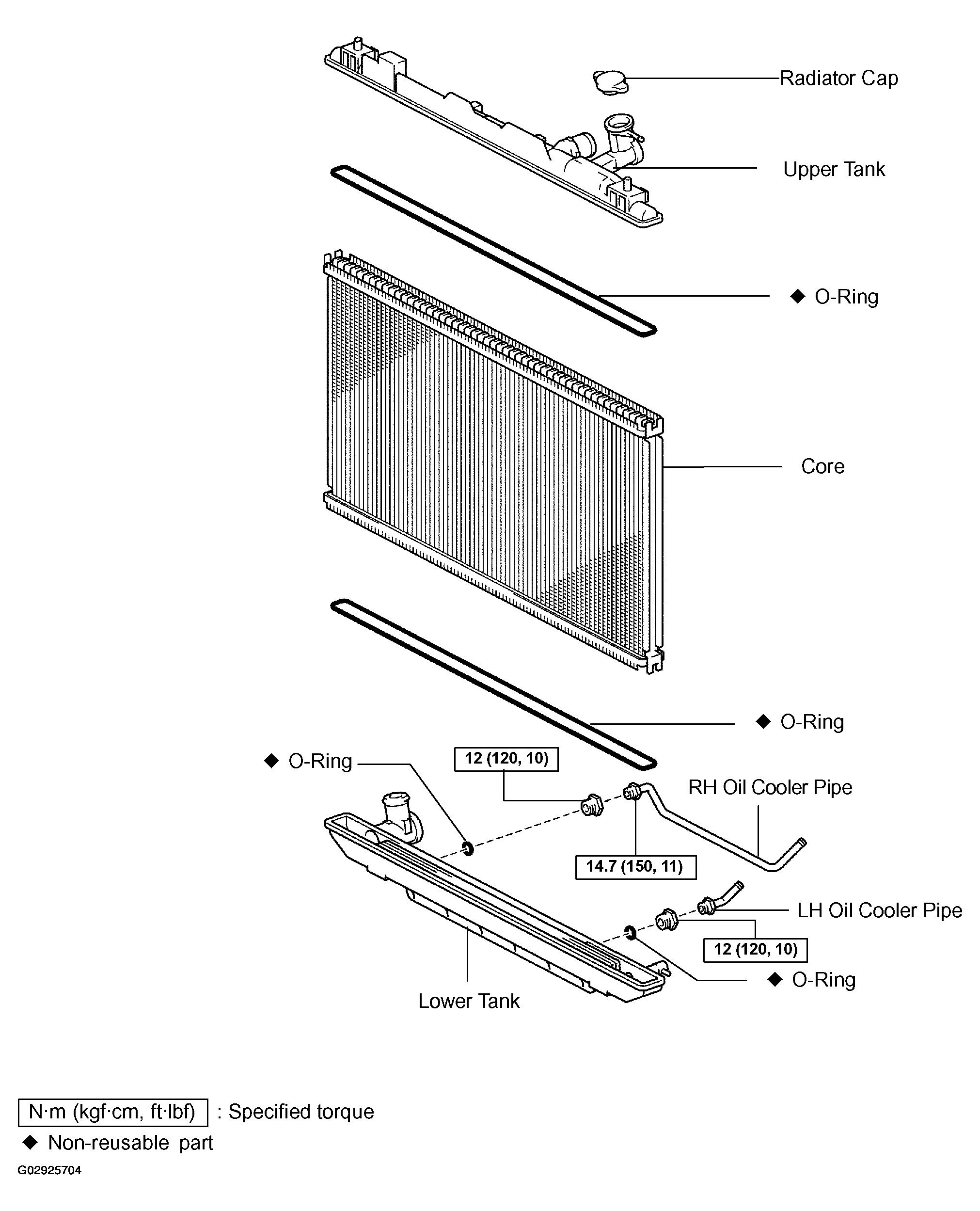

Fig 2: Radiator Components (2 Of 2)
G02925704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
