Section 501 (Engine Cooling System): Radiator: Disassembly

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE DRAIN PLUG
1. Remove the drain plug.
2. Remove the O-ring.

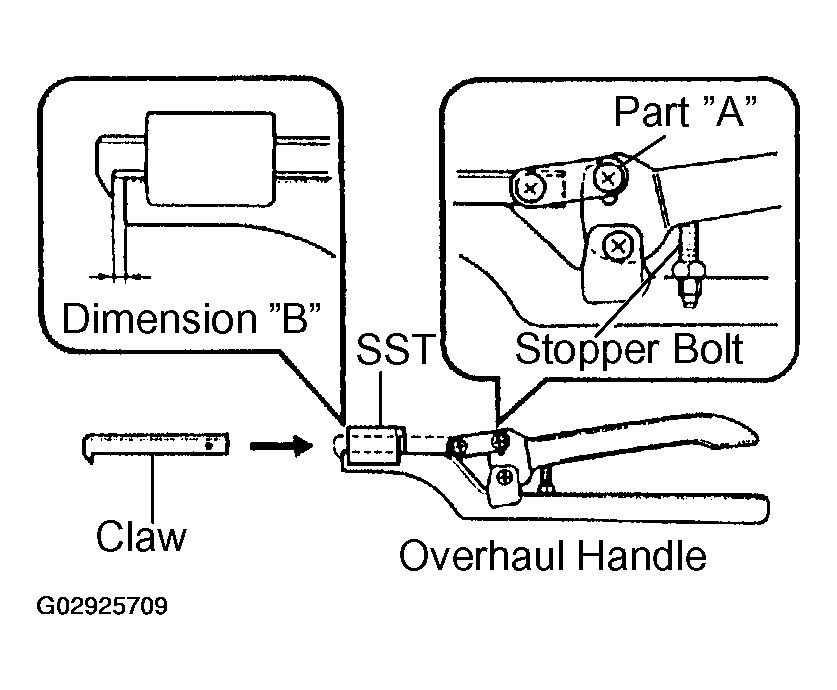

ASSEMBLE SST
SST 09230-01010
1. Install the claw to the overhaul handle, inserting it in the hole in part "A" as shown in Fig 1.
2. While gripping the handle, adjust the stopper bolt so that dimension "B" is as shown in Fig 1.
  Dimension: 0.2 to 0.3 mm (0.008 to 0.012 in.)

  NOTE: If the stopper bolt is not adjusted, the claw may be damaged.

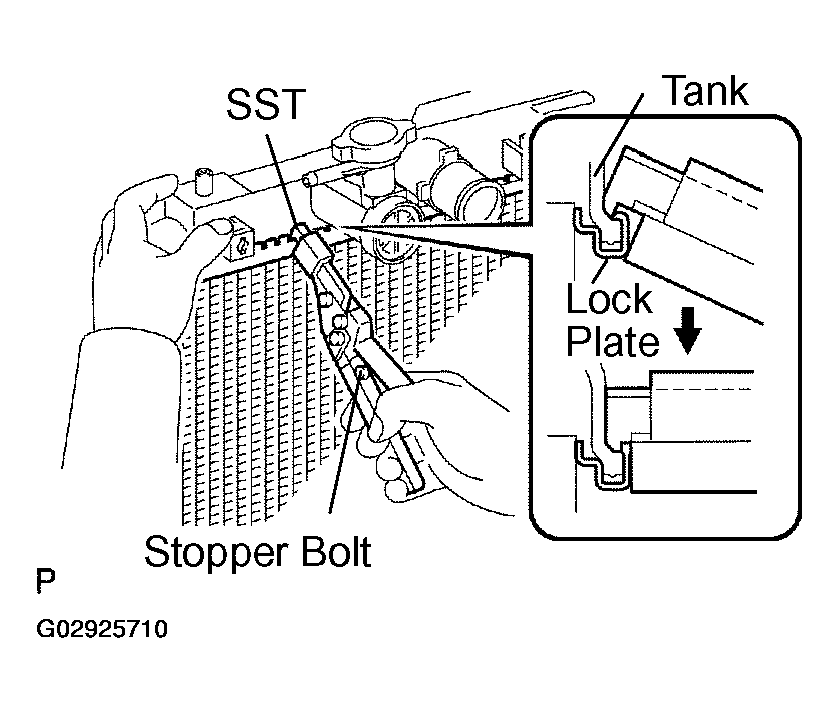

UNCAULK LOCK PLATES
Using SST to release the caulking, grip the handle until stopped by the stopper bolt.

Fig 2: Releasing Caulking
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09230-01010

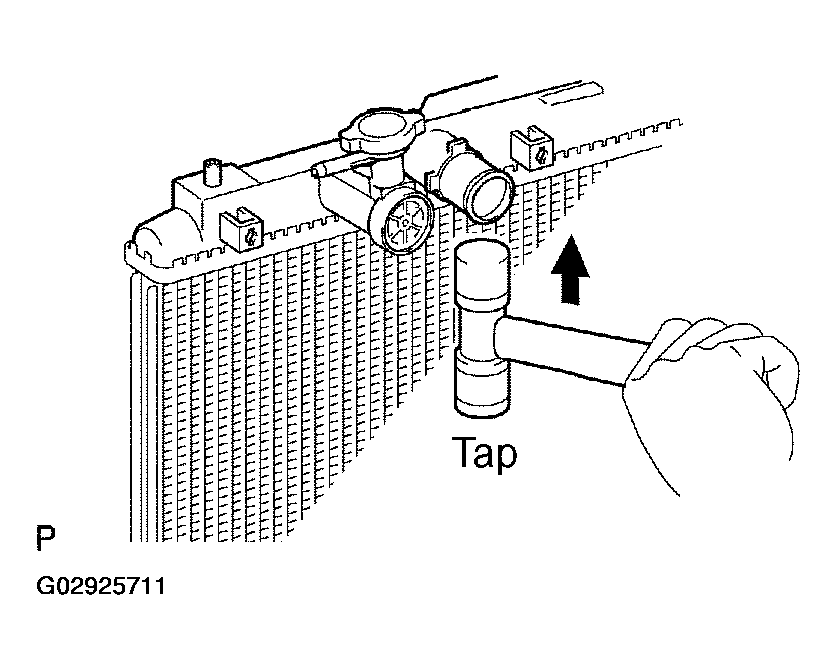

REMOVE TANKS AND O-RINGS
1. Lightly tap the bracket of the radiator (or radiator hose inlet or outlet) with a soft-faced hammer, and remove the tank.
2. Remove the O-ring.

  Fig 3: Removing Tanks And O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

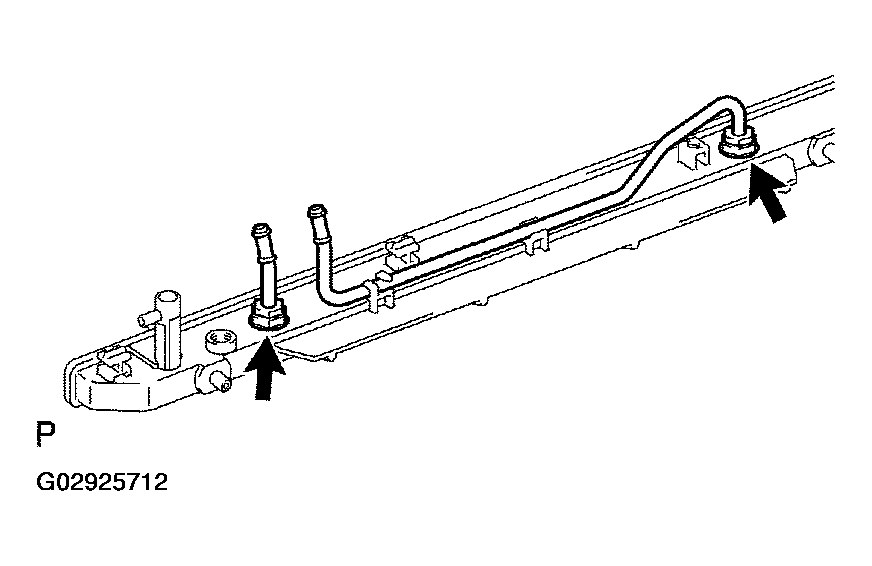

A/T: REMOVE OIL COOLER PIPES FROM LOWER TANK
1. Remove the 2 cooler pipes
2. Loosen the 2 nuts, and remove the 2 pipes.
3. Remove the 2 nuts.
4. Remove the 2 O-rings from the oil cooler.
