Section 501 (Engine Cooling System): Radiator: Installation

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL UPPER AND LOWER RADIATOR SUPPORTS TO RADIATOR
INSTALL RADIATOR
CONNECT LOWER RADIATOR HOSE
A/T: CONNECT 2 HOSES
Connect the 2 oil cooler hoses to the radiator.
INSTALL NO. 1 AND NO. 2 COOLING FANS (See ELECTRIC COOLING FANS )
INSTALL RADIATOR RESERVOIR
INSTALL RH ENGINE UNDER COVER

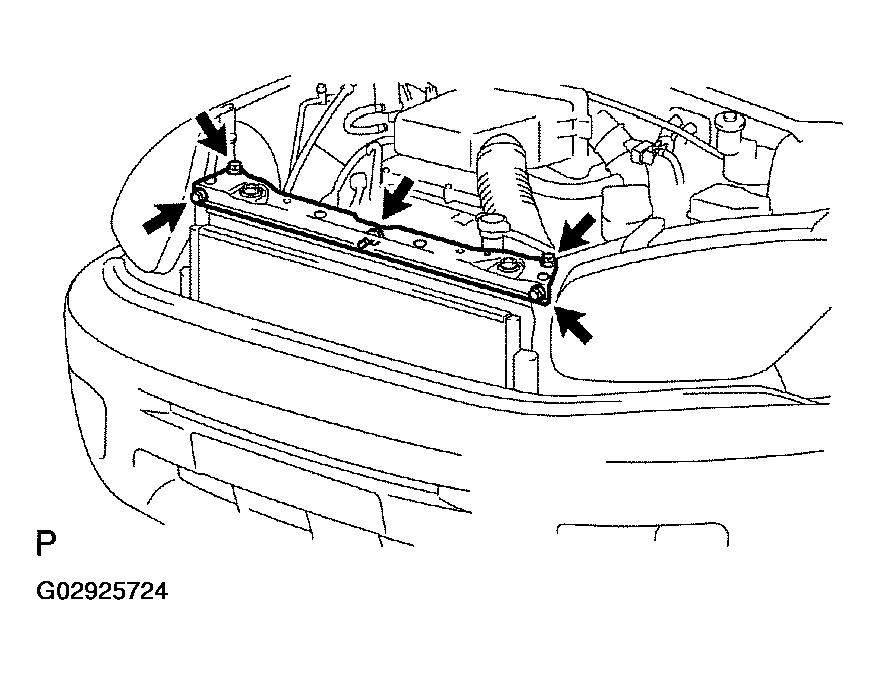

INSTALL UPPER RADIATOR SUPPORT
Install the radiator upper support with the 5 bolts.

Fig 1: Installing Upper Radiator Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT UPPER RADIATOR HOSE

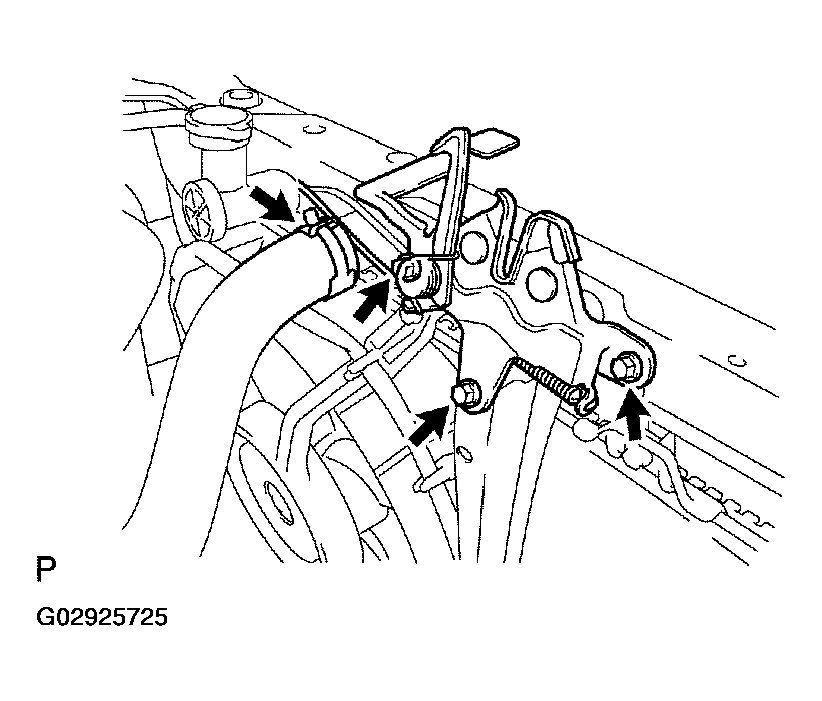

CONNECT HOOD LOCK
1. Install the hood lock with the 3 bolts.
2. Install the wire from the clamps.

  Fig 2: Installing Hood Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

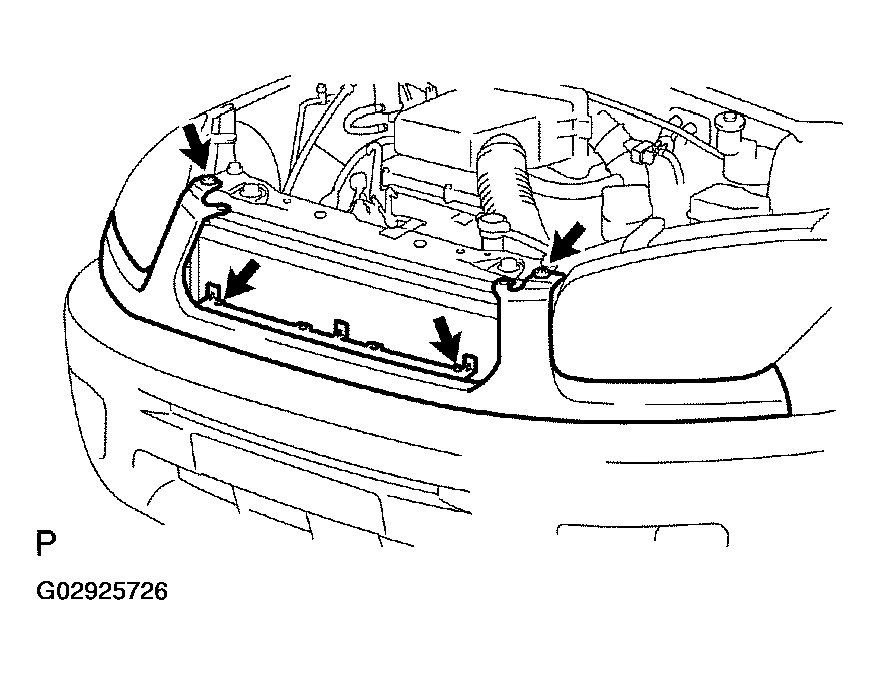

INSTALL FRONT END PANEL
Install the front end panel with the 4 screws.

Fig 3: Installing Front End Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE
Install the radiator grille with the 4 screws and 2 clips.

Fig 4: Installing Radiator Grille

FILL WITH ENGINE COOLANT
START ENGINE AND CHECK FOR COOLANT LEAKS
