Manual Up/Down Function Does Not Operate On Passenger Side Only: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

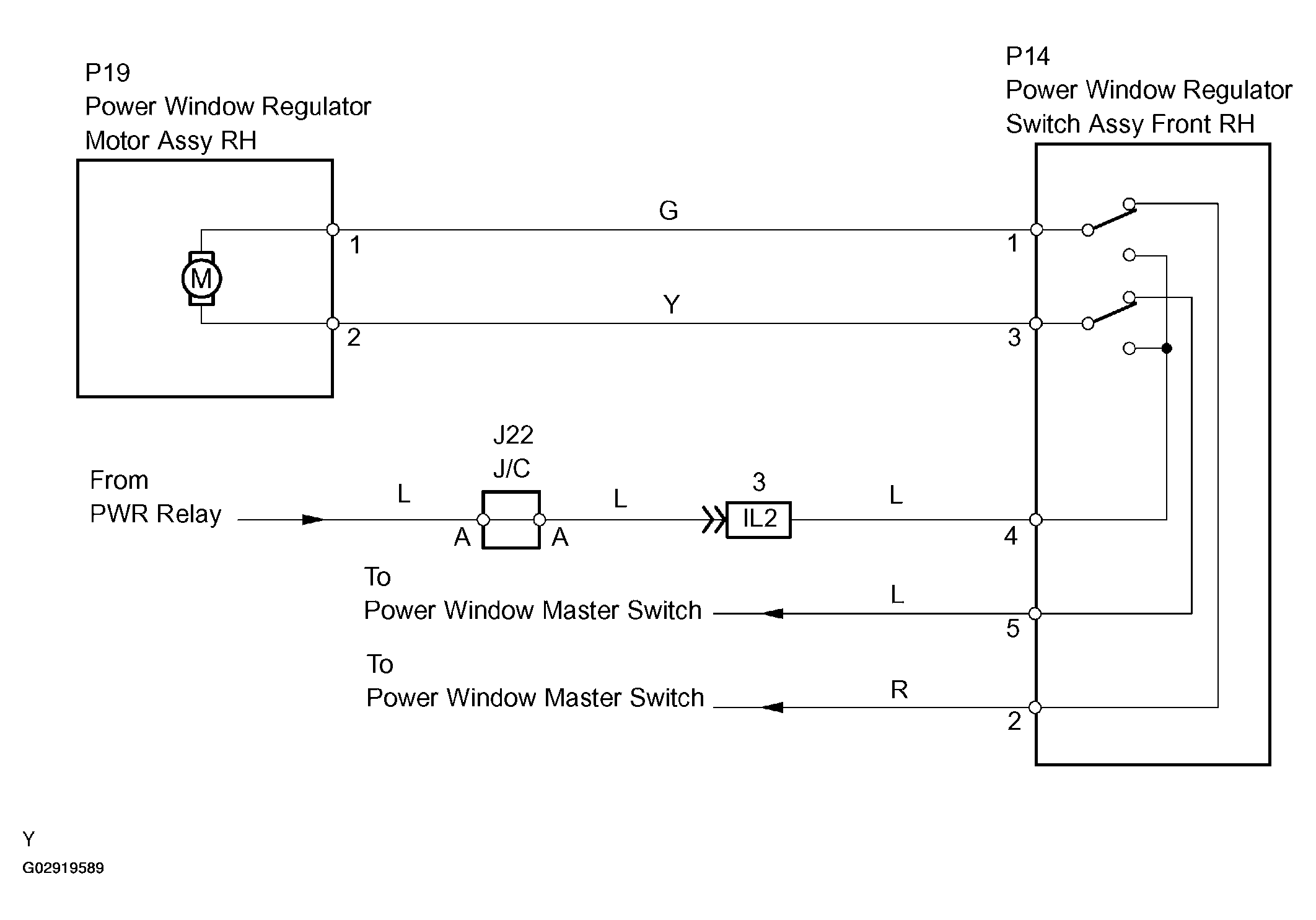

Fig 1: Wiring Diagram -Manual UP/DOWN Function (Passenger Side) Only
G02919589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
