Fail-Safe Chart

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

If the transmission control ECU assy detects a malfunction, the fail safe functions shown in the table below are activated.

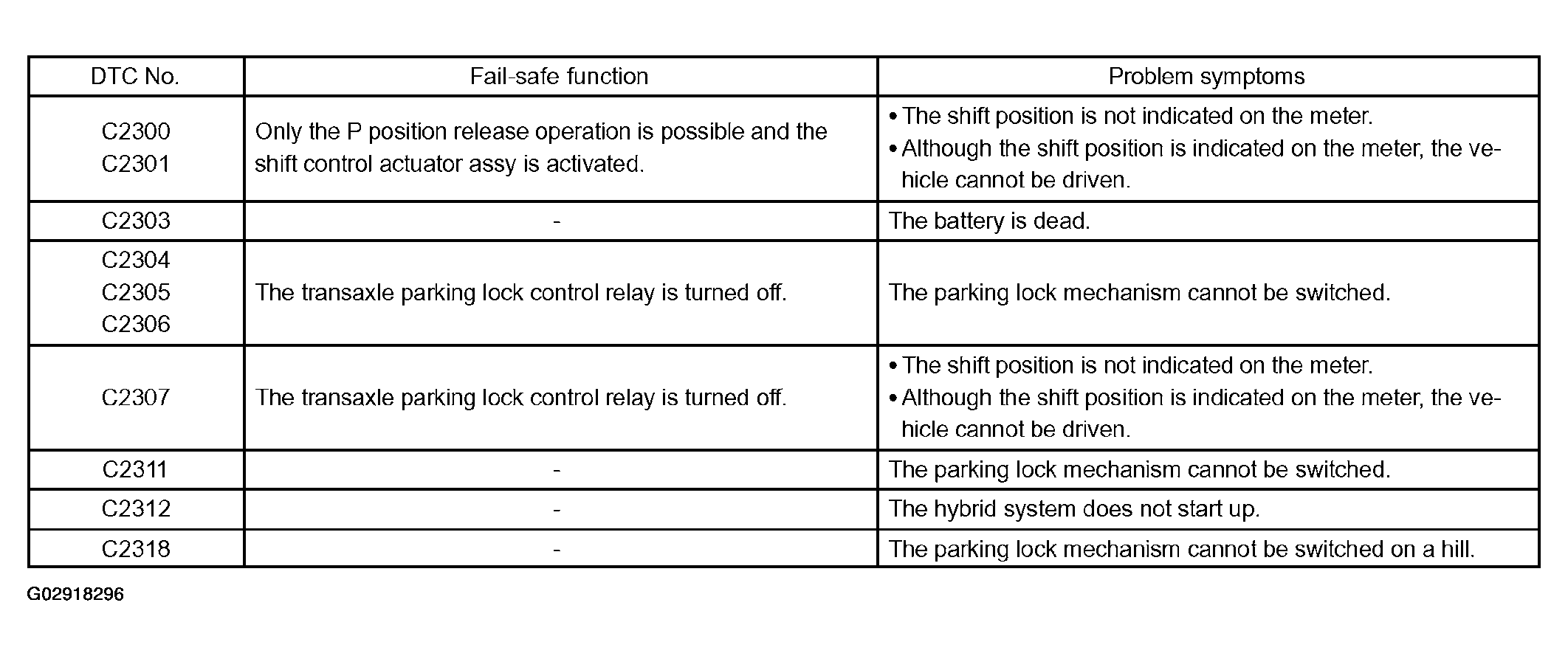

Fig 1: DTC Fail Safe Function Chart
G02918296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
