Combination Meter

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
Refer to appropriate diagnostic section for warning light or indicator light not described in the table below.

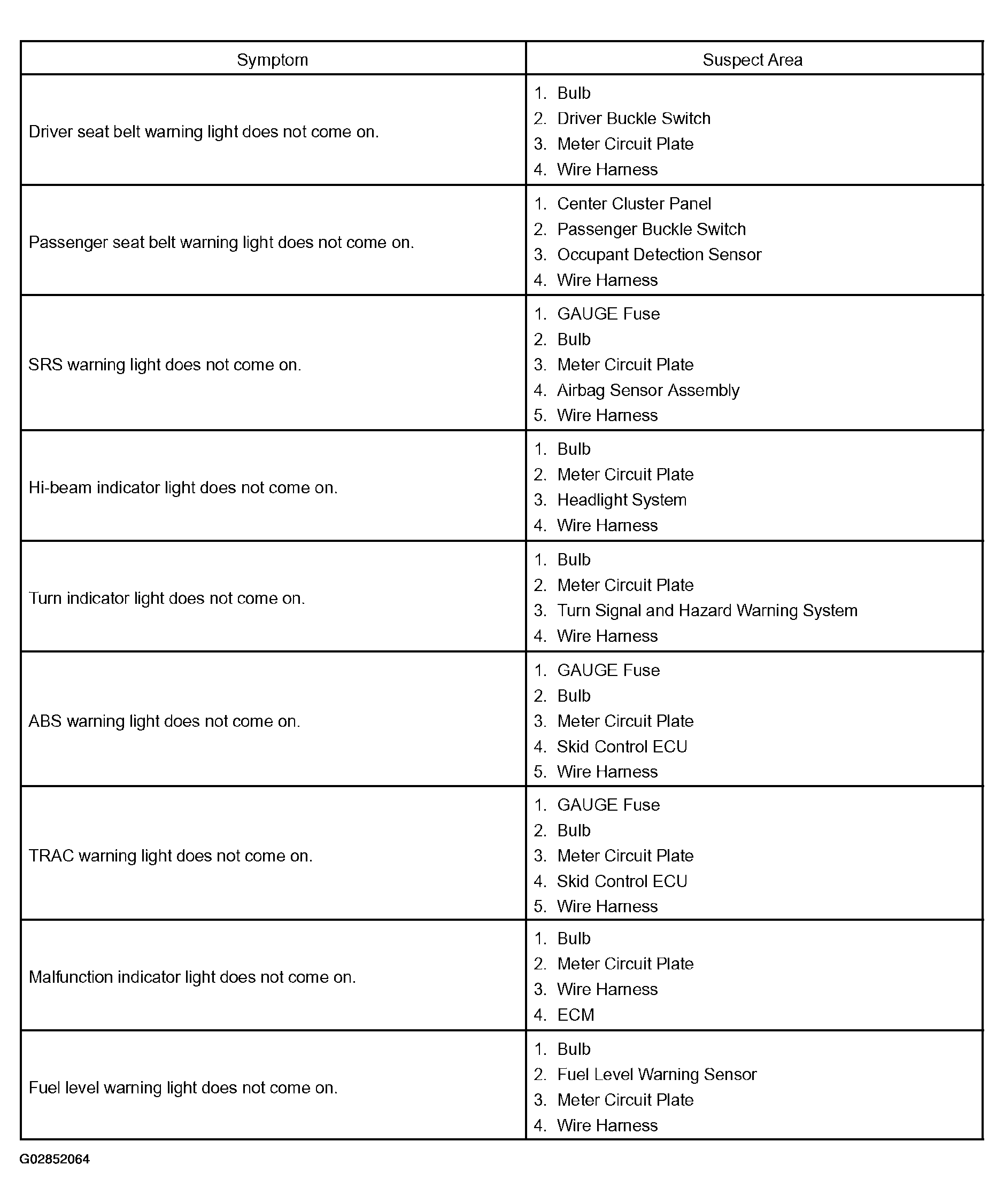

Fig 1: Problem Symptoms Chart - Combination Meter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
