Power Seat Control System

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

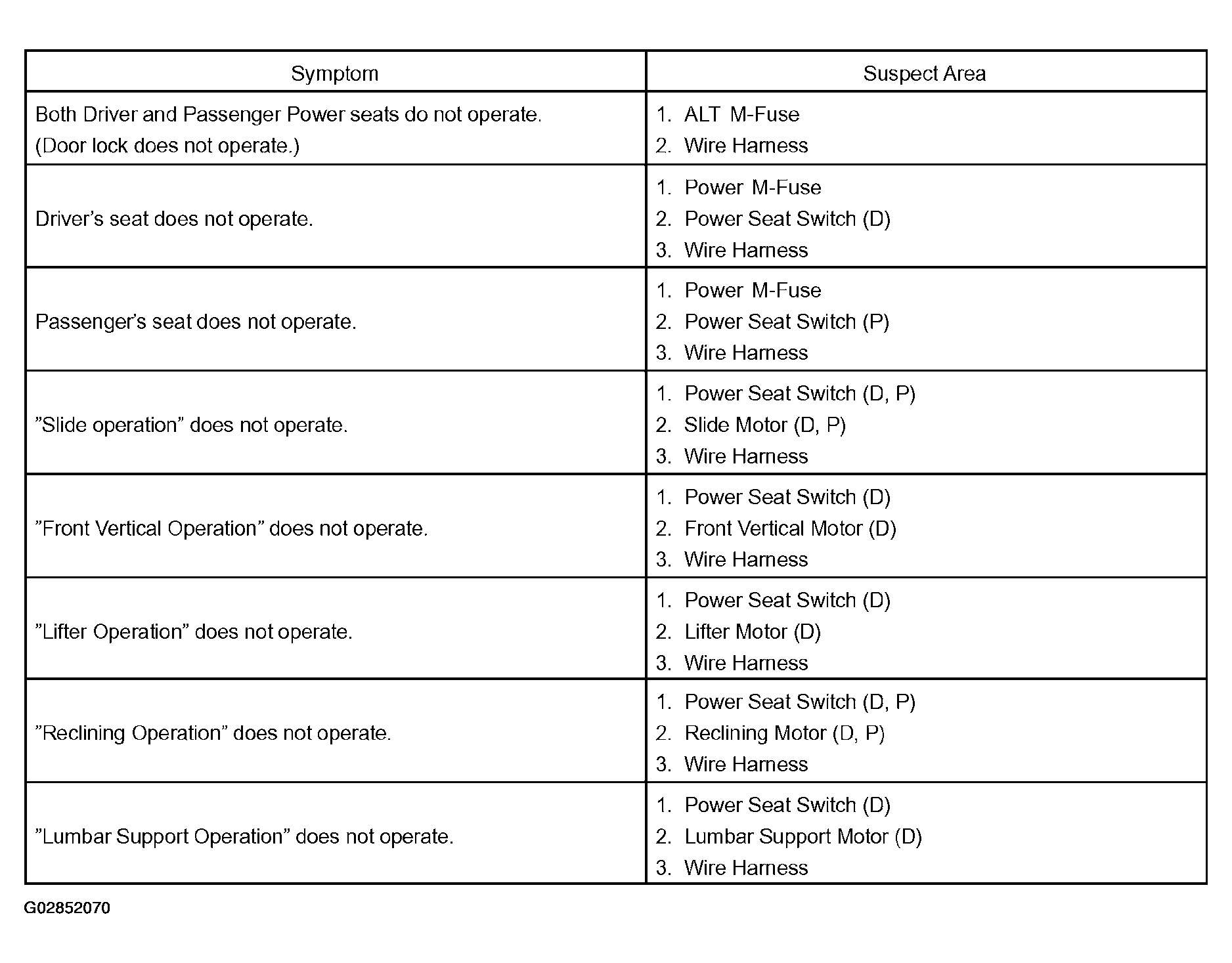

Fig 1: Problem Symptoms Chart - Power Seat Control System (1 Of 2)
G02852070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. (D): Driver's Seat
  2. (P): Passenger's Seat
