Stop Light System
WARNING:
This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

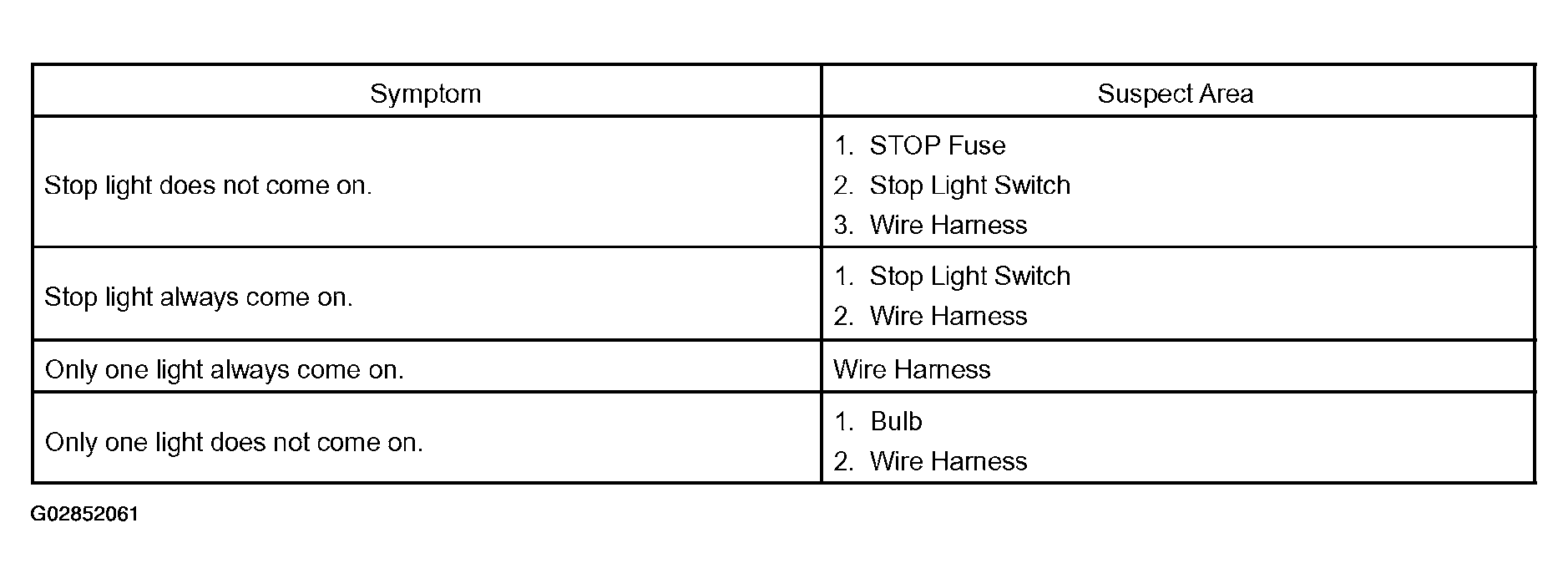

Fig 1: Problem Symptoms Chart - Stop Light System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
