Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

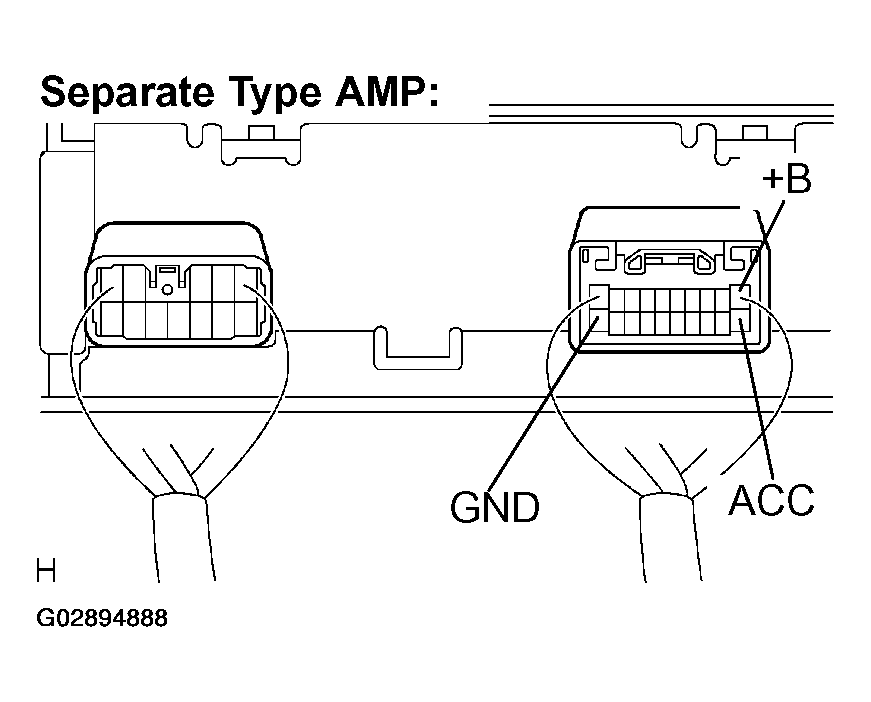

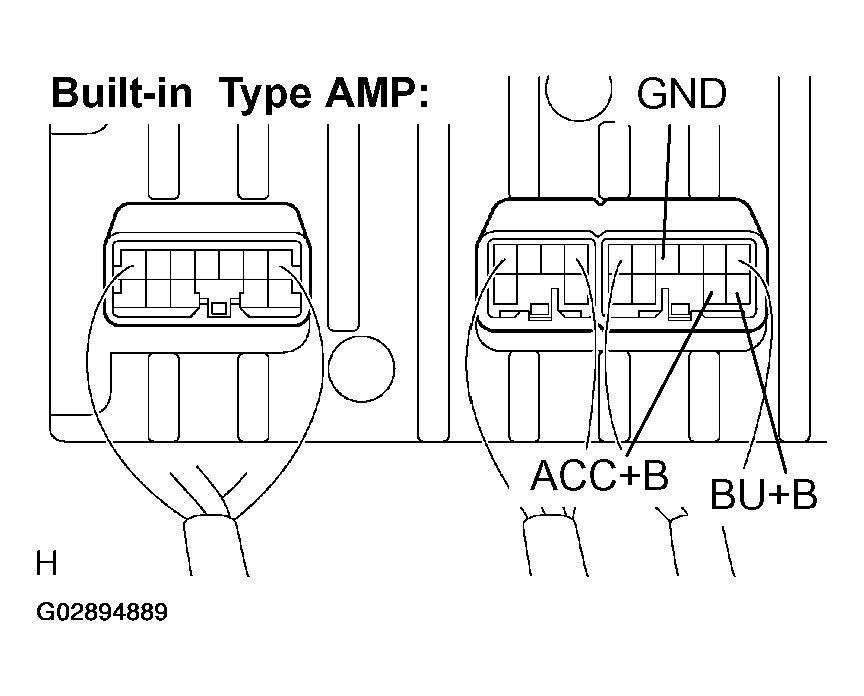

- INSPECT RADIO RECEIVER ASSY (+B/BU+B, ACC/ACC+B, GND)
- Check that the continuity between terminals at each condition, as shown in the chart.
Standard:
CONTINUITYTester connection Condition Specified condition GND - Body ground Constant Continuity - Check that the voltage between terminals at each condition, as shown in the chart.
Standard:
VOLTAGE SPECIFICATIONSTester connection Condition Specified condition +B/BU+B - GND Constant 10 - 14 V ACC/ACC+B - GND Ignition switch ACC or ON 10 - 14 V
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: CHECK AND REPLACE RADIO RECEIVER ASSY
- Check that the continuity between terminals at each condition, as shown in the chart.
