Removal & Installation: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT BATTERY NEGATIVE TERMINAL (see AIR BAG RESTRAINT SYSTEMS )
REMOVE STEERING WHEEL COVER LOWER NO. 2
REMOVE STEERING WHEEL COVER LOWER NO. 3 (W/O STEERING PAD SWITCH 4 SPOKE STEERING WHEEL)
REMOVE CONNECTOR COVER (W/ STEERING PAD SWITCH 4 SPOKE STEERING WHEEL) (See REPLACEMENT )
REMOVE STEERING WHEEL COVER LOWER NO. 3 (3 SPOKE STEERING WHEEL ASSY)
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE HORN BUTTON ASSY (see DUAL-STAGE DRIVER-SIDE AIR BAG MODULE )
REMOVE STEERING WHEEL ASSY (See STEERING COLUMN ASSY (TMC MADE) or STEERING COLUMN ASSY (TMMK MADE) ) .
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
REMOVE STEERING PAD SWITCH (W/ STEERING PAD SWITCH 4 SPOKE STEERING WHEEL) (See REPLACEMENT )
REMOVE CRUISE CONTROL MAIN SWITCH ASSY

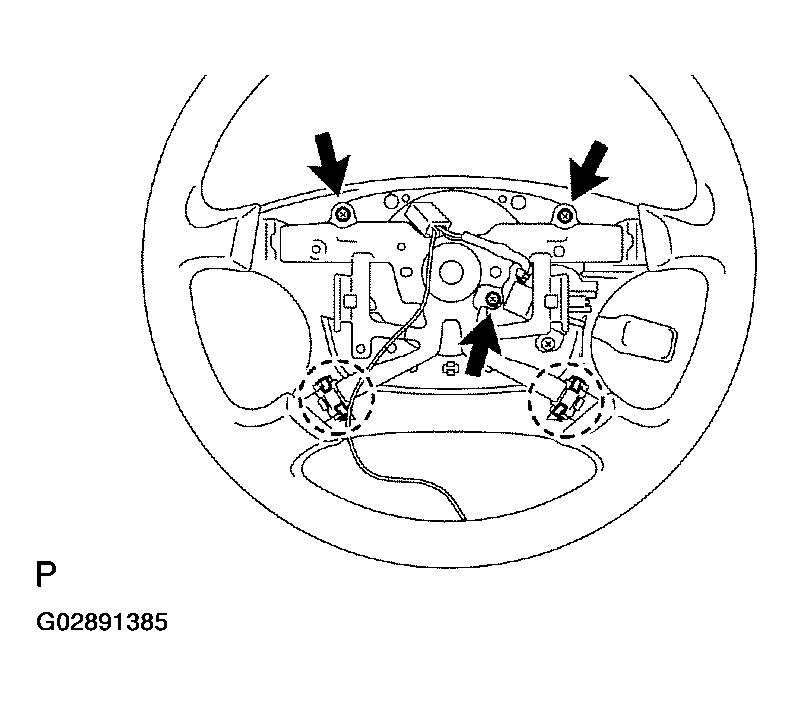

1. 4 spoke steering wheel assy:
  Remove the 2 screws and steering wheel damper.

  Fig 1: Removing 2 Screws And Steering Wheel Damper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 4 Spoke steering wheel assy:
  Remove the 3 screws.
3. 4 spoke steering wheel assy:
  Disengage the 2 claws and remove the steering wheel boss cover LWR.

  Fig 2: Removing Steering Wheel Boss Cover LWR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

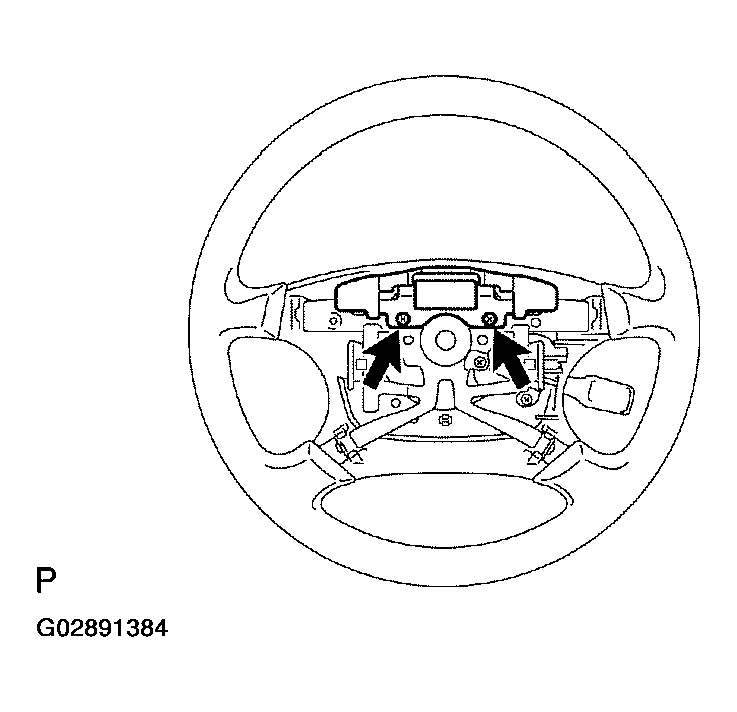

4. 4 spoke steering wheel assy:
  Remove the 2 screws and cruise control main switch assy.

  Fig 3: Removing Screws And Cruise Control Main Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

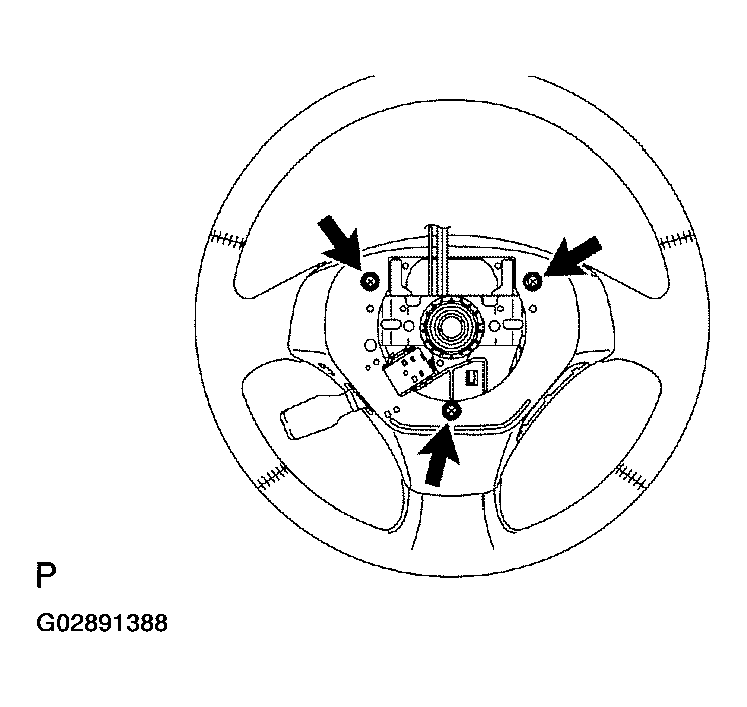

5. 3 spoke steering wheel assy:
  Remove the 3 screws.

  Fig 4: Removing 3 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

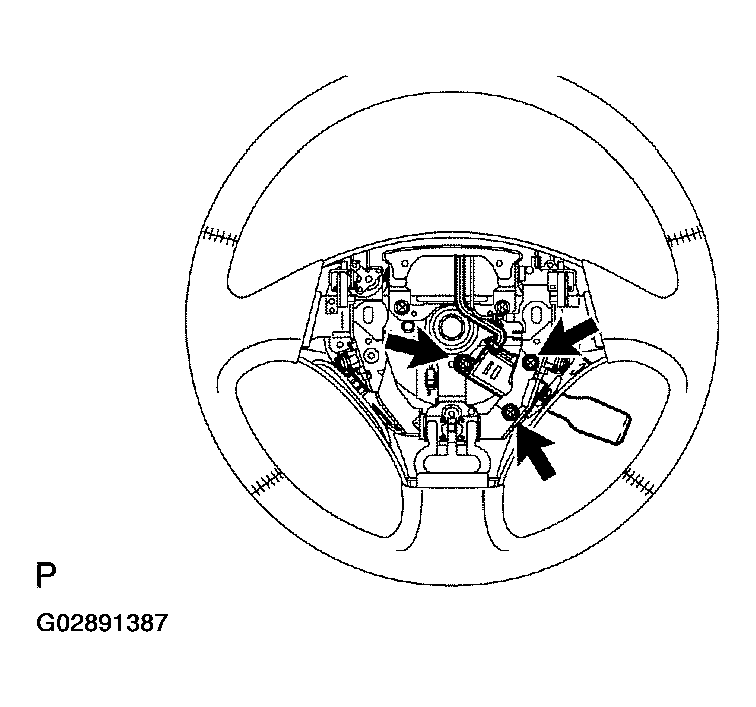

6. 3 spoke steering wheel assy:
  Reverse the steering wheel, remove the 3 screws and cruise control main switch assy.

  Fig 5: Removing 3 Screws And Cruise Control Main Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

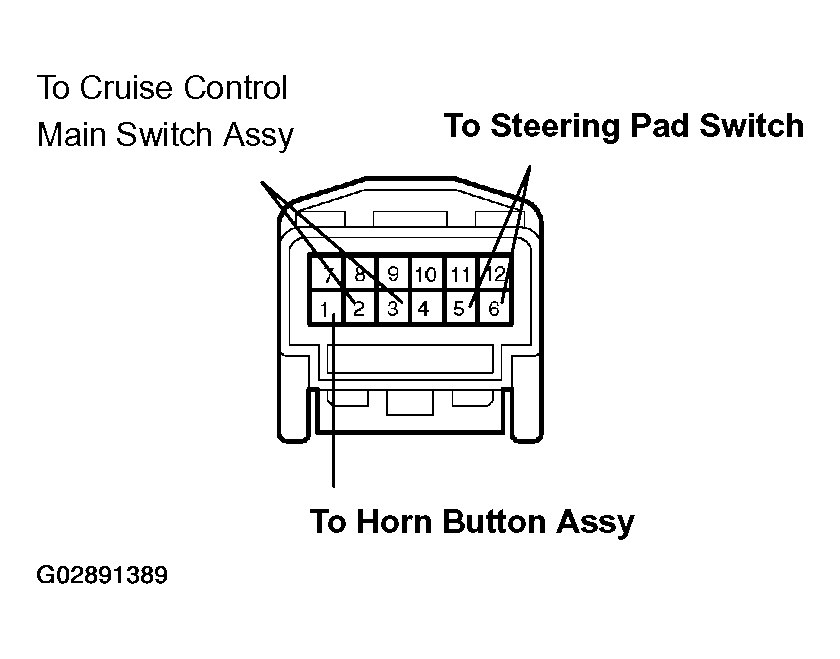

7. Disengage the wiring pins other than the cruise control main switch assy from the connector, and pull them out.

  Fig 6: Disengaging Wiring Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CENTER SPIRAL CABLE (See SPIRAL CABLE )
INSTALL STEERING WHEEL ASSY (See STEERING COLUMN ASSY (TMC MADE) or STEERING COLUMN ASSY (TMMK MADE) ) .
INSPECT STEERING WHEEL CENTER POINT
INSTALL HORN BUTTON ASSY (see DUAL-STAGE DRIVER-SIDE AIR BAG MODULE )
INSPECT HORN BUTTON ASSY (If the horn button contact plate of the horn button assembly is deformed, replace the horn button assembly with a new one)(For Horn operation, see HORN SYSTEM ).
INSPECT SRS WARNING LIGHT (See AIR BAG RESTRAINT SYSTEMS )
