Steering Column: Components
WARNING:
This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

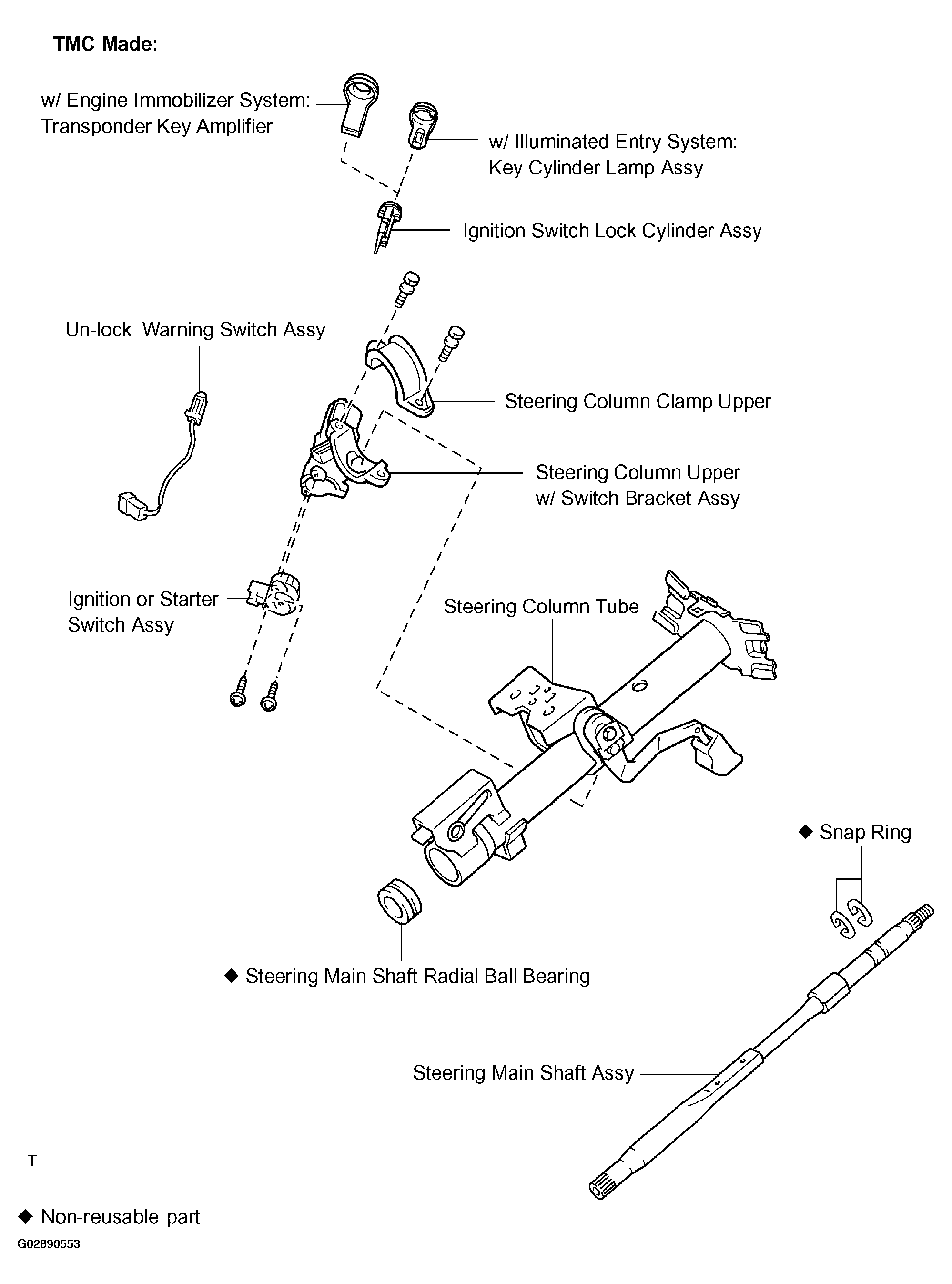

Fig 1: Identifying Steering Column Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

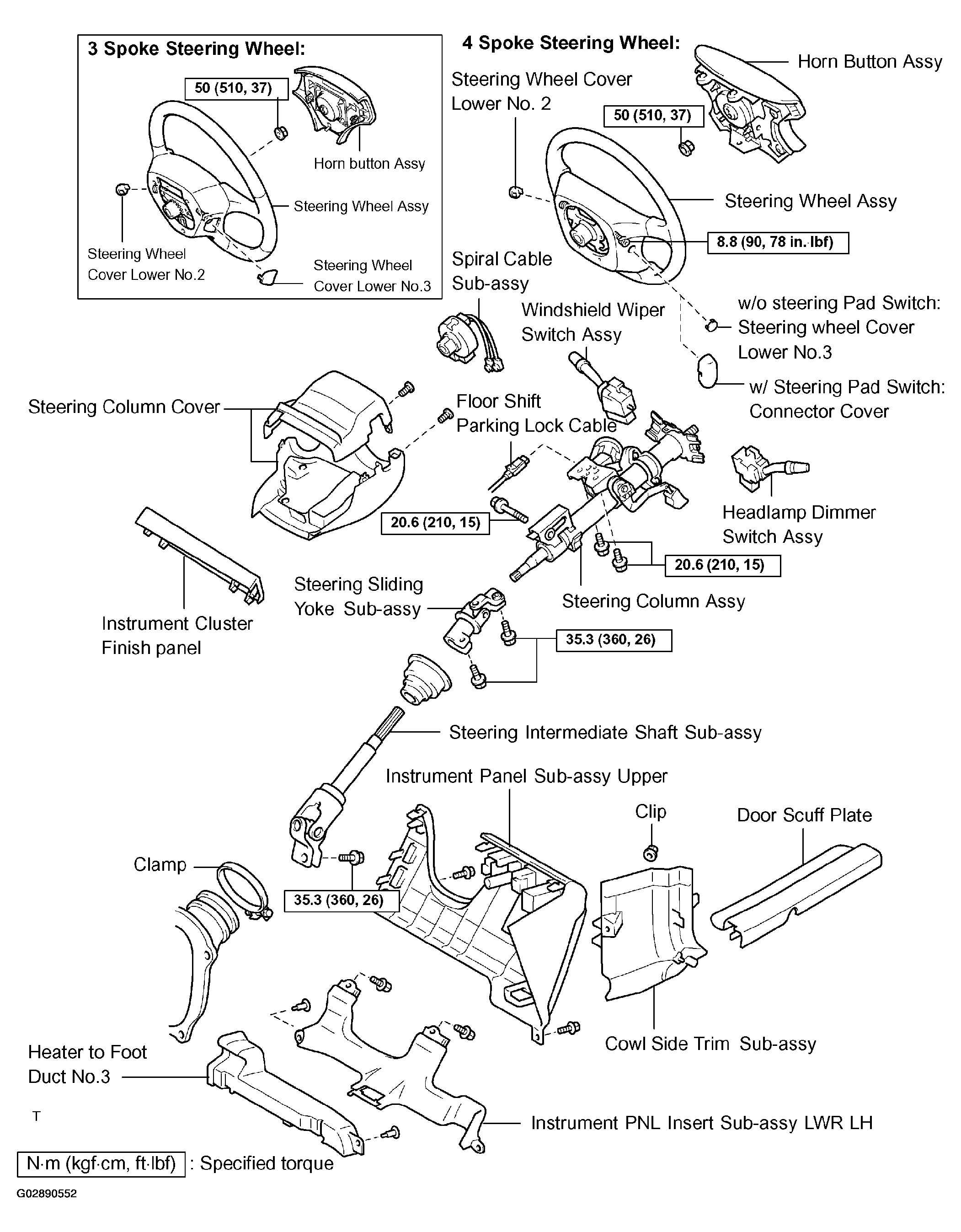

Fig 2: Identifying Steering Column Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

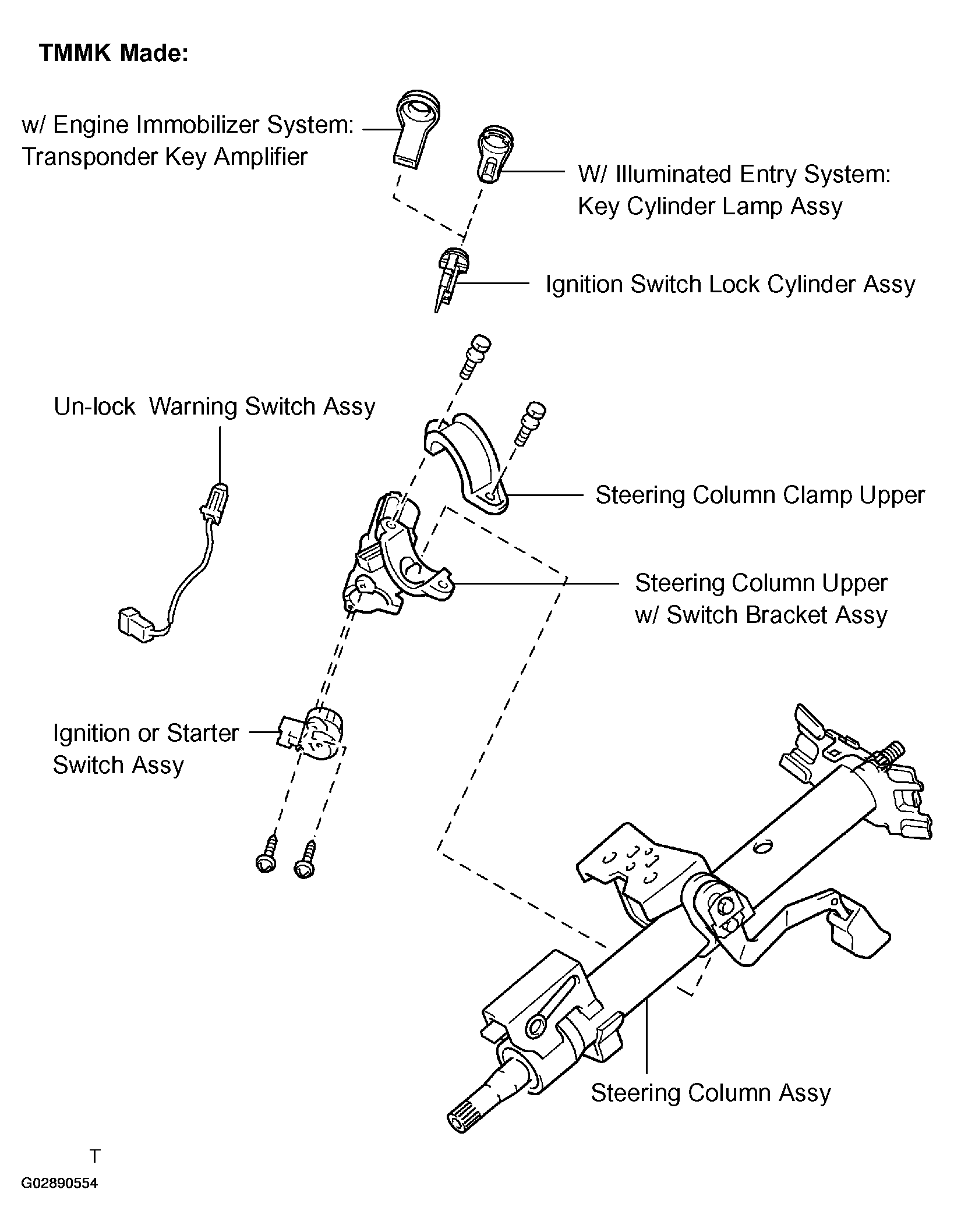

Fig 3: Identifying Steering Column Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
