Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT STEREO COMPONENT AMPLIFIER ASSY

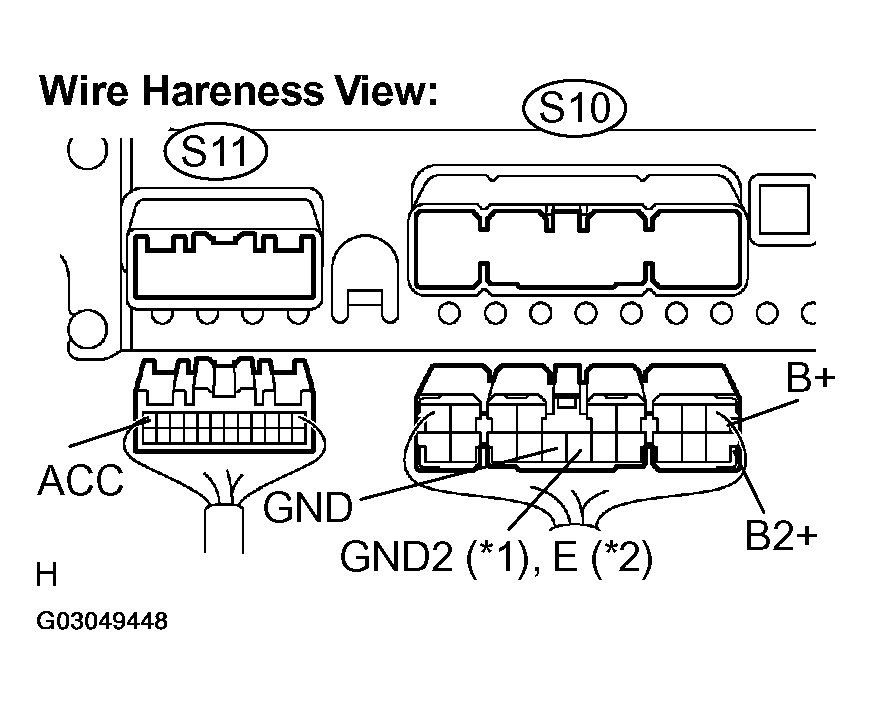

- Disconnect the stereo component amplifier assy S10 and S11 connectors.
- Measure the resistance according to the values in the table below.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition GND (S10-16) - Body ground Always Below 1 Ω GND2 ((1)), E ( (2)) (S10-15) - Body ground Always Below 1 Ω (1) Coupe (2) Convertible - Measure the voltage according to the values in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition B+ (S10-1) - GND (S10-16) Always 10 to 14 V B2+ (S10-10) - GND (S10-16) Always 10 to 14 V ACC (S11-12) - GND (S10-16) Ignition SW ACC 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (STEREO COMPONENT AMPLIFIER ASSY - BATTERY OR BODY GROUND)
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
