Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK SYMPTOM
- Check if sound is momentarily muted while opening or closing the convertible top.
OK: Sound is momentarily muted.
- NG: Go to step 2
- OK: REPLACE STEREO COMPONENT AMPLIFIER ASSY (SEE REPLACEMENT )
- Check if sound is momentarily muted while opening or closing the convertible top.

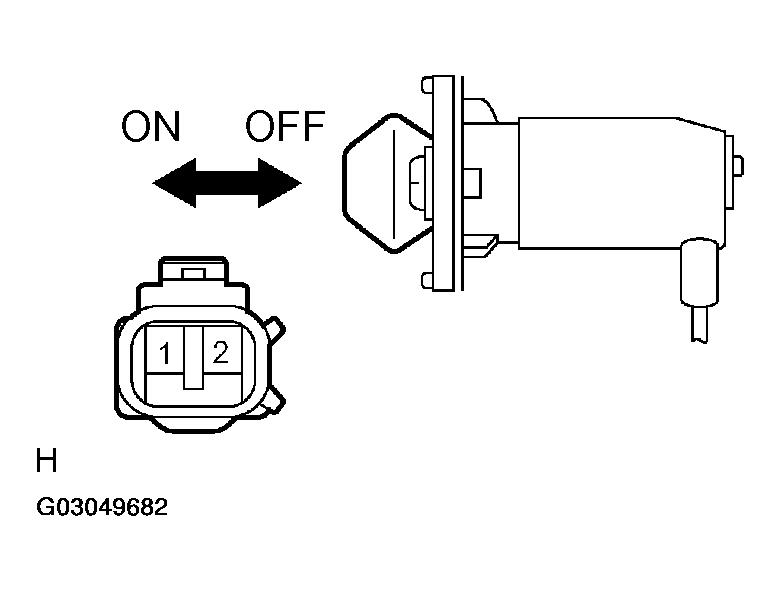

- INSPECT COURTESY LAMP SWITCH
- Disconnect the courtesy lamp switch.
- Measure the resistance according to the value(s) in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition 1 - 2 ON (Shaft is not pressed) Below 1 Ω 1 - 2 OFF (Shaft is pressed) 10 kΩ or higher
- NG: REPLACE COURTESY LAMP SWITCH
- OK: Go to Next Step.

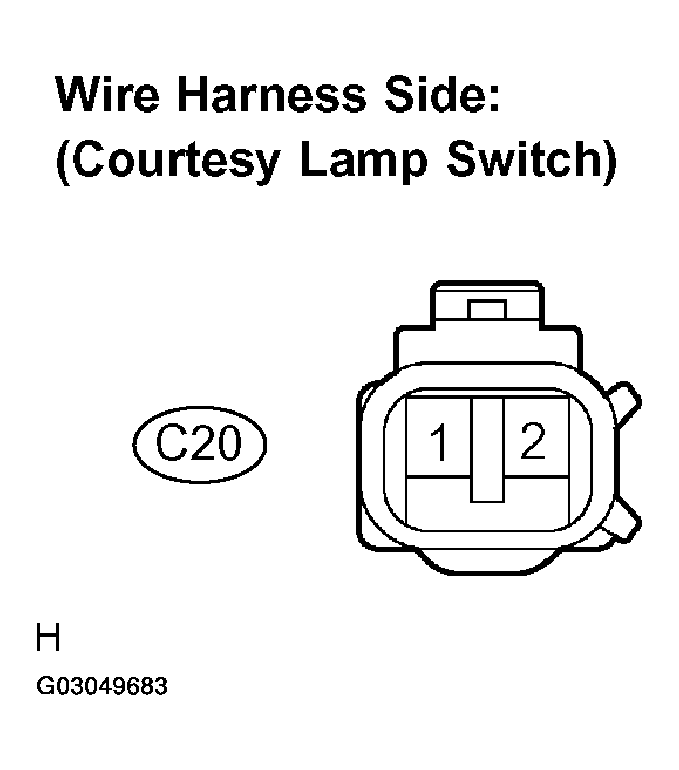

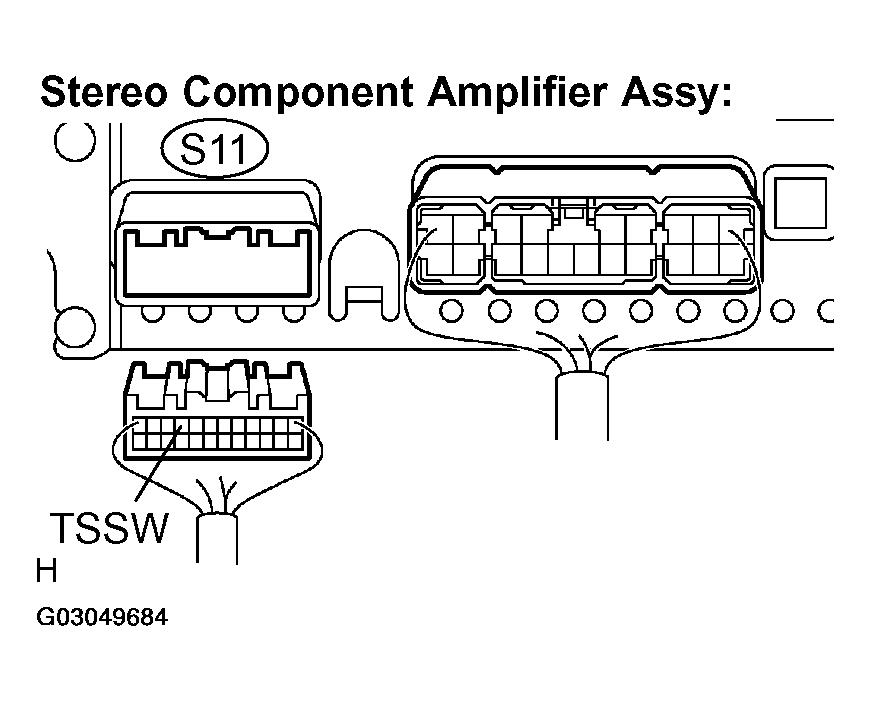

- CHECK HARNESS AND CONNECTOR (COURTESY LAMP SWITCH - STEREO COMPONENT AMPLIFIER ASSY)
- Disconnect the connectors from the stereo component amplifier assy and courtesy lamp switch.
- Measure the resistance according to the values in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition TSSW - 1 Always Below 1 Ω TSSW - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (COURTESY LAMP SWITCH - BODY GROUND)
