Diagnosis Display Detailed Description
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- This section contains a detailed description of displays within diagnostic mode.
- Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.
- System Check
- System Check Mode Screen
Device Names and hardware Address/*1
HINT:
- Registered device names are displayed.
- If a device name is unknown to the system, its physical address is shown instead.

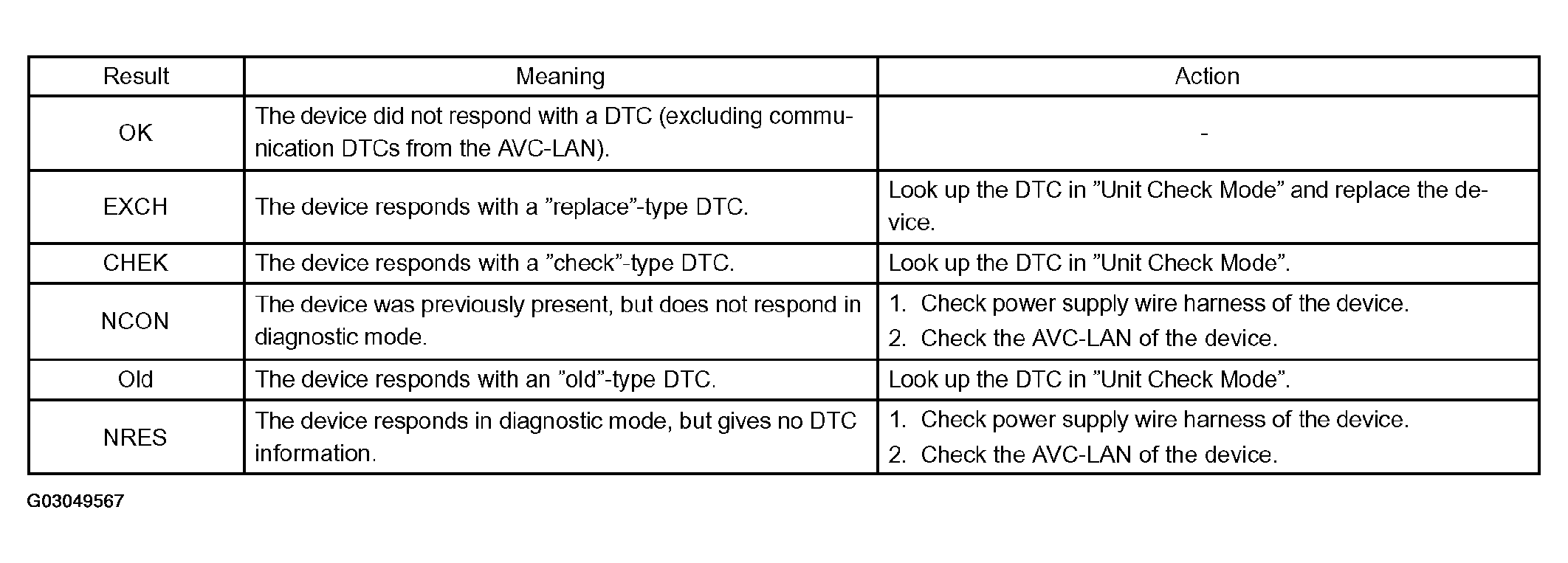

PHYSICAL ADDRESS SPECIFICATIONAddress No. Name Address No. Name 110 EMV 120 AVX 128 1 DIN TV 140 AVN 144 G-BOOK 178 NAVI 17C MONET 190 AUDIO H/U 1AC CAMERA-C 1B0 Rr-TV 1C0 Rr-CONT 1C2 TV-TUNER2 1C4 PANEL 1C6 G/W 1C8 FM-M-LCD 1D8 CONT-SW 1EC Body 1F0 RADIO TUNER 1F1 XM 1F2 SIRIUS 230 TV-TUNER 240 CD-CH2 250 DVD-CH 280 CAMERA 360 CD-CH1 3A0 MD-CH 17D TEL 440 DSP-AMP 530 ETC 5C8 MAYDAY 1A0 DVD-P 1D6 CLOCK 1F4 RSA 1F6 RSE 480 AMP - - Check Result/*2
HINT:
Result codes for all devices are displayed.
Code Clear/*3
Present DTCs are cleared.
Memory Clear/*4
Present and past DTCs and registered connected device names are cleared.

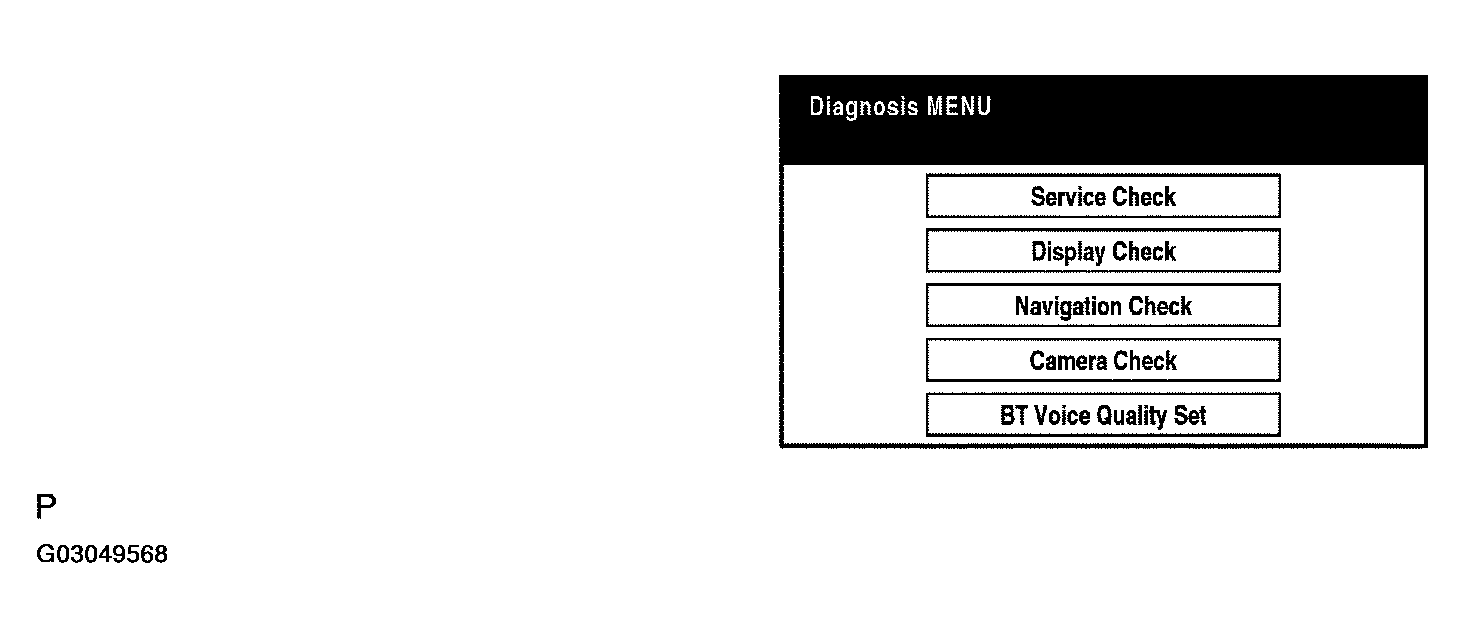

- Diagnosis MENU Screen
HINT:
Each item is grayed out or not displayed based on the device settings.

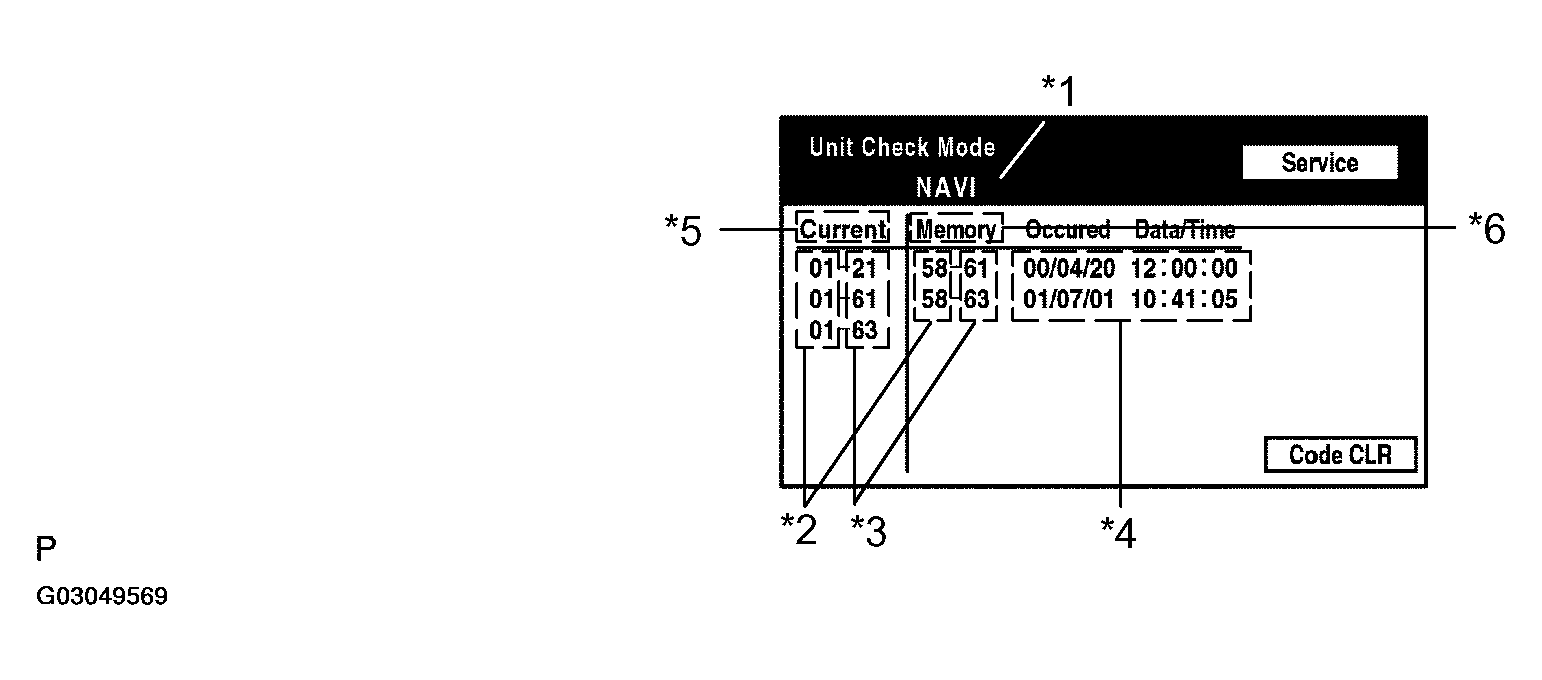

- Unit Check Mode Screen
Screen Description

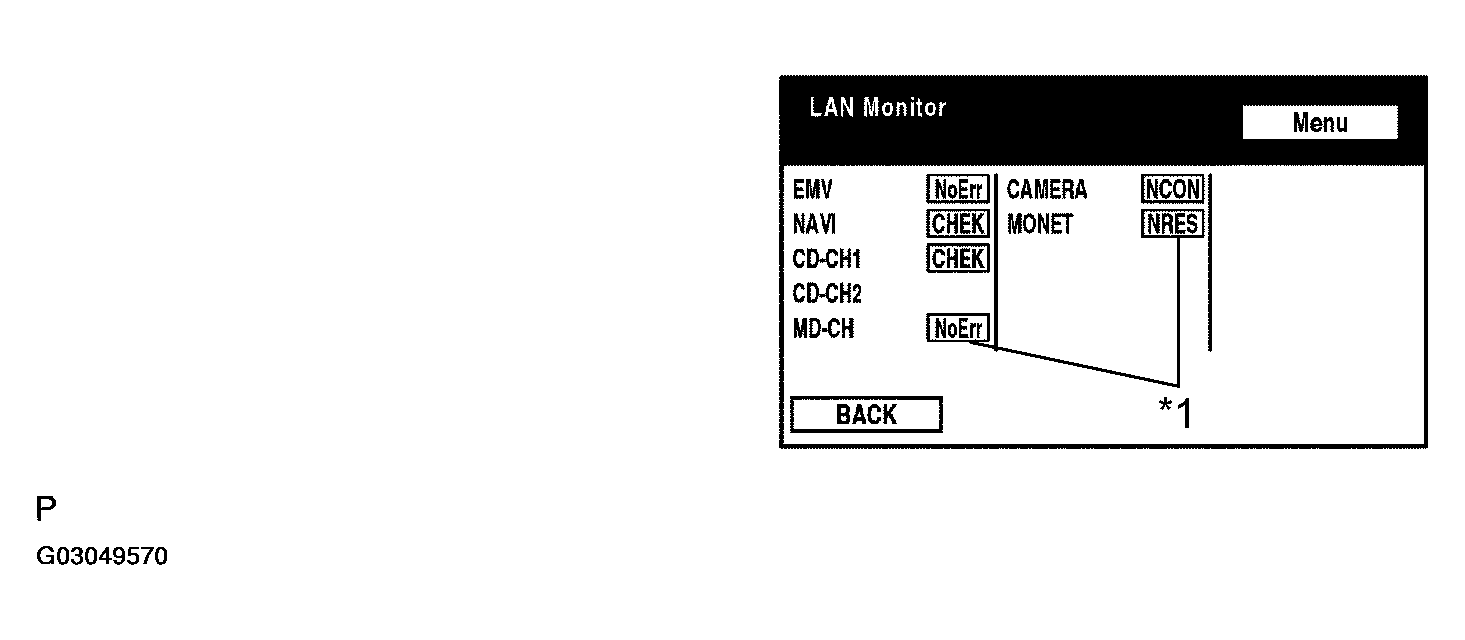

SCREEN DESCRIPTIONDisplay Contents Device name/*1 Target device Segment/*2 Target device logical address DTC/*3 DTC (Diagnostic Trouble Code) Timestamp/*4 The time and date of past DTCs are displayed. (The year is displayed in 2 digit format.) Present Code/*5 The DTC output at the service check is displayed. Past Code/*6 Diagnostic memory results and recorded DTCs are displayed. - LAN Monitor (Original) Screen

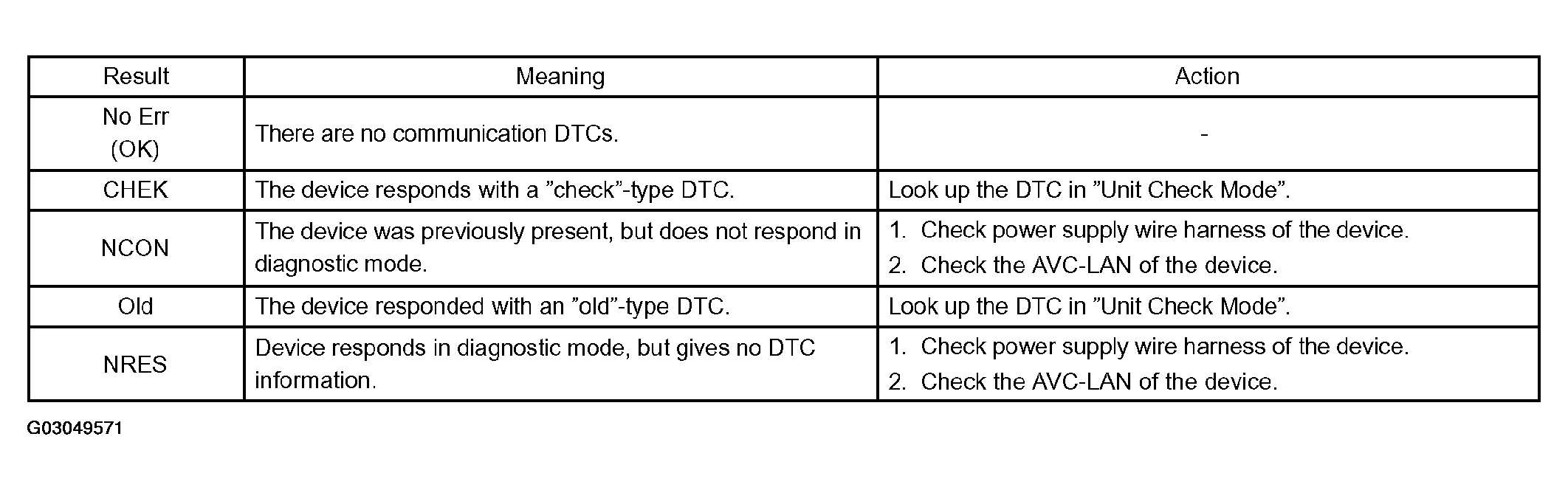

Check result/*1
HINT:
Check results of all the devices are displayed.

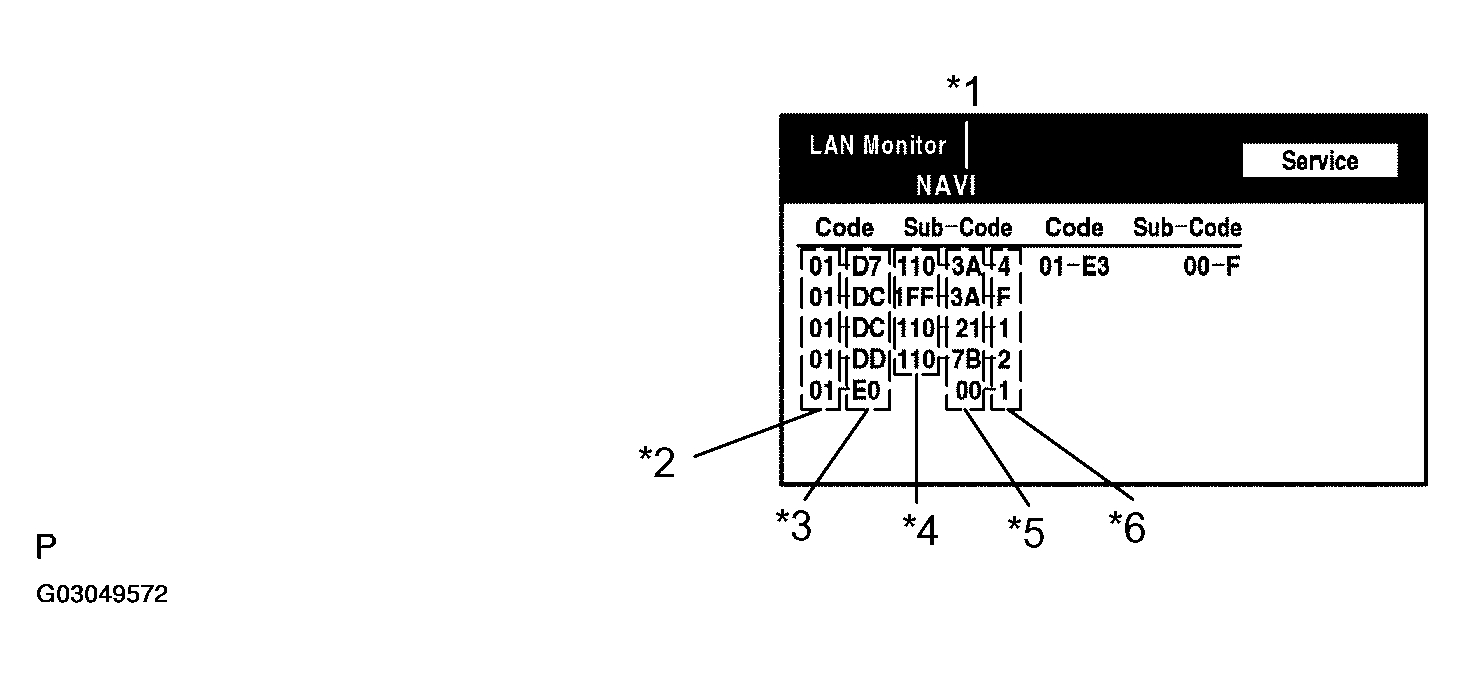

- LAN Monitor (Individual) Screen
Screen Description
SCREEN DESCRIPTIONDisplay Contents Device name/*1 Target device Segment/*2 Target logical address DTC/*3 DTC (Diagnostic Trouble Code) Sub-Code (device address)/*4 Physical address stored with DTC. (If there is no address, nothing is displayed.) Connection check No./*5 Connection check number stored with DTC. DTC occurrence/*6 Number of times the same DTC has been recorded. - System Check Mode Screen
- DISPLAY CHECK

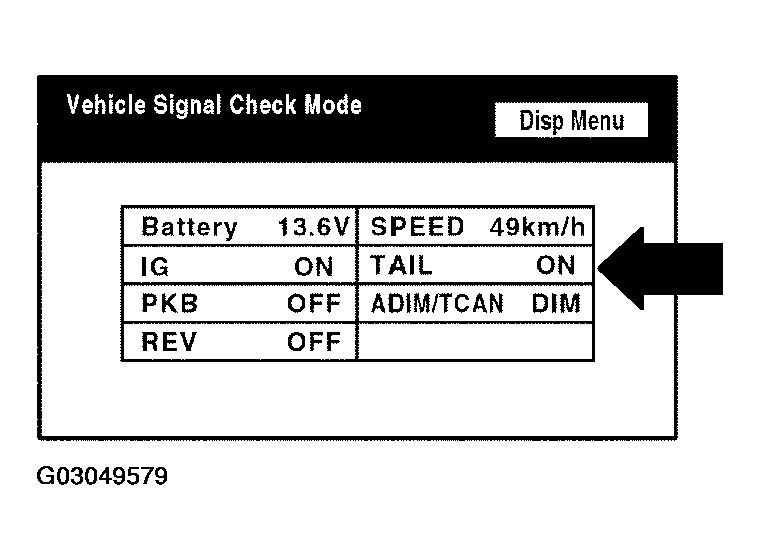

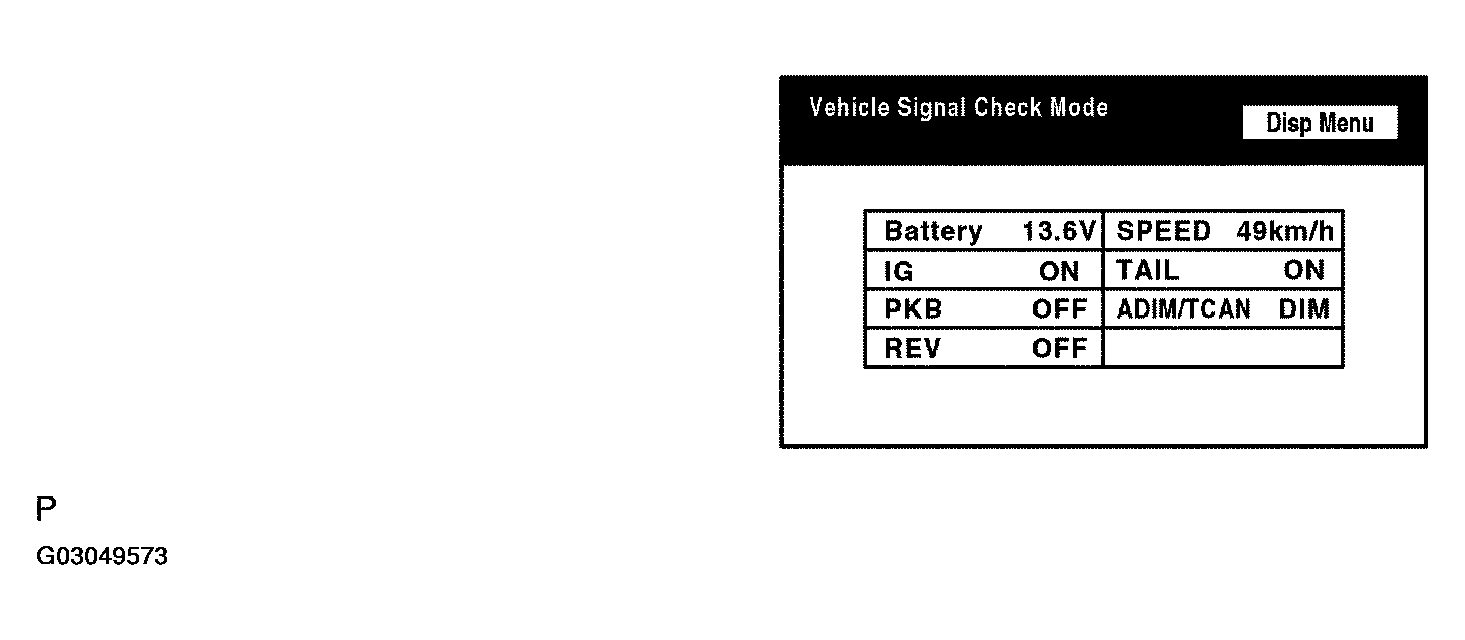

- Vehicle Signal Check Mode Screen
Screen Description
SCREEN DESCRIPTIONName Contents Battery Battery voltage is displayed. PKB Parking brake ON/OFF state is displayed. REV Reverse signal ON/OFF state is displayed. IG IG switch ON/OFF state is displayed. ADIM/TCAN Brightness state DIM (with)/ BRIGHT (without) is displayed. SPEED Vehicle speed is displayed in km/h. TAIL TAIL signal (Head lamp dimmer switch) ON/OFF state is displayed.
HINT:
- Only items sending a vehicle signal will be displayed.
- This screen is updated once per second when input signals to the vehicle are changed.
- Vehicle Signal Check Mode Screen
- NAVIGATION CHECK

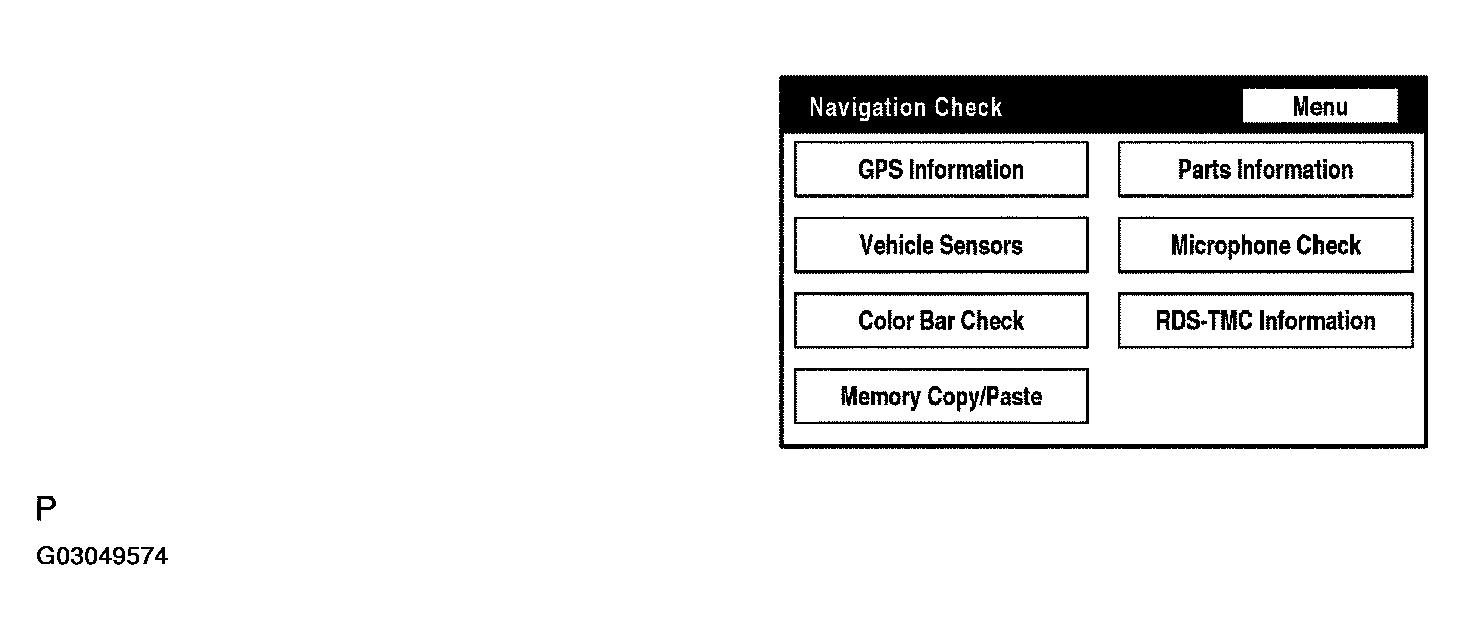

- Navigation Check Screen
HINT:
Each item is grayed out or not displayed based on the device settings.

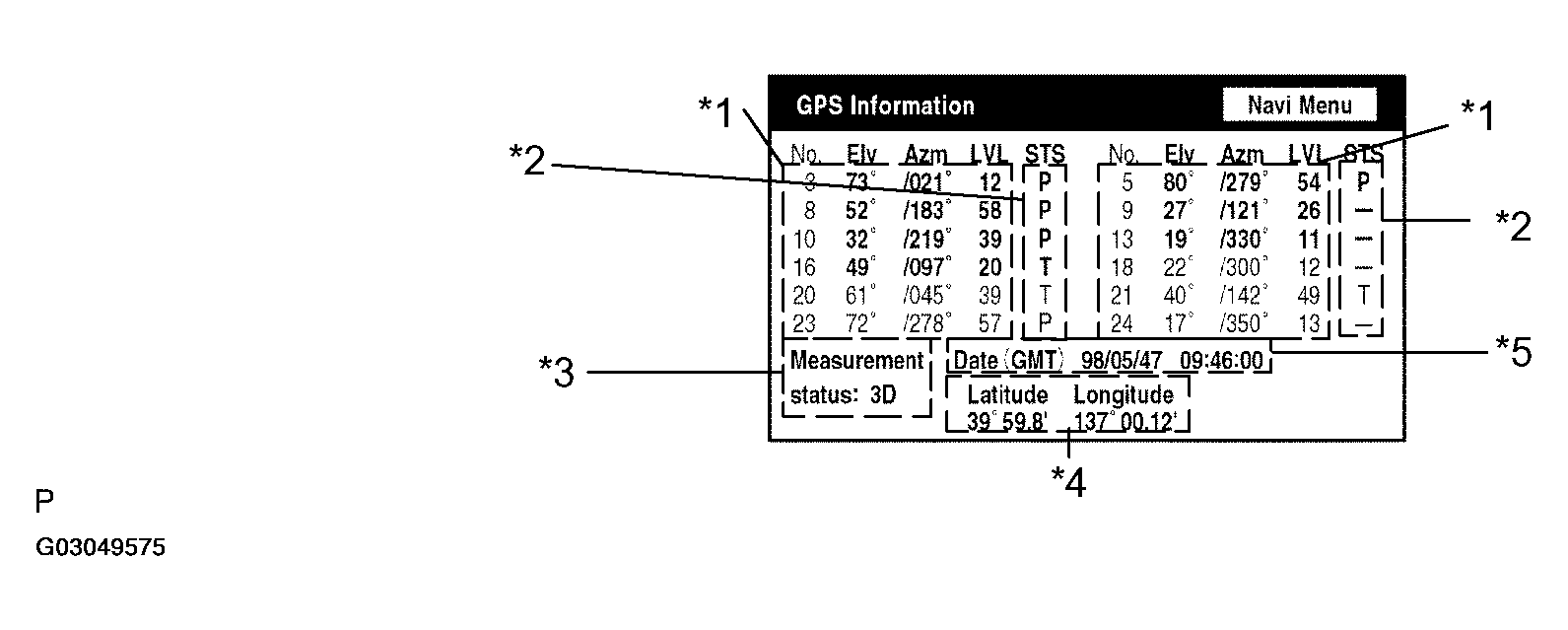

- GPS information Screen
Satellite information/*1
Information from a maximum of 12 satellites is displayed on the screen. This information includes the target GPS satellite number, elevation angle, direction and signal level.
Receiving condition/*2
(DENSO model)
Receiving condition (DENSO MODEL)Display Contents T The system is receiving a GPS signal, but is not using it for location. P The system is using the GPS signal for location. - The system cannot receive a GPS signal. (AISIN AW Model)
RECEIVING CONDITION (AISIN AW MODEL)Display Contents 01H The system cannot receive a GPS signal. 02H The system is tracing a satellite. 03H The system is receiving a GPS signal, but is not using it for location. 04H The system is using the GPS signal for location. Measurement information/*3
RECEIVING CONDITION (MEASUREMENT INFORMATION)Display Contents 2D 2-dimensional location method is being used. 3D 3-dimensional location method is being used. NG Location data cannot be used. Error Reception error has occurred. - Any other state. Position information/*4
RECEIVING CONDITION (POSITION INFORMATION/*4)Display Contents Position Latitude and longitude information on the current position is displayed. Date information/*5
RECEIVING CONDITION (DATE INFORMATION/*5)Display Contents Date The date/time information obtained from GPS signal is displayed in Greenwich mean time (GMT). The last 4 digits are displayed. - Vehicle Sensors Screen

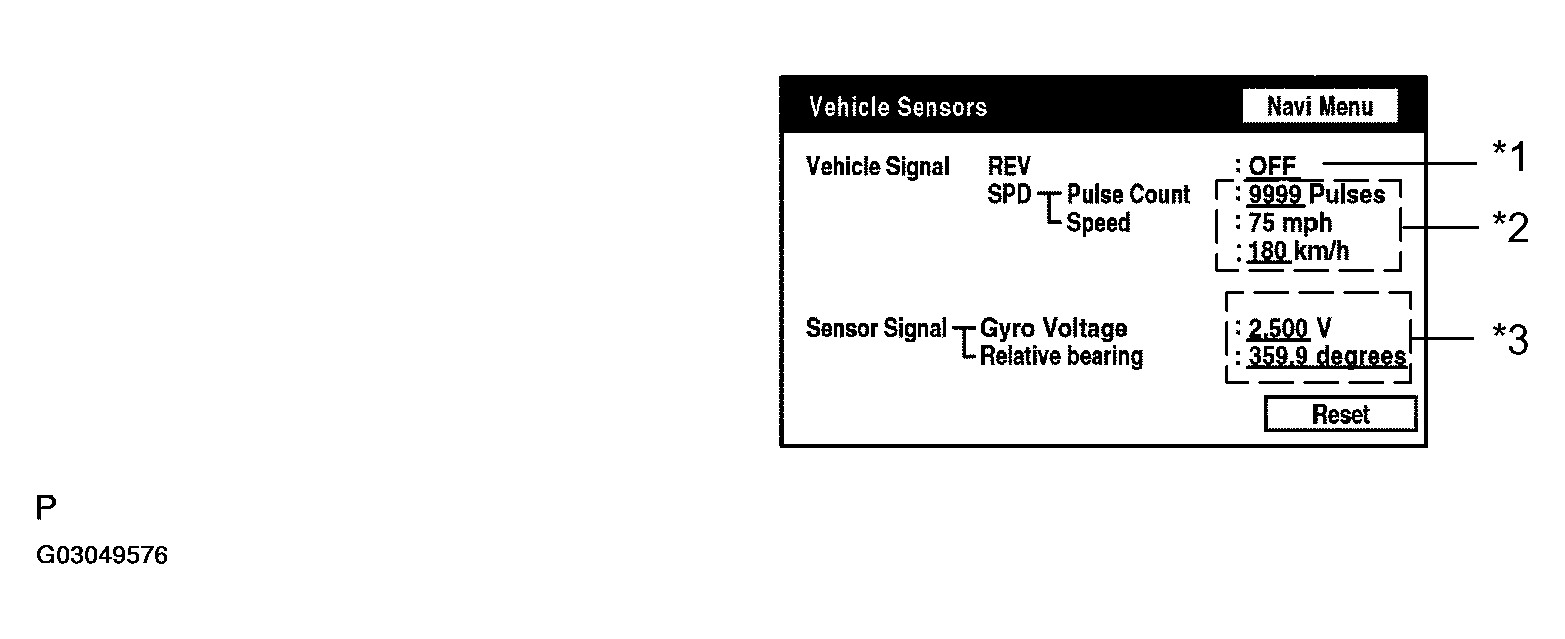

Vehicle signal
VEHICLE SIGNAL SPECIFICATIONDisplay Contents REV/*1 REV signal ON/OFF state is displayed. SPD/*2 SPD signal condition is displayed. Sensor signal
SENSOR SIGNAL SPECIFICATIONDisplay Contents Gyro sensor/*3 Gyro sensor output condition is displayed (when the vehicle runs straight or is stationary, the voltage is approximately 2.5 V). HINT:
Signals are updated once per second only when vehicle sensor signals are changed.

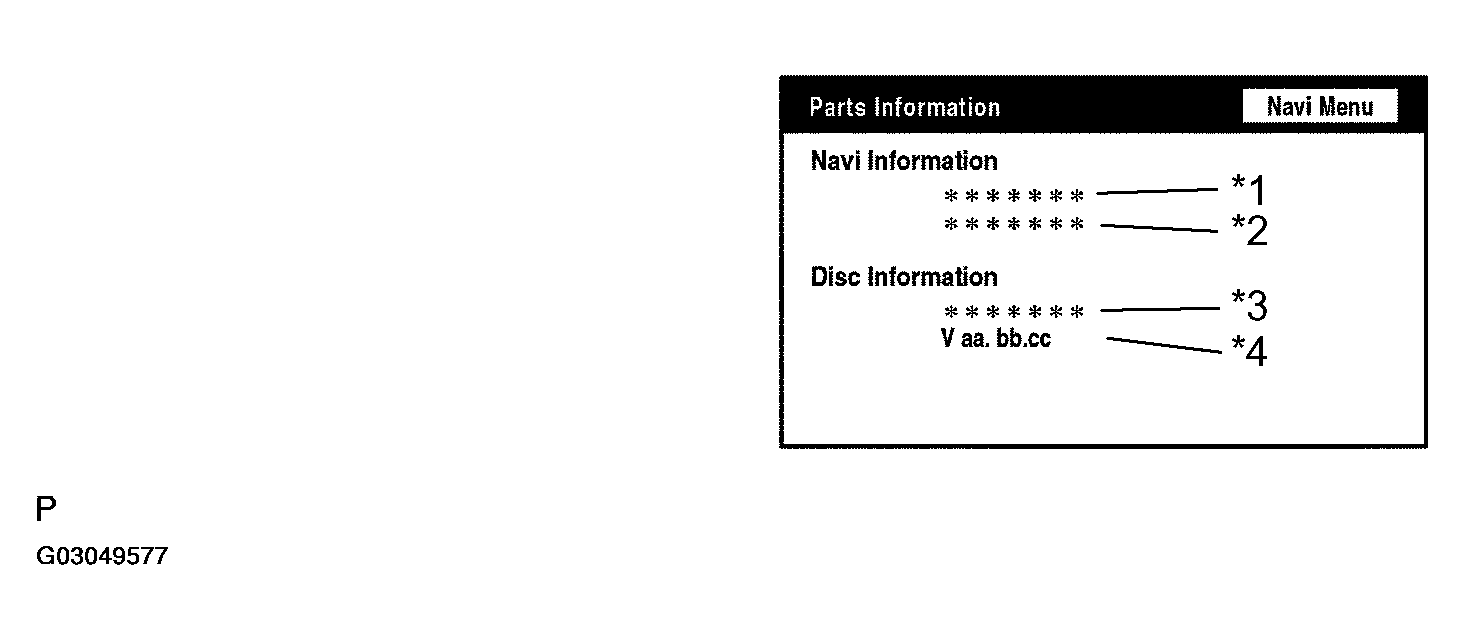

- Parts Information Screen
Screen description

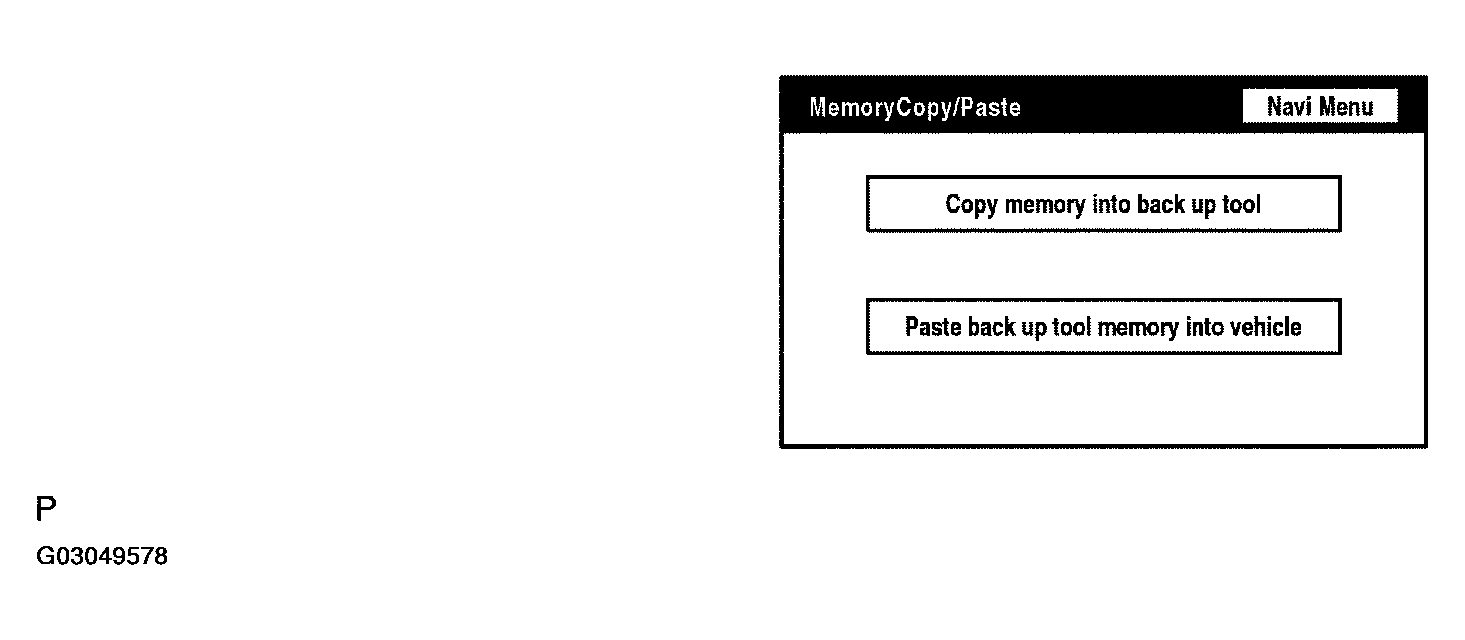

SCREEN DESCRIPTIONDisplay Contents Navigation Manufacturer/*1 Radio and navigation assy manufacturer is displayed. Navigation Version No./*2 Radio and navigation assy version is displayed. Disc Manufacturer/*3 Map disc manufacturer is displayed. Disc Version No./*4 Map disc version is displayed. - Memory Copy/Paste Screen
HINT:
This function cannot be used.
- Navigation Check Screen
