Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

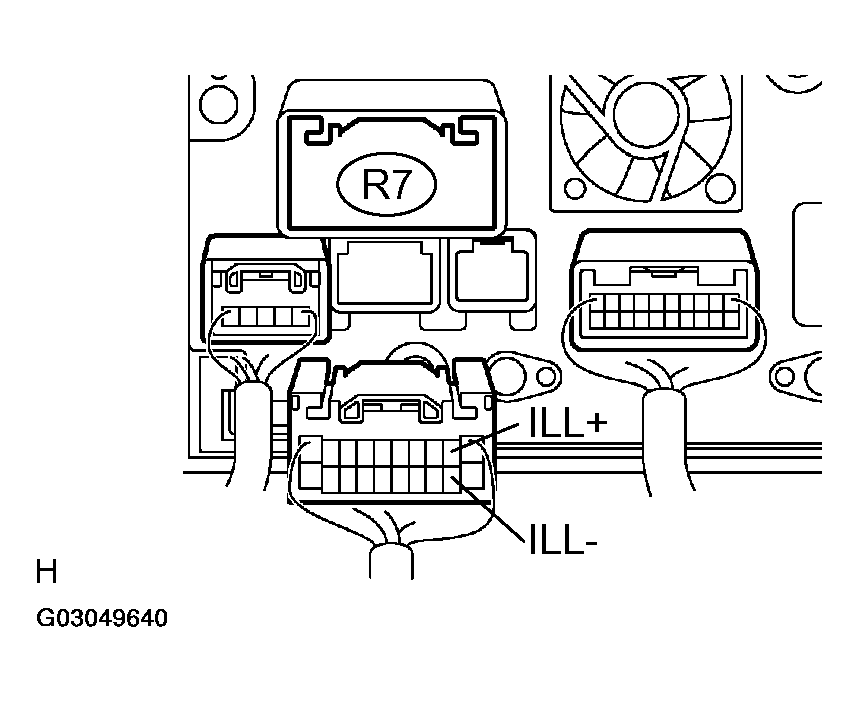

- INSPECT RADIO AND NAVIGATION ASSY (ILL+, ILL-)
- Disconnect the radio and navigation assy connector R7.
- Measure the resistance according to the value(s) in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition ILL- - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition ILL+ - ILL- Light control switch ON 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
