Display Check Mode (Vehicle Signal Check)

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the vehicle signal status input to the radio and navigation assy.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Display Check" from the "Diagnosis MENU" screen.

Fig 1: Identifying Display (Display Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Vehicle Signal Check" from the "Display Check" screen.

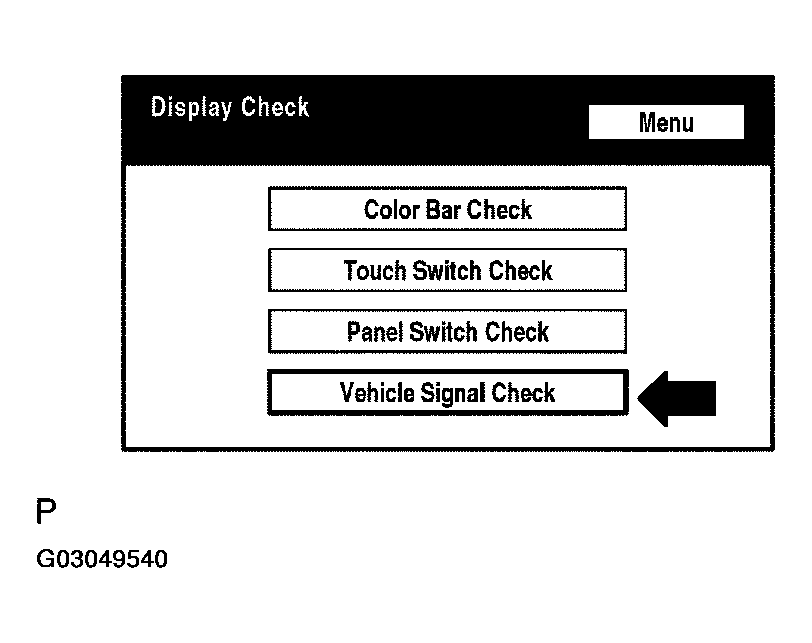

Fig 2: Identifying Display (Vehicle Signal Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
HINT:
- Only conditions having inputs are displayed.
- This screen is updated once per second when input signals to the vehicle are changed.

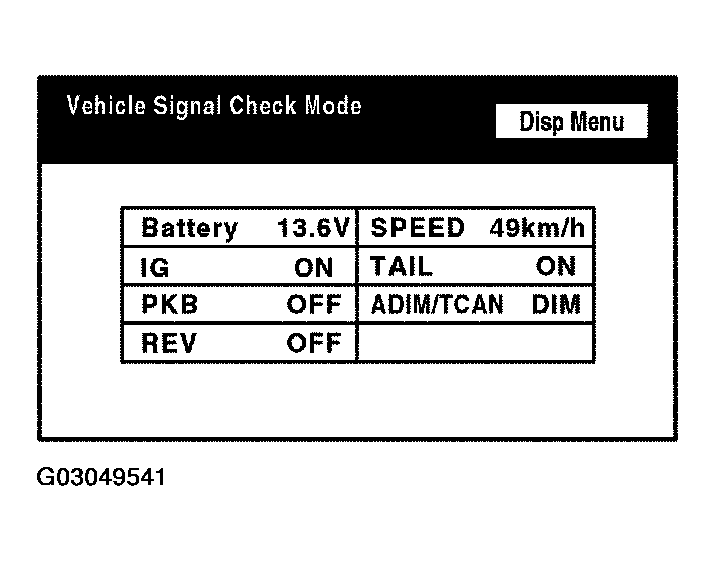

Fig 3: Identifying Display (Vehicle Signal Check Mode)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
