Navigation Check Mode (Parts Information)

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode displays product information on the radio and navigation assy and discs.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

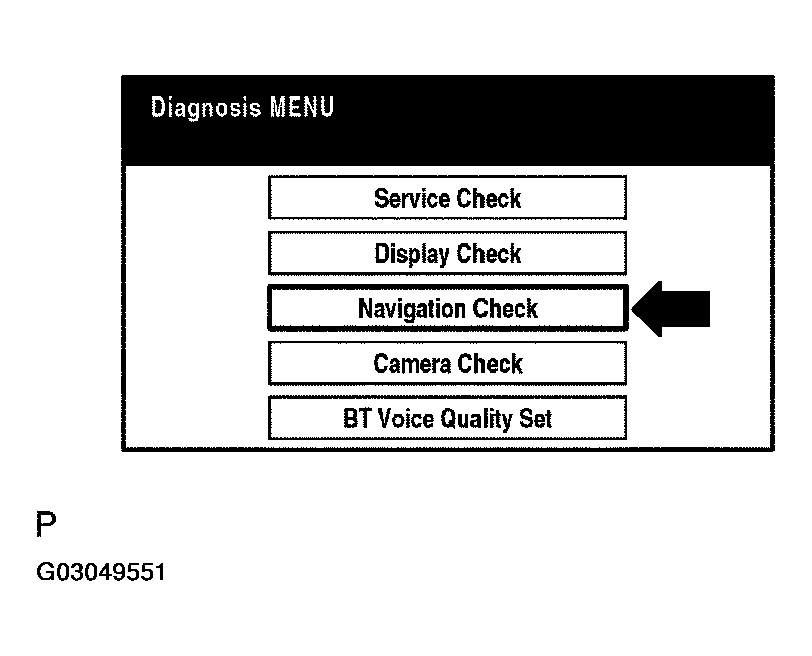

Select "Navigation Check" from the "Diagnosis MENU" screen.

Fig 1: Identifying Display (Navigation Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

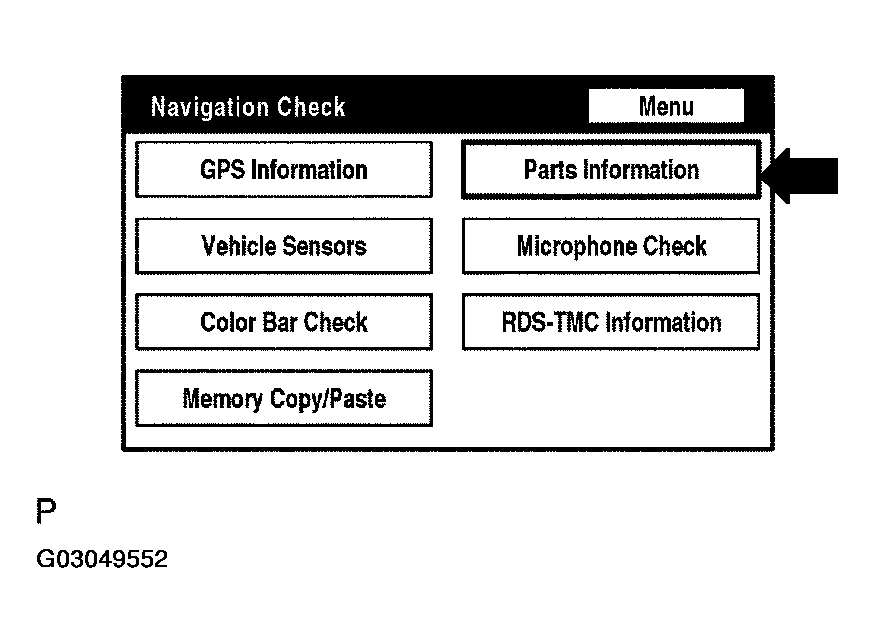

Select "Parts Information" from the "Navigation Check" screen.

Fig 2: Identifying Display (Parts Information)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

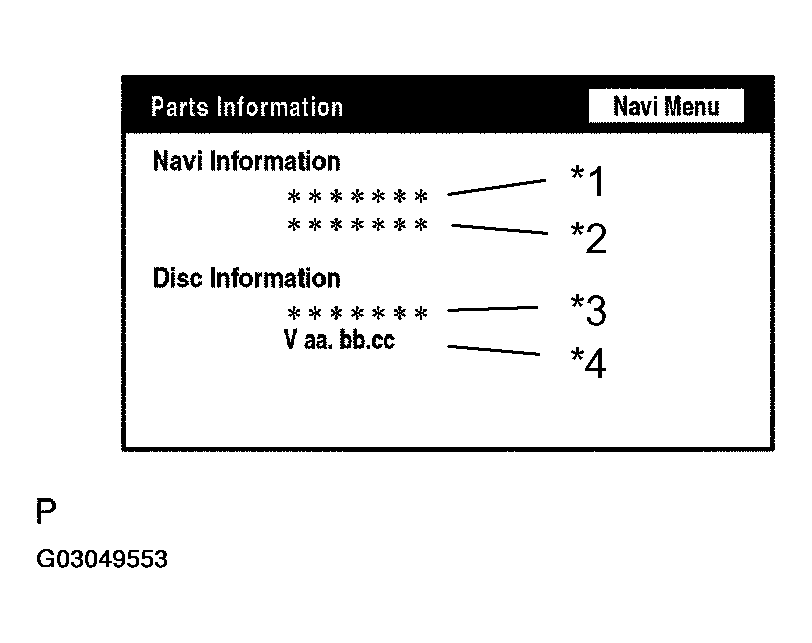

Check the navigation and disc information when the "Parts Information" screen is displayed.

Fig 3: Identifying Display (Parts Information)

DISPLAY SPECIFICATION

Display	Contents
Navigation Manufacturer/*1	Radio and navigation assy manufacturer name is displayed.
Navigation Version/*2	Radio and navigation assy version is displayed.
Disc Manufacturer/*3	Map disc manufacturer is displayed.
Disc Version/*4	Map disc version is displayed.
