Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

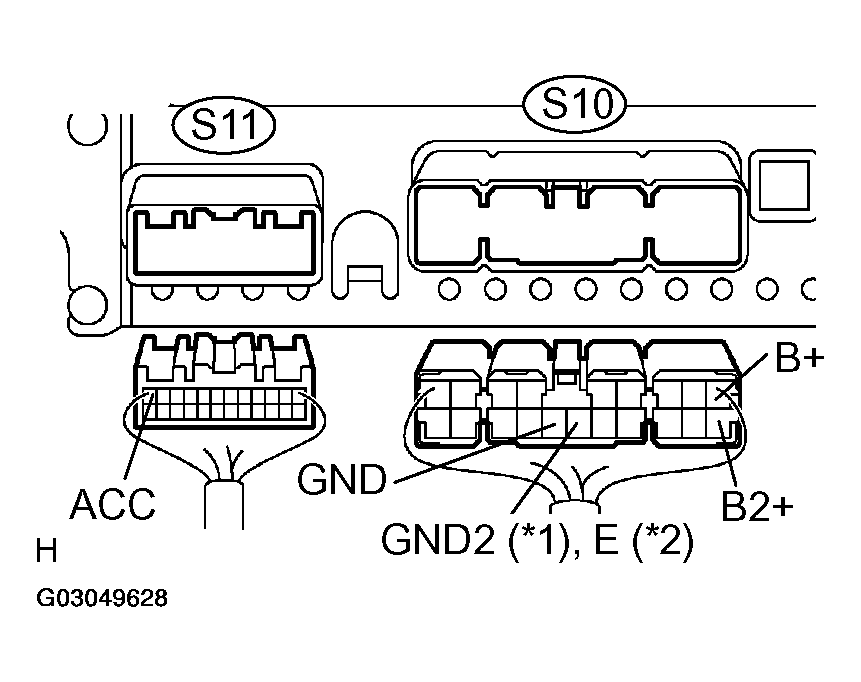

- INSPECT STEREO COMPONENT AMPLIFIER ASSY (B+, B2+, ACC, GND, GND2/E)
- Disconnect the stereo component amplifier assy S10 and S11 connectors.
- Measure the resistance according to the value(s) in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition GND - Body ground Always Below 1 Ω GND2 ((1)), E ((2)) - Body ground Always Below 1 Ω (1) *1: Coupe (2) *2: Convertible - Measure the voltage according to the value(s) in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition B+ - GND Always 10 to 14 V B2+ - GND Always 10 to 14 V ACC - GND Ignition SW ACC 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE TABLE (SEE PROBLEM SYMPTOMS TABLE or DIAGNOSTIC TROUBLE CODE TABLE )
